SPECIFICATIONS

Description

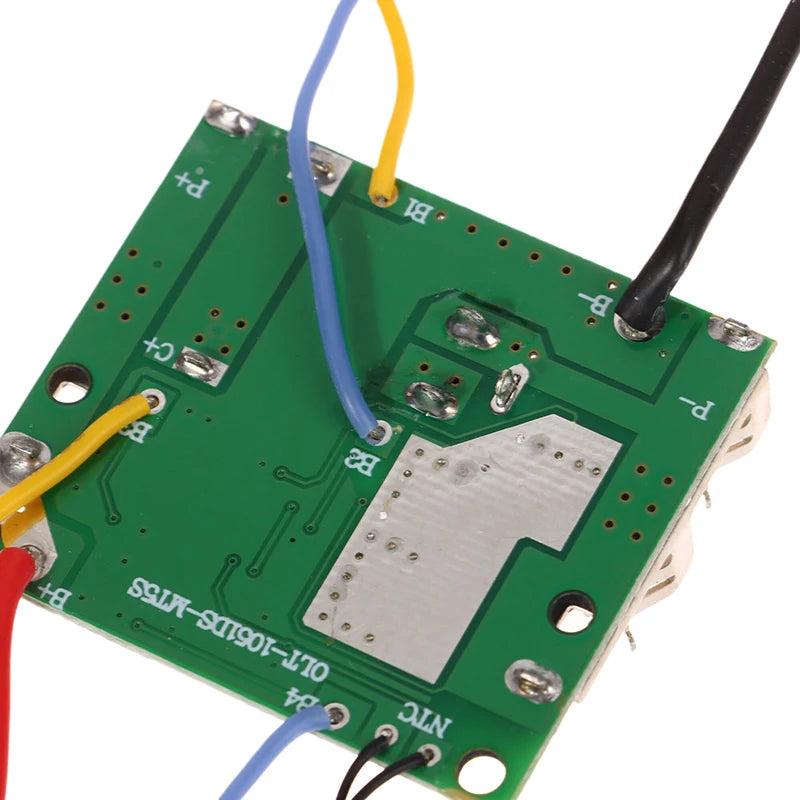

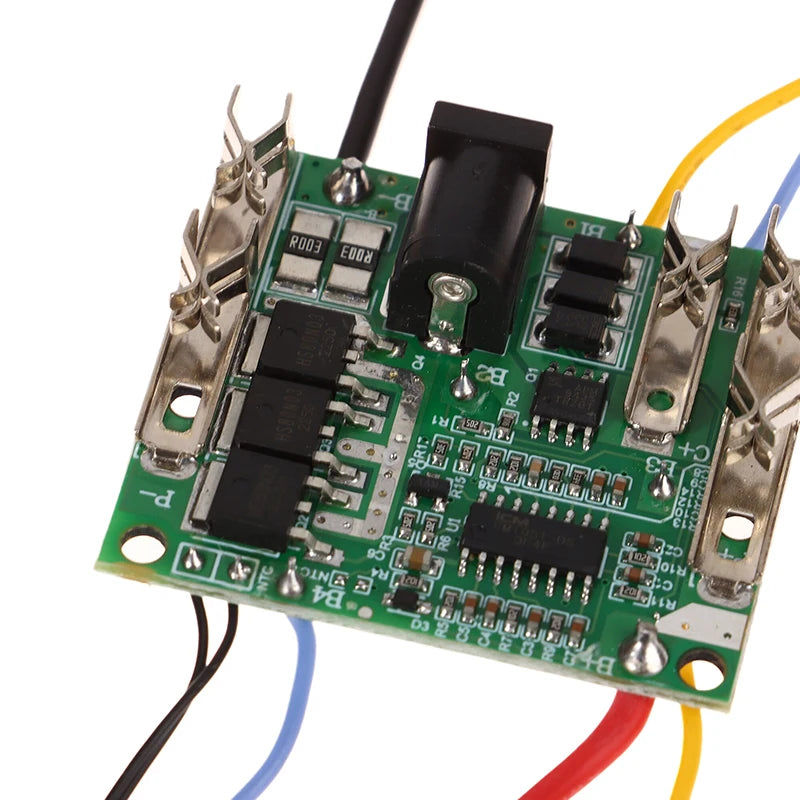

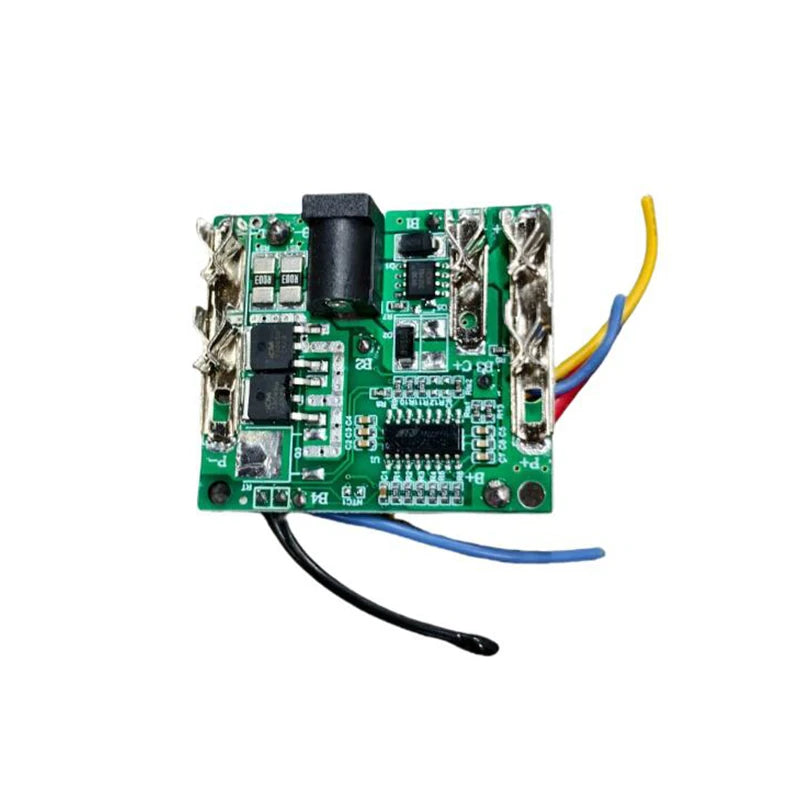

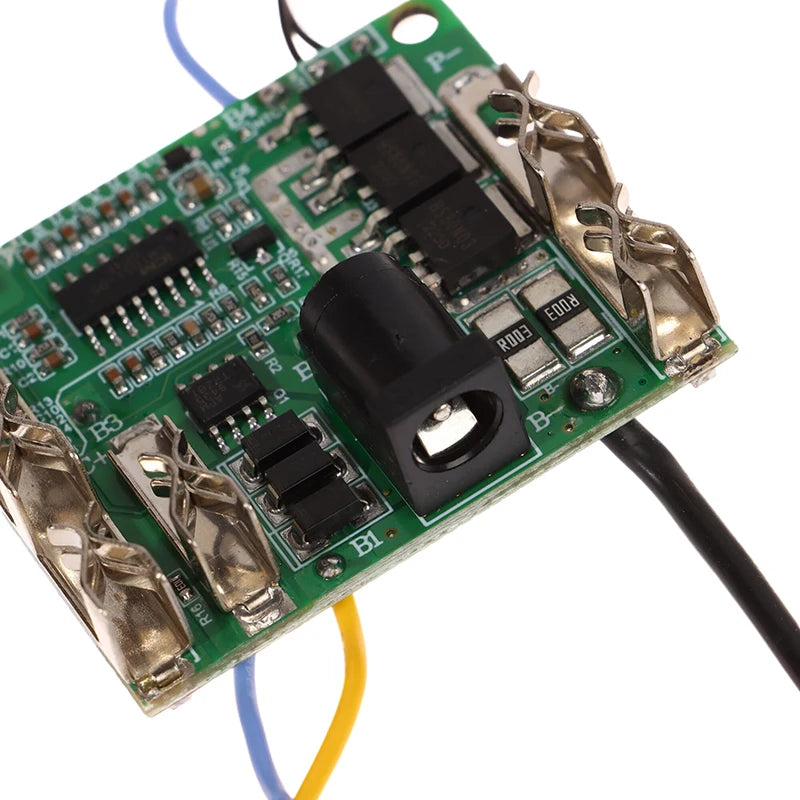

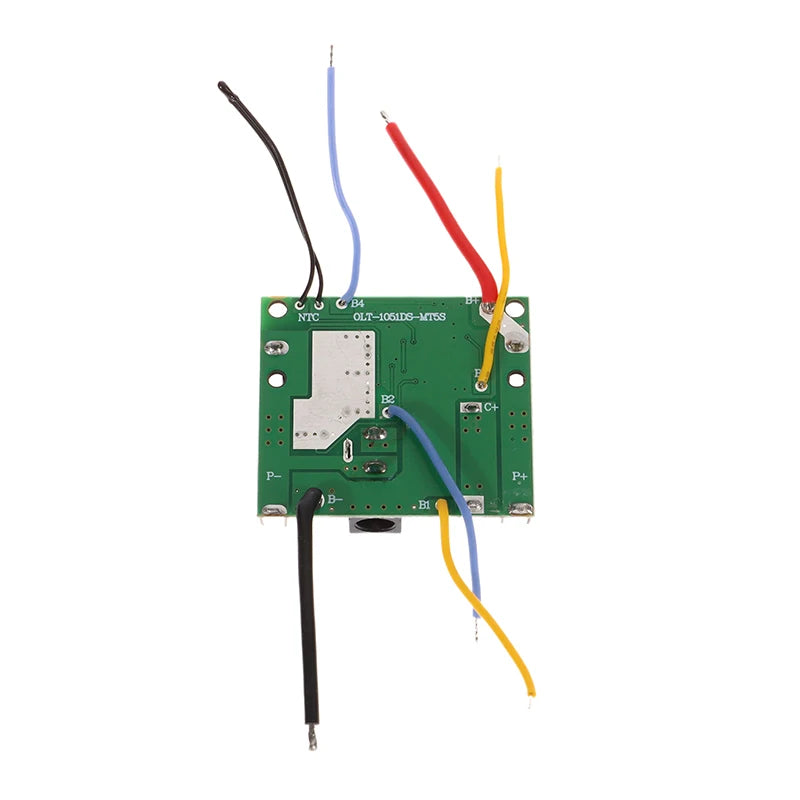

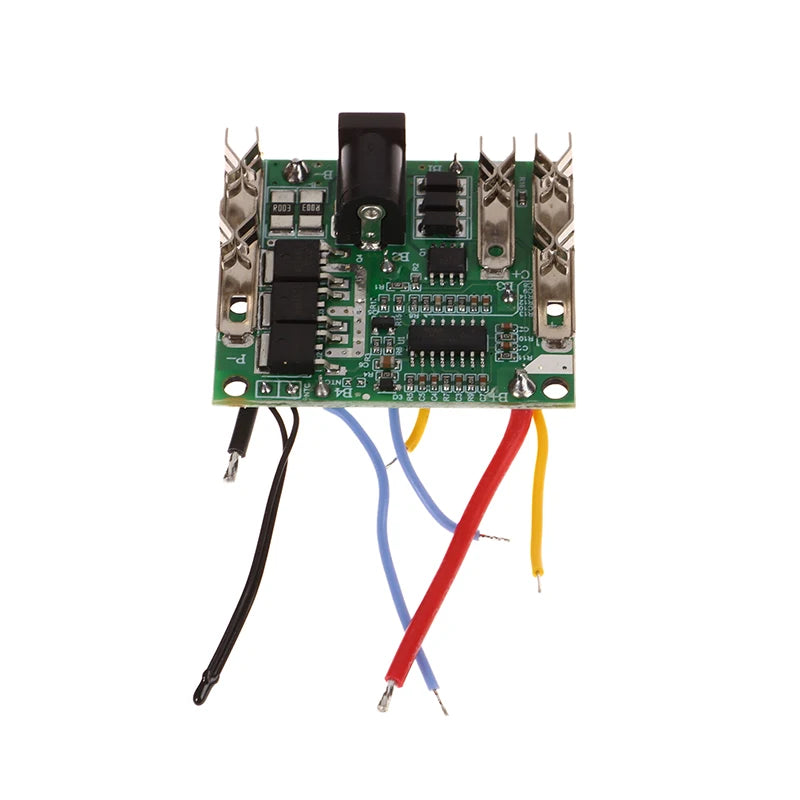

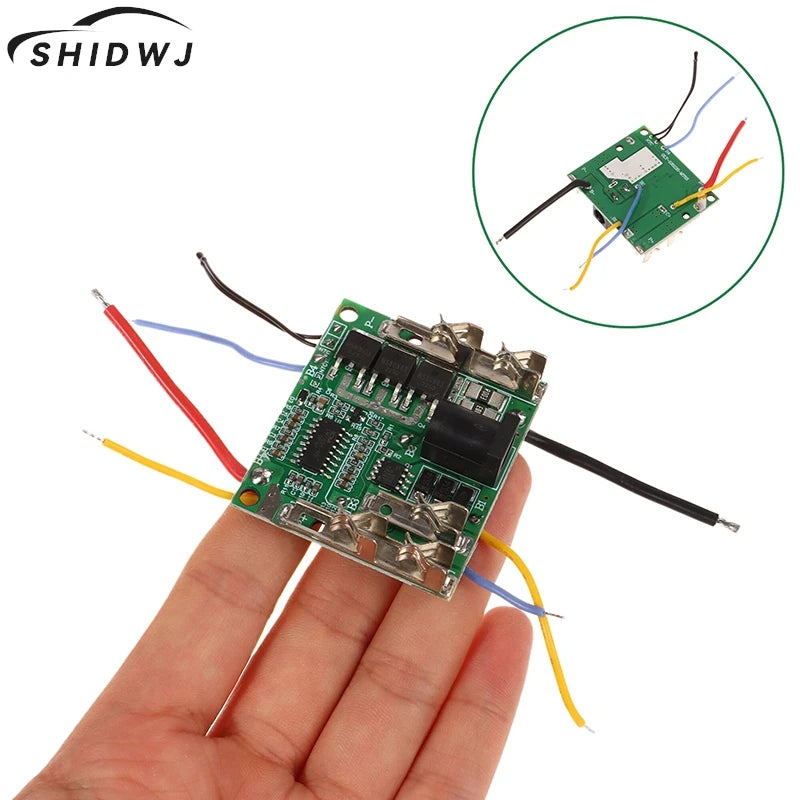

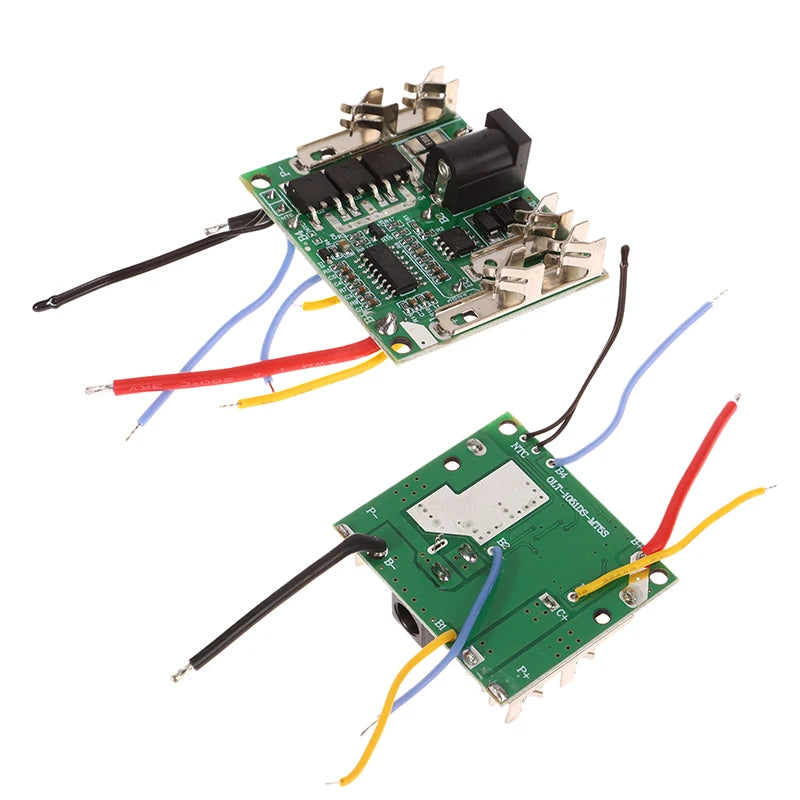

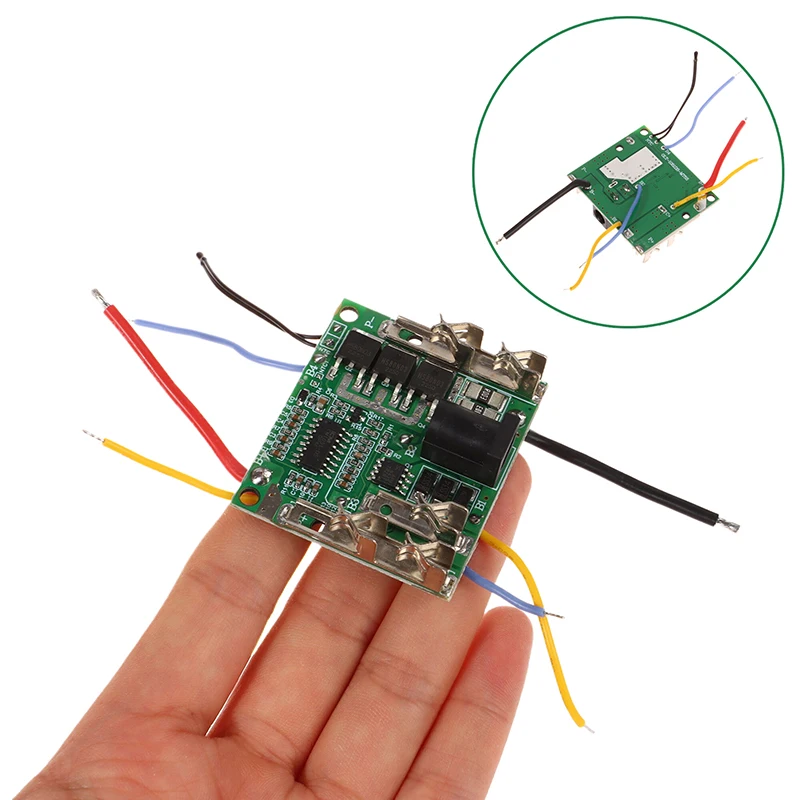

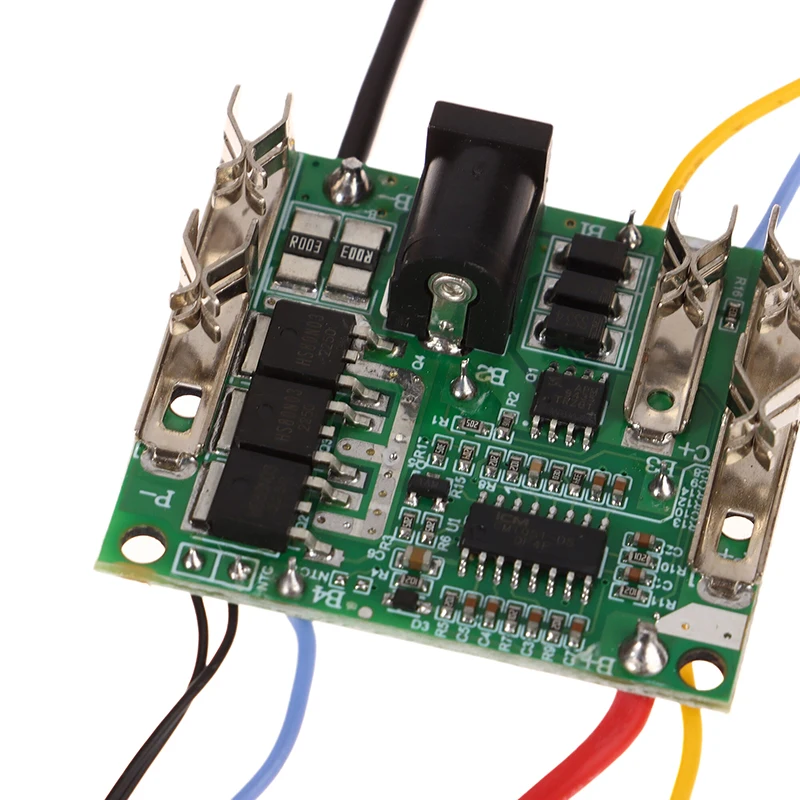

The protective plate is used for Series 5 lithium-ion batteries, mainly for power tools.

It uses an IC dedicated to the 5S lithium battery as a processor to detect the real-time voltage, charge and discharge current and ambient temperature of each battery.

Stable various charge and discharge protection functions, such as overcharge protection, overdischarge protection and short circuit protection.

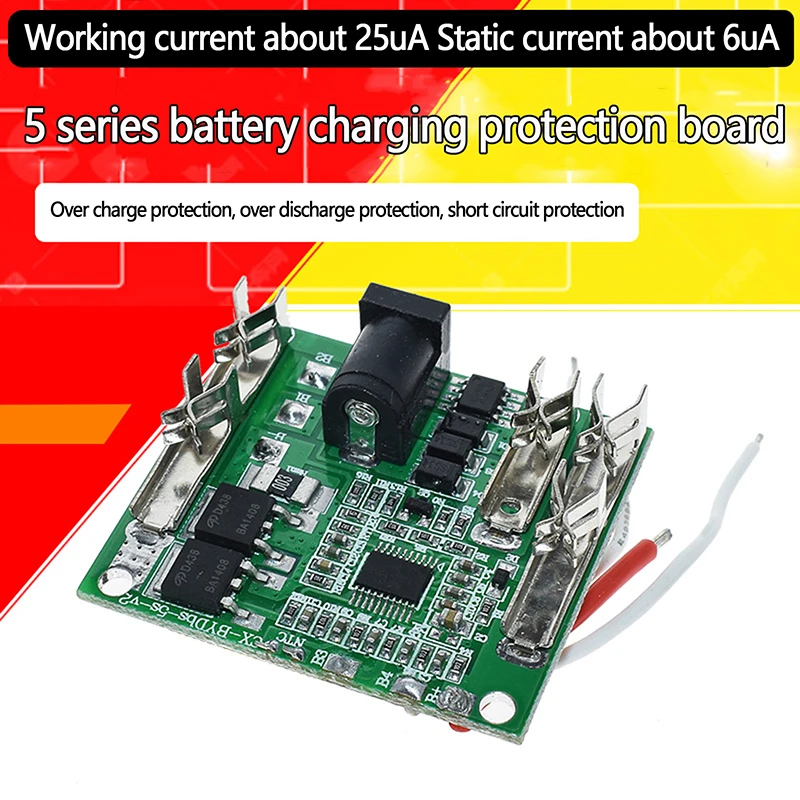

Low power consumption, operating current of about 25uA, static current of about 6uA. Choosing the right protection board and using it properly is essential to extend battery life.

Specifications

Operating voltage: 18V

Charging current: 1~3A

Discharge current: 10A (adjustable)

Overdischarge protection current: 35±10A

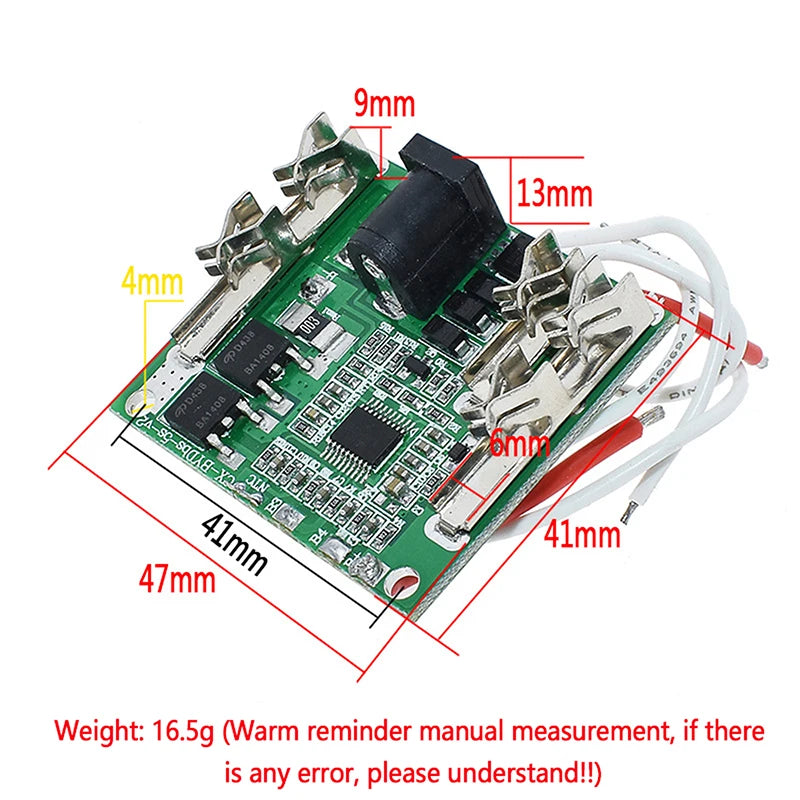

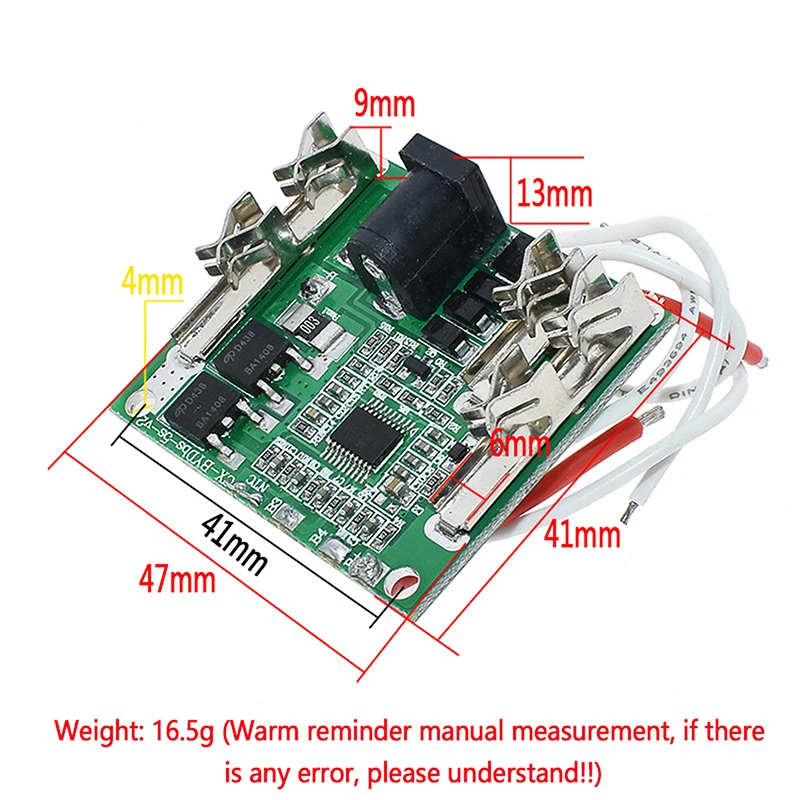

Protection size: 46*40*3.6 (length width)

Materials: Other

Packaging: 1PC

Charging voltage: 21~24V

Applicable battery: lithium iron phosphate, lithium manganese, lithium cobalt, ternary, etc

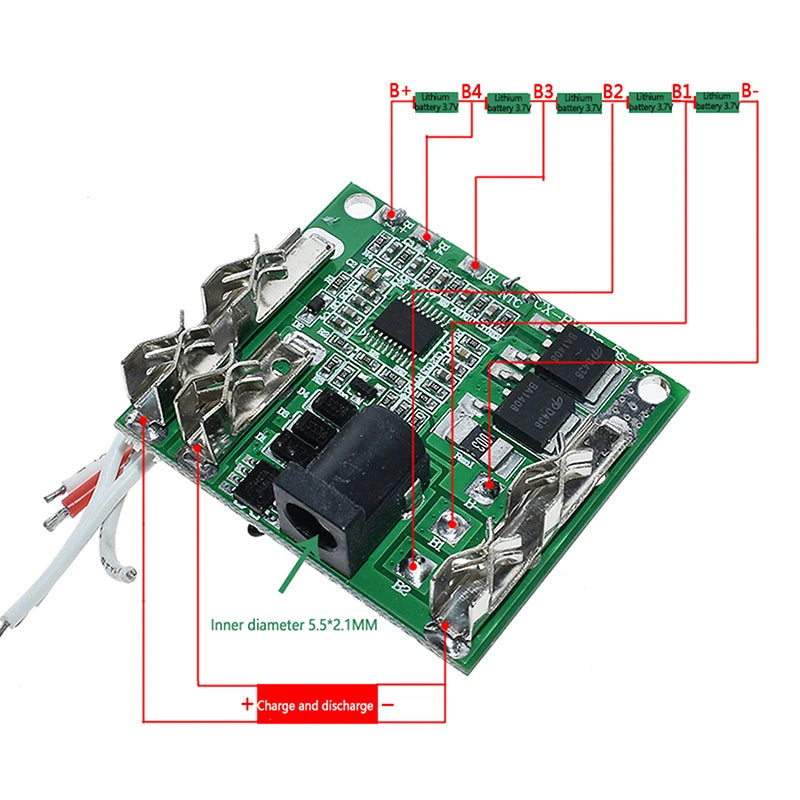

Application: 5 series 21V power tools screw knife charging hand drill lithium battery special protection plate

Note:

Due to manual measurement, please allow an error of 1-3mm. Please ensure that you do not mind before bidding.

Due to the differences between different monitors, the images may not reflect the actual color of the item. Please refer to the actual image received. Thank you very much.

The power module is a kind of electronic components, please do not have electronic professional knowledge, otherwise it will be easily damaged!
