0.6mm Ultra-Fine Automotive Crimp Pins – OEM 8100-4030 / 8100-4027 | 50pcs Male & Female

The OEM 8100-4030 / 8100-4027 are 0.6mm pitch ultra-fine automotive crimp pins (sheath contacts) used in high-density wire harness repair and connector assembly. Sold in 50-piece packs for Male and Female variants, these terminals are compatible with 0.6mm pitch automotive connector housings used in ECU, ABS module, and high-density sensor harnesses.

Key Specifications

About 0.6mm Ultra-Fine Pitch Terminals

0.6mm pitch terminals are used in the highest-density automotive connector systems where space constraints require ultra-fine pitch contacts. These are typically found in ECU, ABS/ESC module, and advanced driver assistance system (ADAS) harnesses where dozens of circuits must be routed through a compact connector. Proper handling and precision tooling are essential for reliable 0.6mm pitch terminal installation.

Why Ultra-Fine Pitch Terminals Fail

0.6mm pitch terminals are particularly susceptible to corrosion from moisture ingress due to their small contact area. Even minor oxidation causes significant contact resistance increases in fine-pitch circuits, triggering ECU communication faults, ABS module errors, or ADAS sensor signal loss. Replacing terminals restores clean contact resistance in high-density circuits.

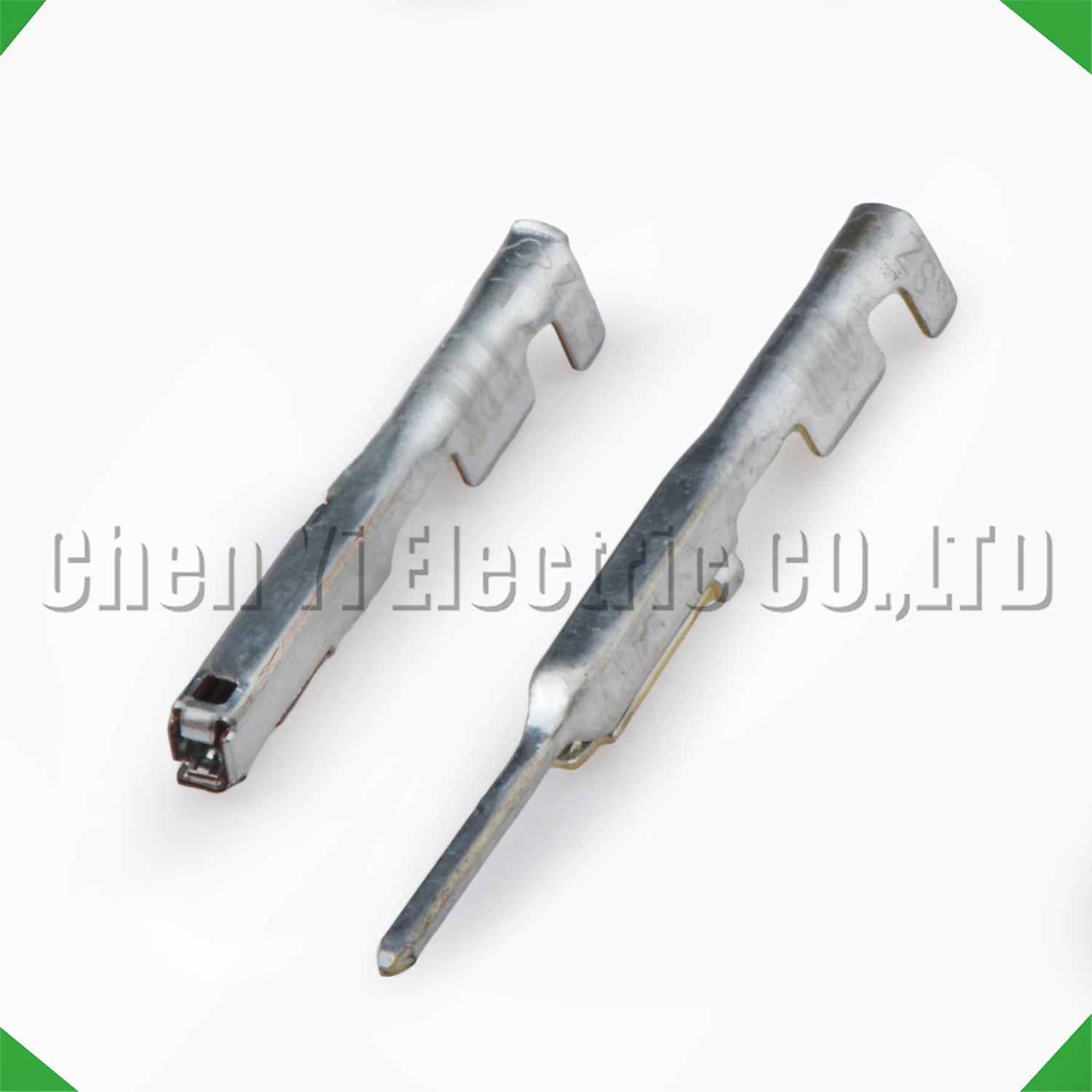

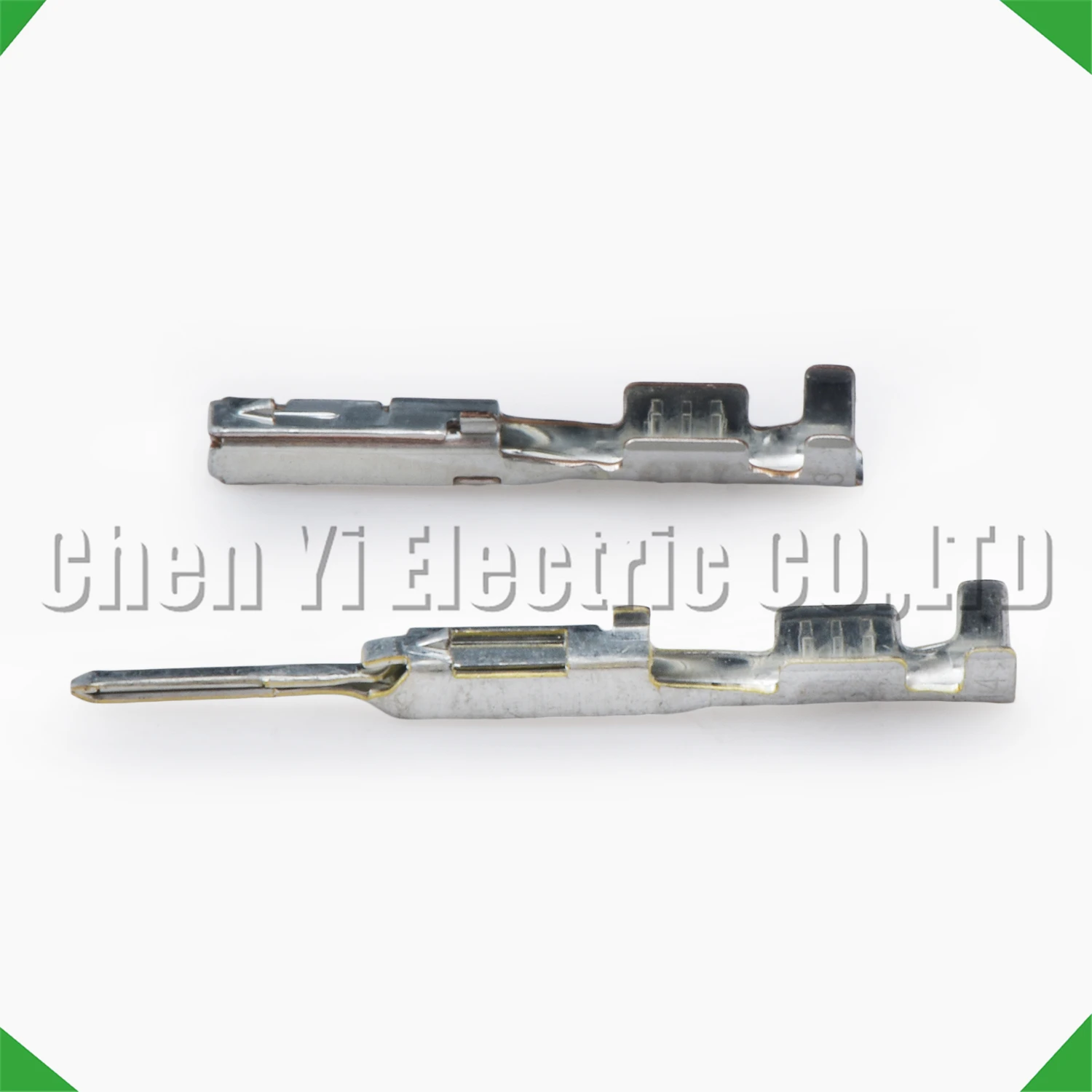

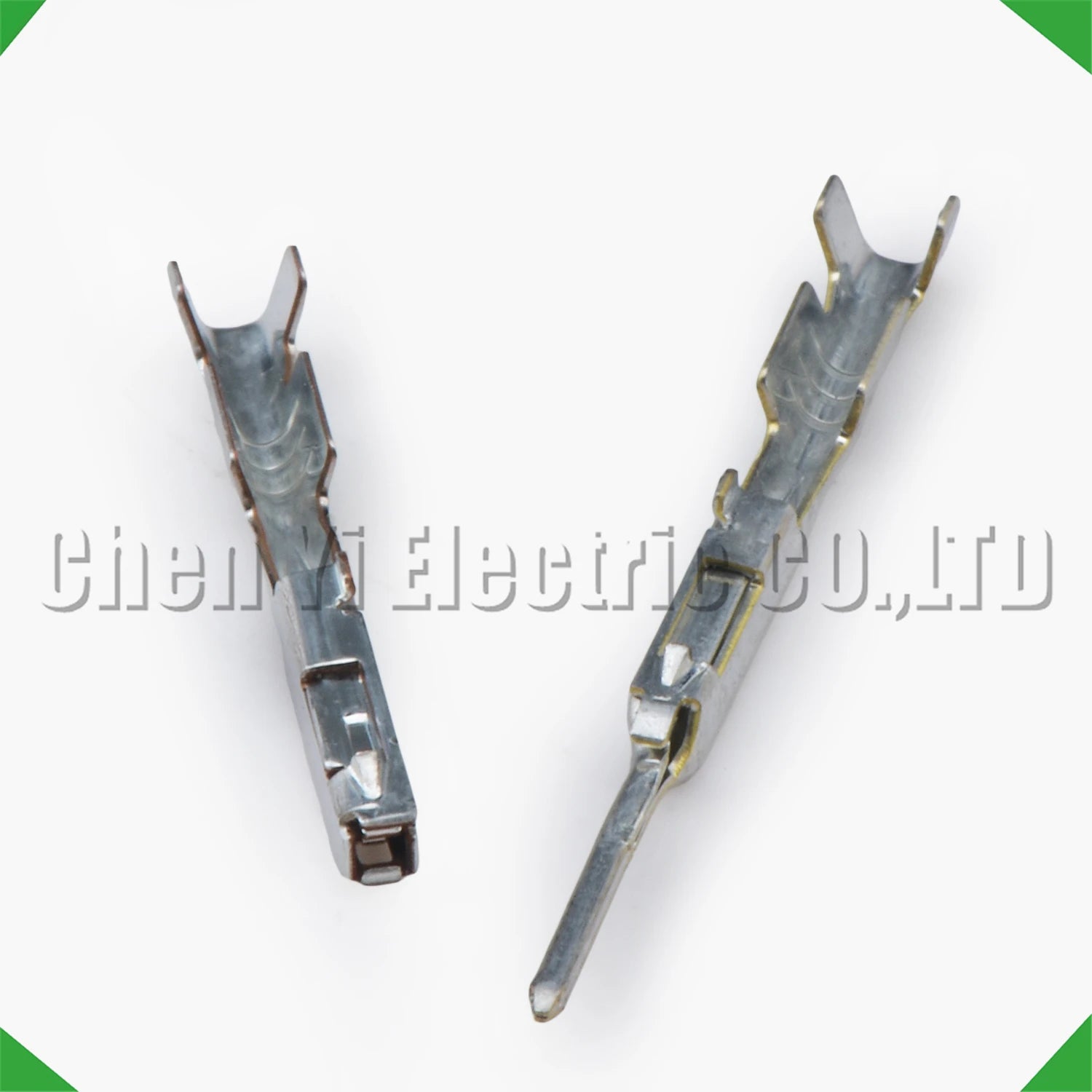

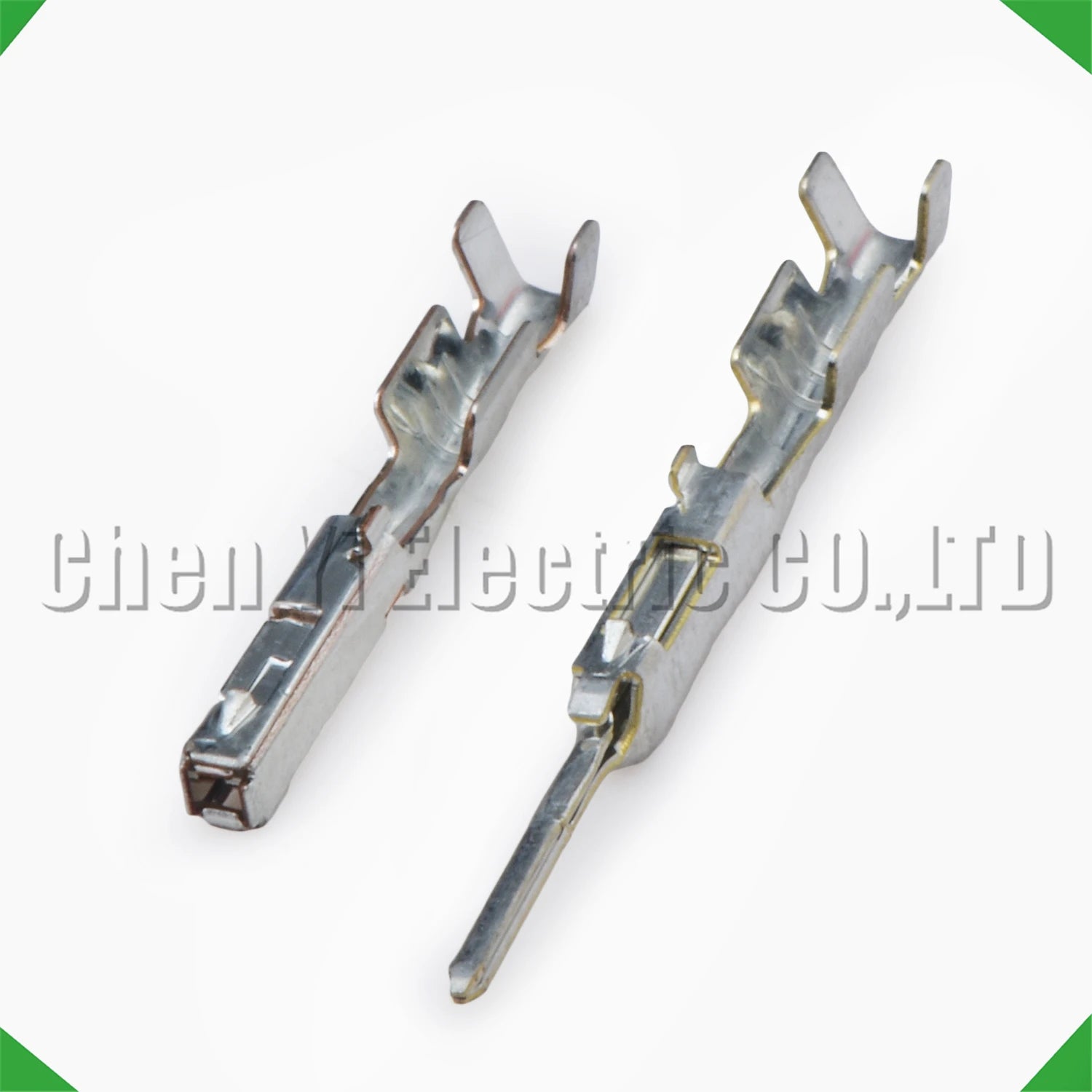

Variant Guide

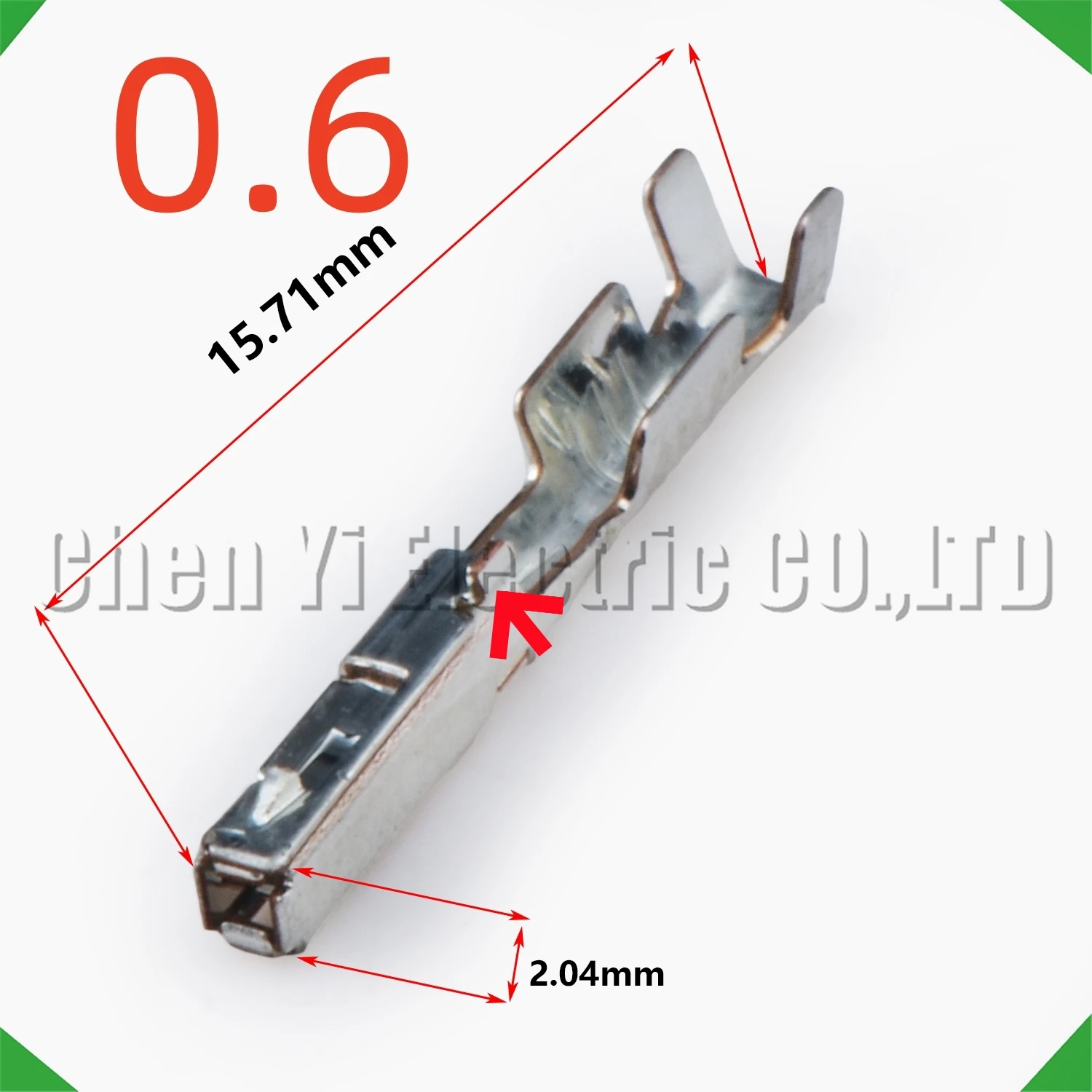

• 50pcs Female – 50x OEM 8100-4030 female crimp pins (socket side)

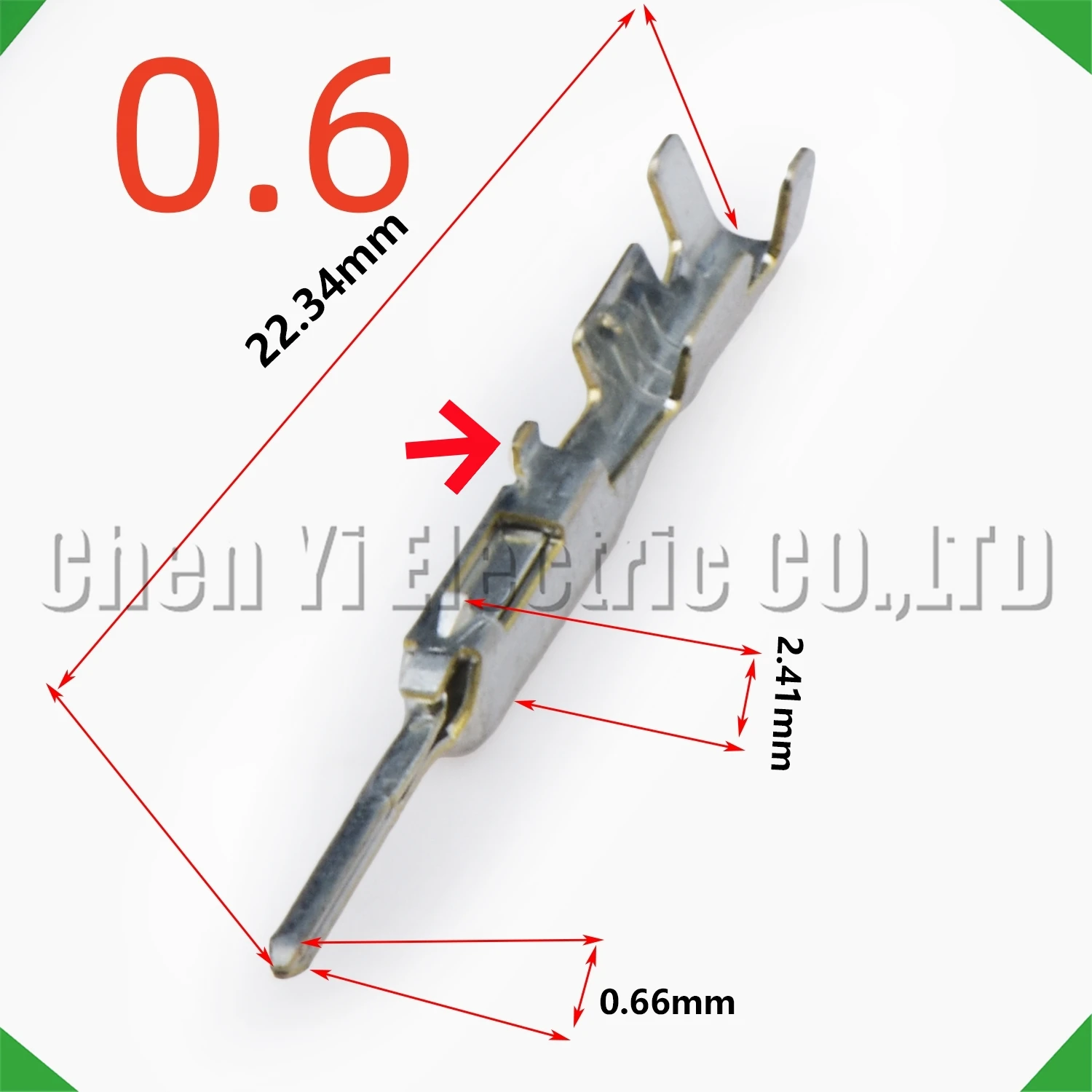

• 50pcs Male – 50x OEM 8100-4027 male crimp pins (plug side)

Installation Notes

• Strip wire insulation to 1–1.5mm only – 0.6mm pitch contacts require ultra-precise stripping
• Use a precision ratchet crimp tool rated for 0.6mm pitch contacts – standard tools will destroy fine-pitch terminals
• Handle terminals with tweezers or anti-static tools to avoid deformation
• Insert terminal into connector housing until the locking tab clicks – use a terminal insertion tool for 0.6mm pitch

Frequently Asked Questions

Q: What connector housings are compatible with OEM 8100-4030 / 8100-4027?
A: These 0.6mm pitch terminals are compatible with high-density automotive connector housings using 0.6mm pitch contacts. Cross-reference your connector housing part number to confirm terminal compatibility.

Q: What wire gauge do 0.6mm pitch terminals accept?
A: 0.6mm pitch terminals typically accept 28–32 AWG (0.05–0.08mm²) wire. Use precision wire strippers designed for ultra-fine gauge wire.

Q: Do I need a special crimp tool?
A: Yes. 0.6mm pitch terminals require a precision crimp tool specifically rated for ultra-fine pitch contacts. Standard automotive crimp tools will crush or deform 0.6mm pitch terminals.

Common Applications

• ECU high-density connector harness repair (0.6mm pitch)
• ABS / ESC module fine-pitch terminal replacement
• ADAS sensor harness re-pinning
• High-density body control module connector repair
