8-Pin Compass & Reversing Light Display Screen Wire Harness Connector – Female OEM

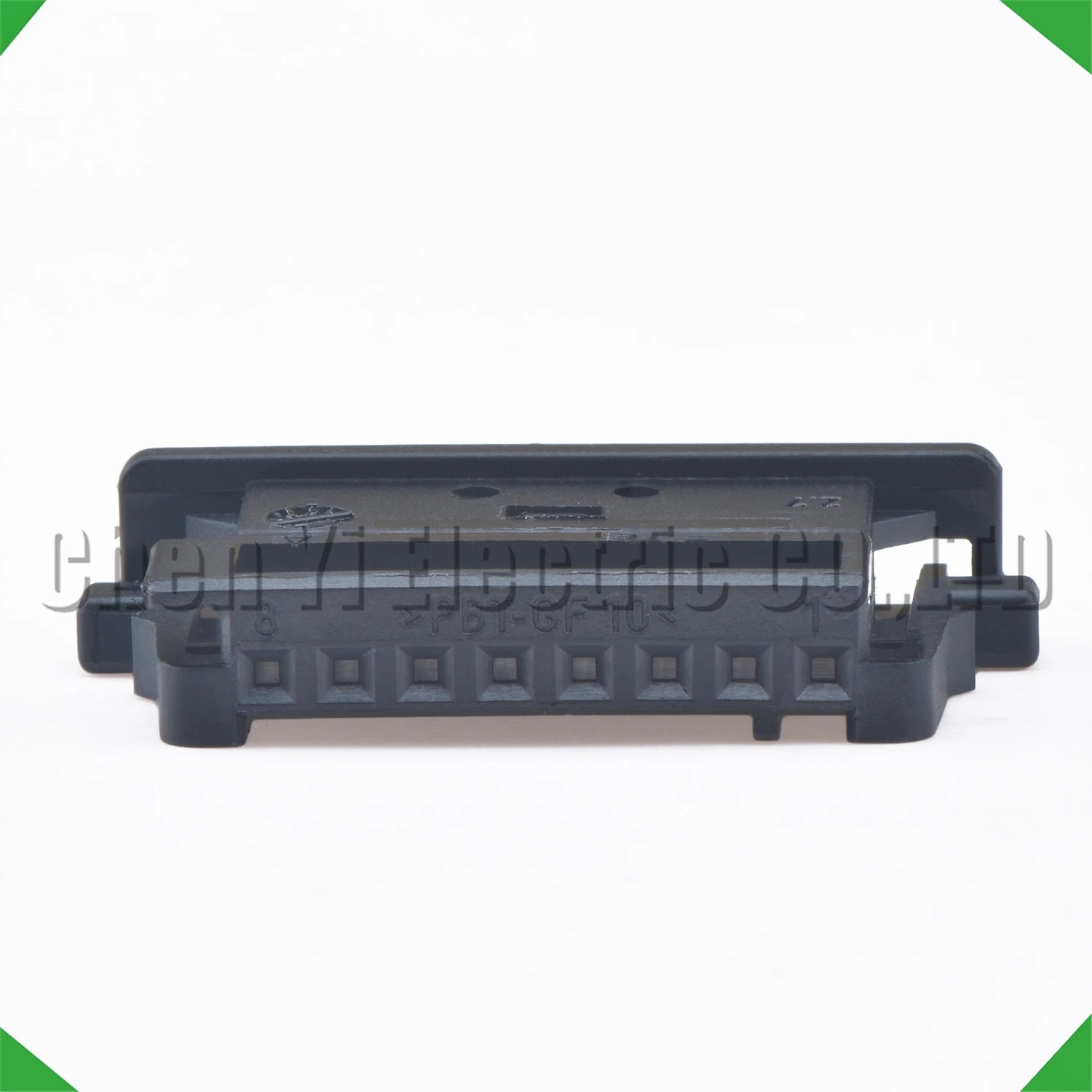

This 8-pin female connector is used in automotive compass module, reversing light, and display screen harnesses. The 8-pin configuration integrates compass sensor data, reverse light trigger, display power, and CAN bus circuits for the rear-view mirror compass display or infotainment reversing screen module. Available bare or with 15cm pre-wired leads.

Key Specifications

Why Display & Compass Connectors Fail

Compass module and display screen connectors are subject to vibration from the dashboard or mirror, heat from the display, and repeated plug/unplug cycles. Terminal oxidation or housing damage causes compass display failures, reversing light trigger signal loss, or display screen blackouts. Replacing the connector restores full compass and display circuit integrity.

Variant Guide

• Female – Bare 8-pin housing with terminals

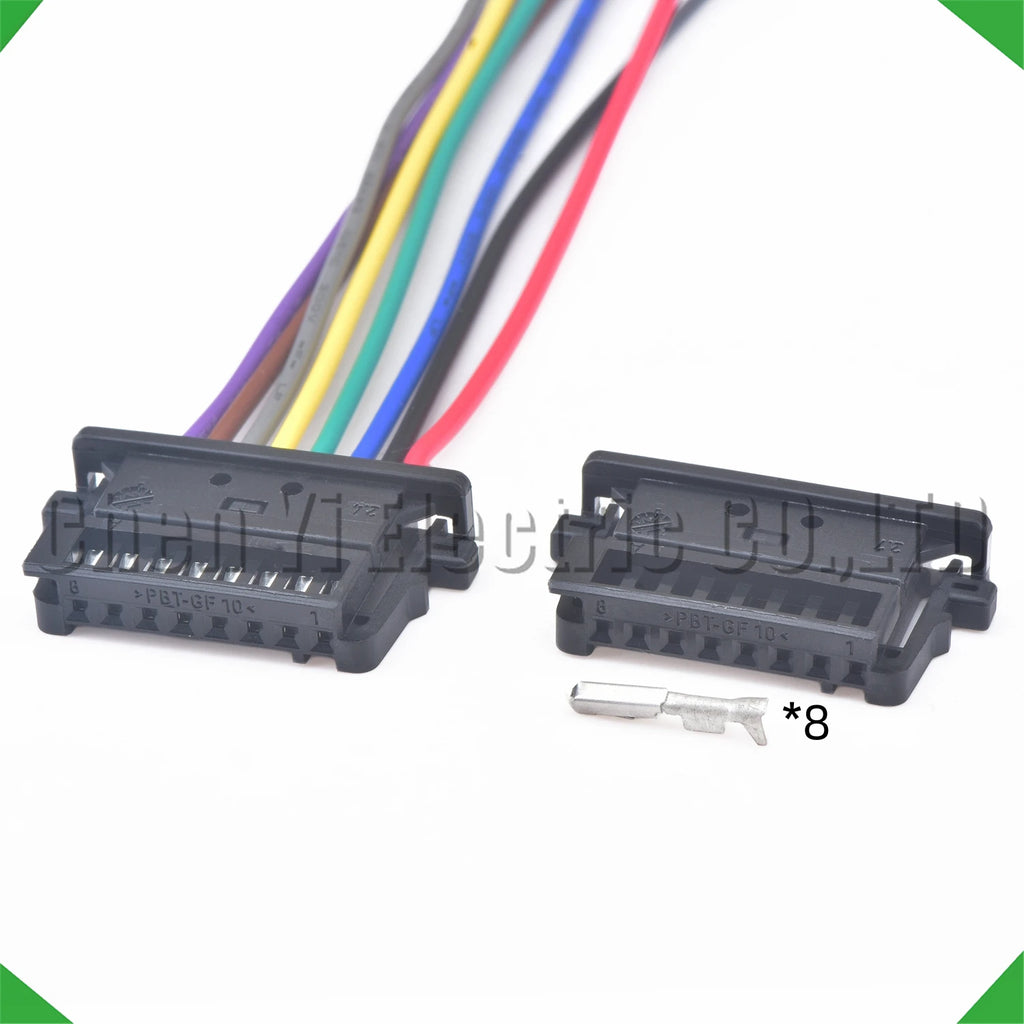

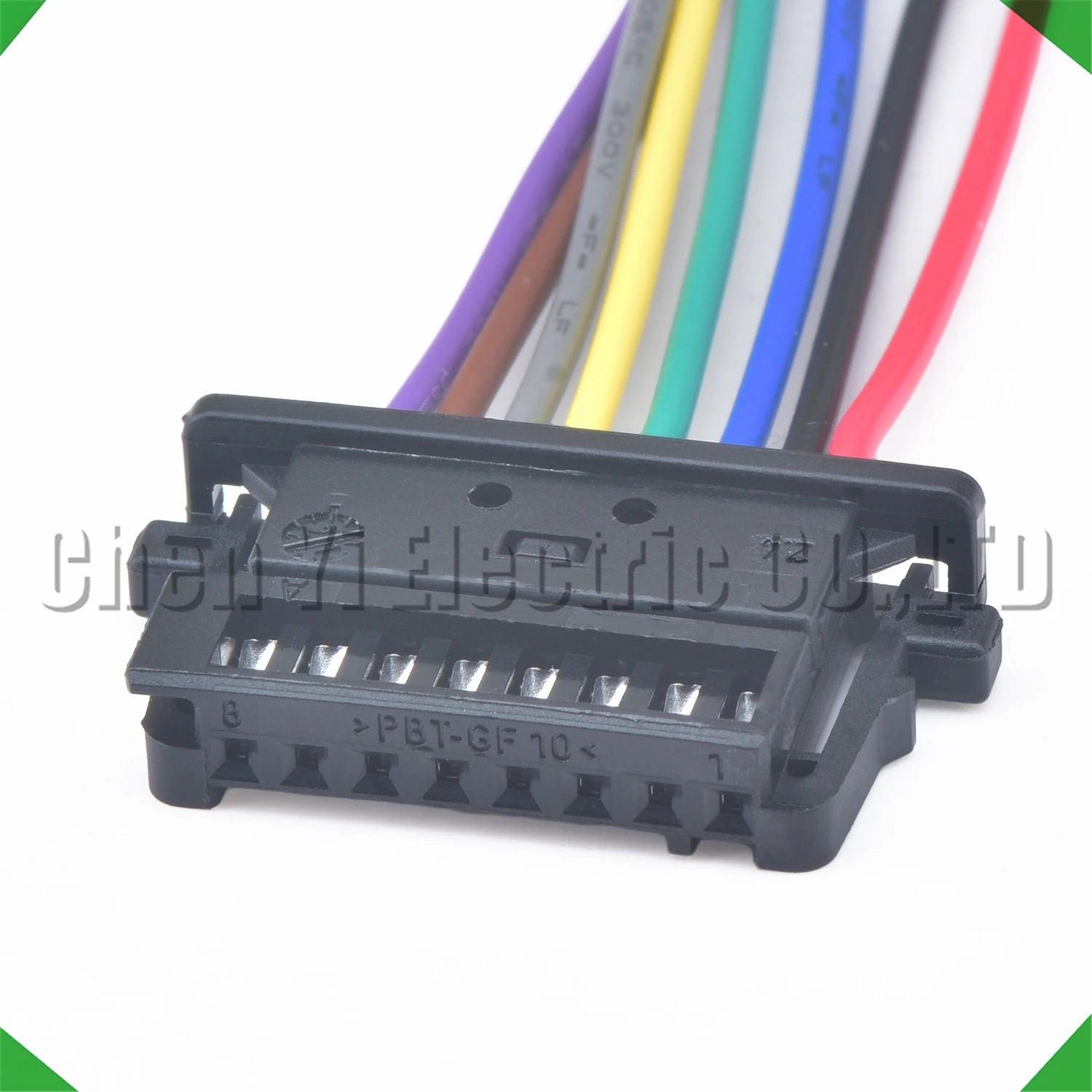

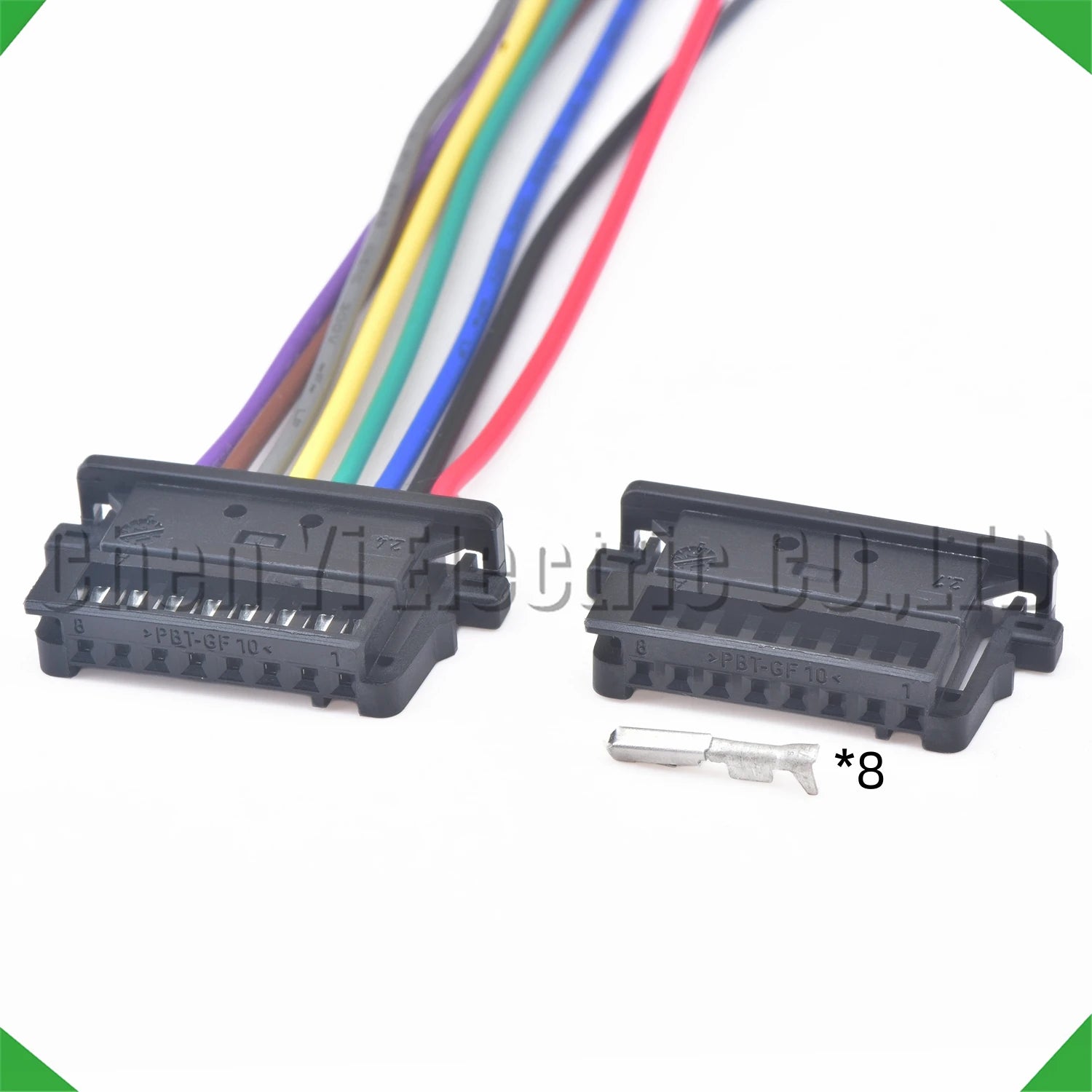

• Female 15CM – Pre-wired with 15cm leads for direct splice-in installation

Installation Steps

1. Disconnect the vehicle battery
2. Access the compass module or display screen connector
3. Release the locking tab and unplug the original 8-pin connector
4. Transfer terminals to the new housing or splice in the pre-wired variant
5. Reconnect and verify compass display and reversing light function

Frequently Asked Questions

Q: What fault codes indicate a failed compass or display connector?
A: Common symptoms include compass display not working, reversing light not triggering the display, and U-codes for display module communication faults.

Q: Are terminals included?
A: Yes, terminals are included with all variants.

Compatible Applications

• Rear-view mirror compass display module harness
• Reversing light trigger signal connector
• Infotainment display screen harness
• Universal 8-pin compass/reversing/display applications
