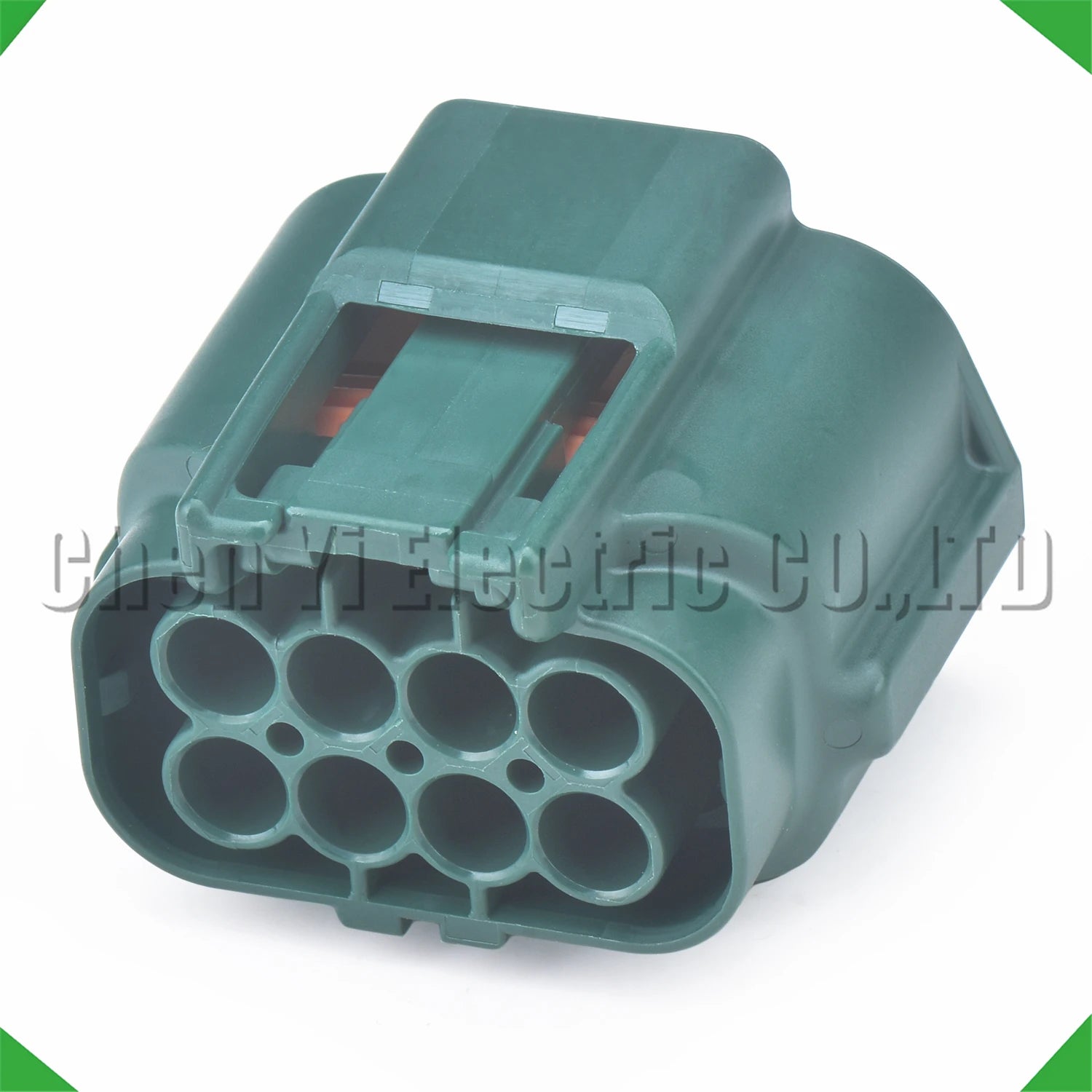

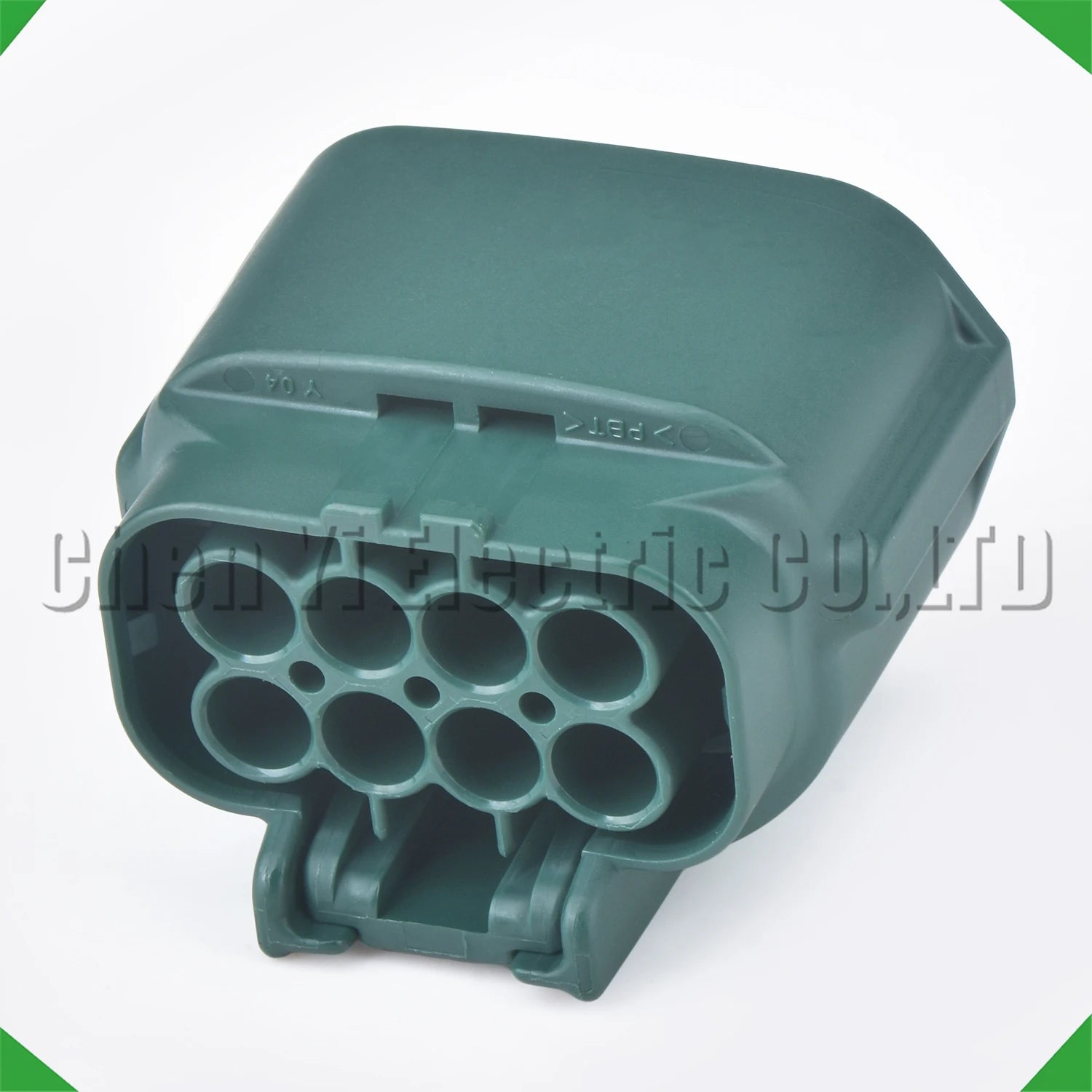

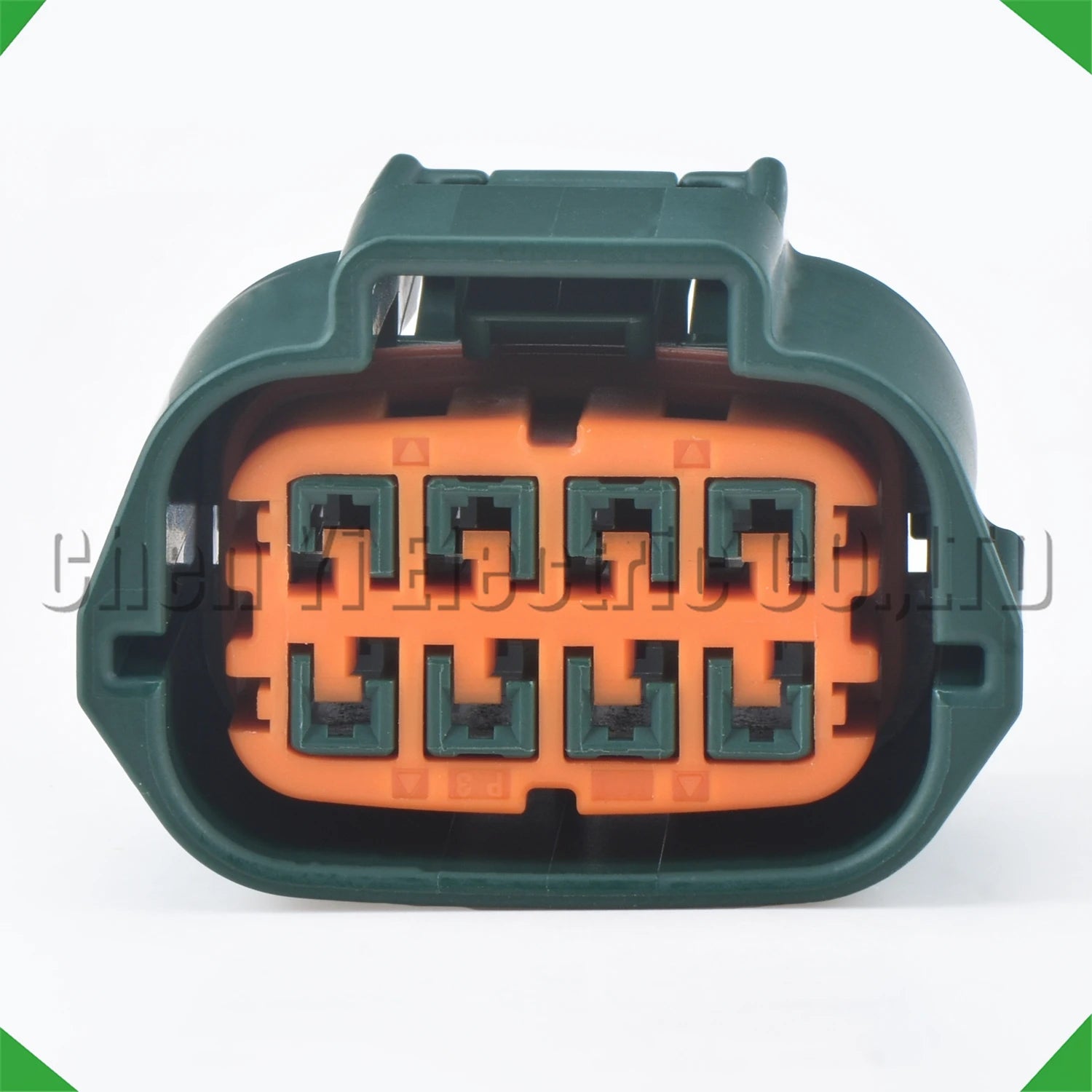

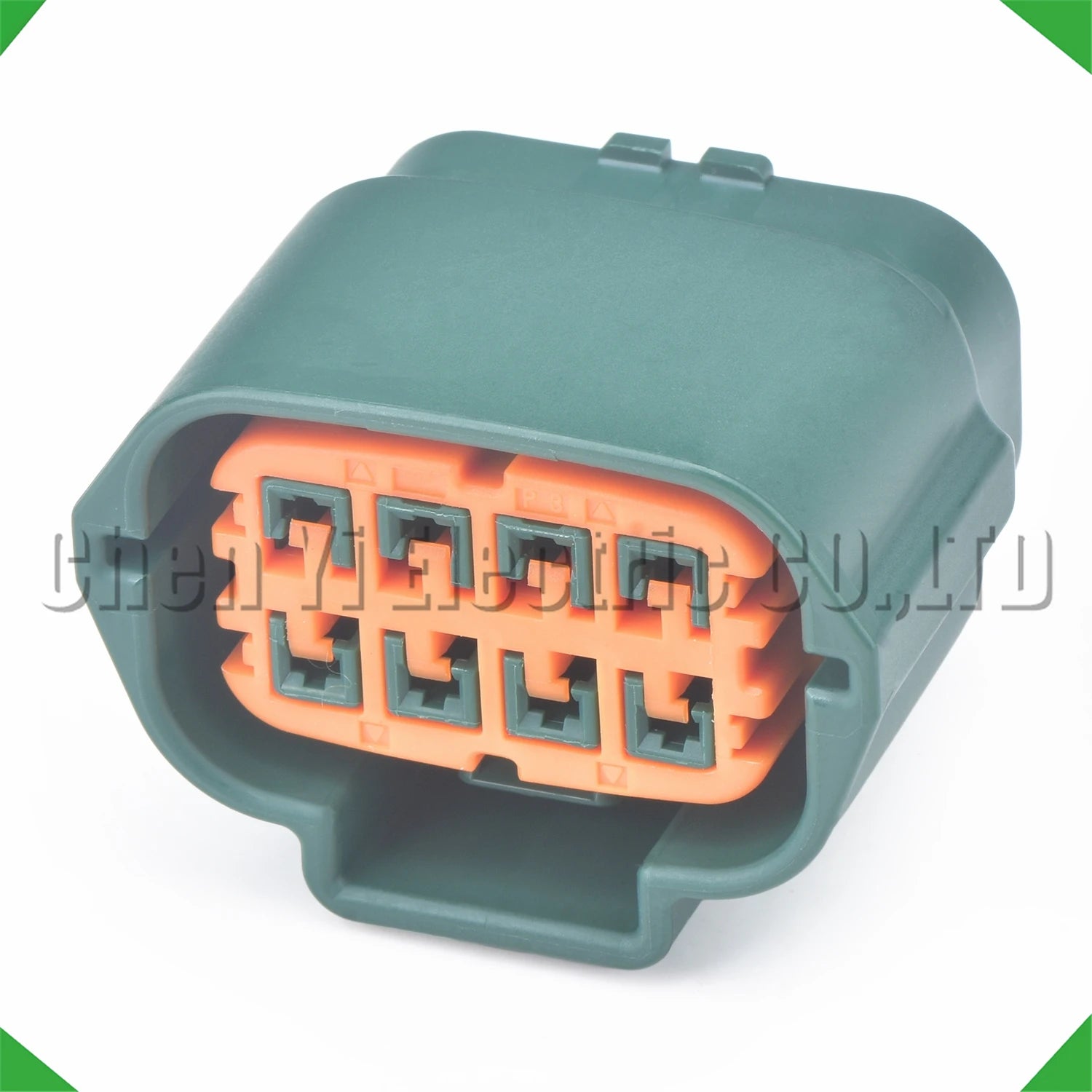

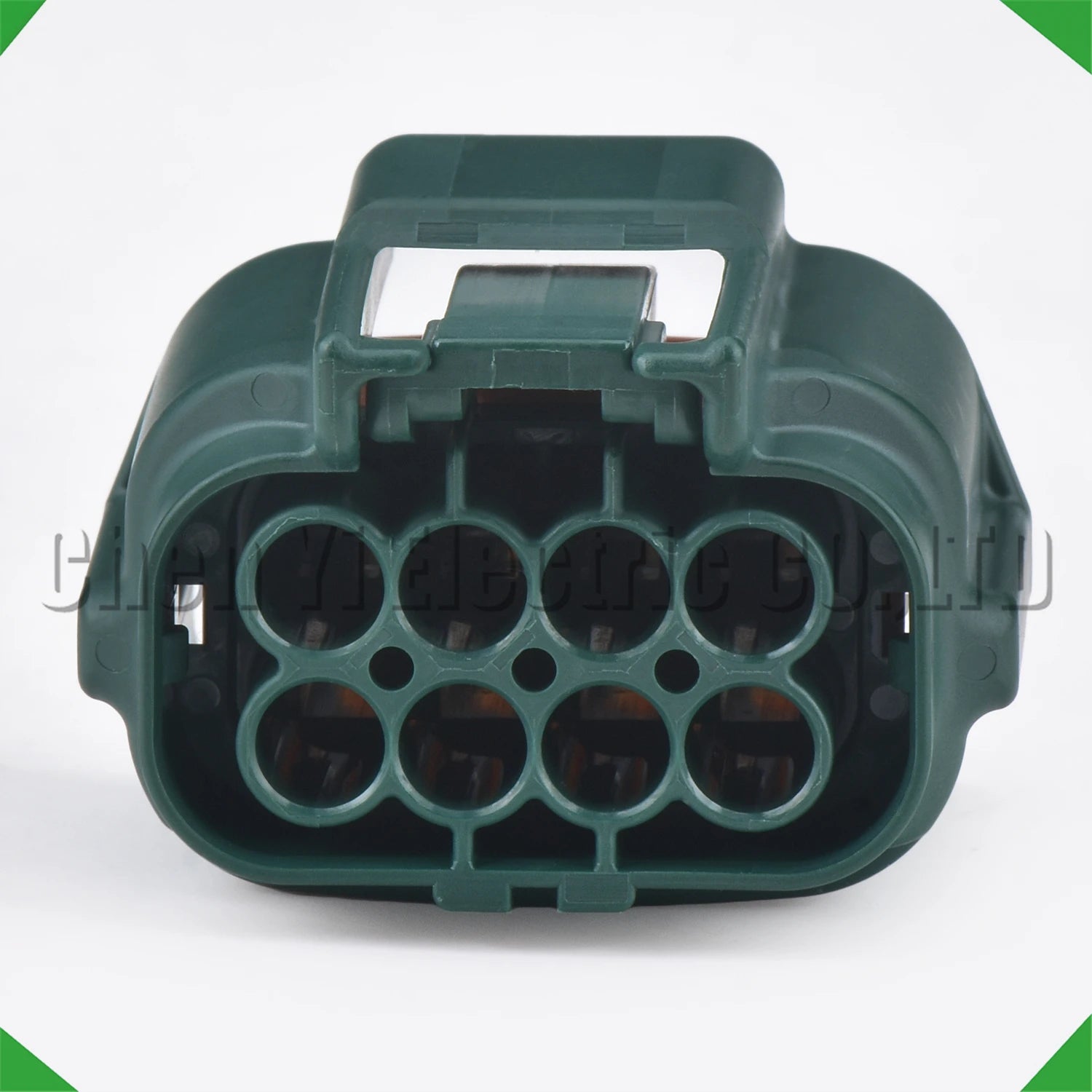

Nissan 8-Pin Headlight & Sensor Wire Harness Connector – Female OEM

This 8-pin female connector is used in Nissan headlight assembly and sensor harnesses. The 8-pin configuration integrates low beam, high beam, DRL, turn signal, leveling motor, and sensor circuits for Nissan LED or xenon headlight assemblies. Available bare or with 15cm pre-wired leads.

Key Specifications

Why Headlight Connectors Fail

Nissan headlight connectors are exposed to road vibration, thermal cycling from LED/xenon drivers, and moisture from the headlight housing. Terminal oxidation or housing cracks cause intermittent headlight failures, DRL malfunctions, or B-code fault codes. Replacing the connector restores full headlight circuit integrity.

Variant Guide

• Female – Bare 8-pin housing with terminals

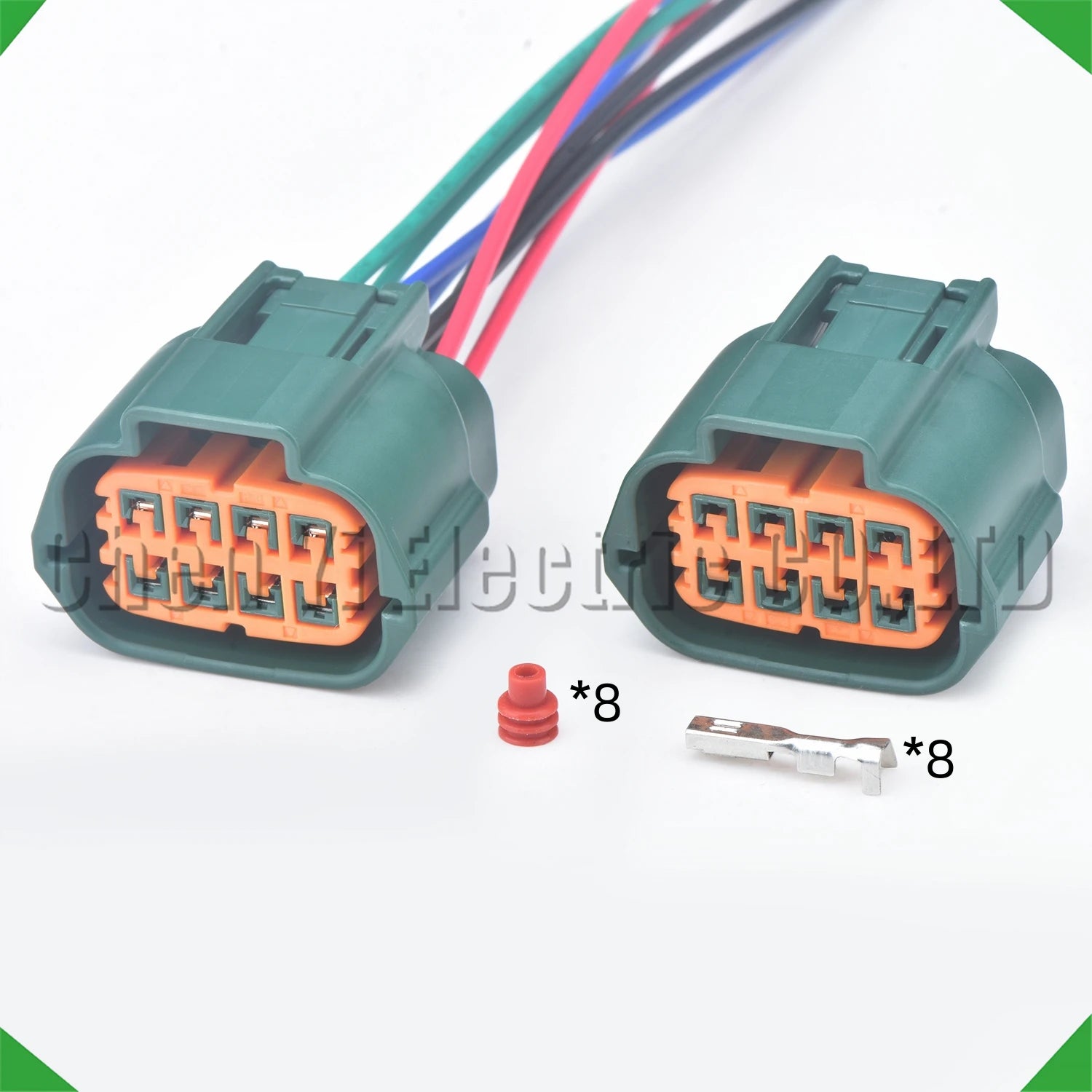

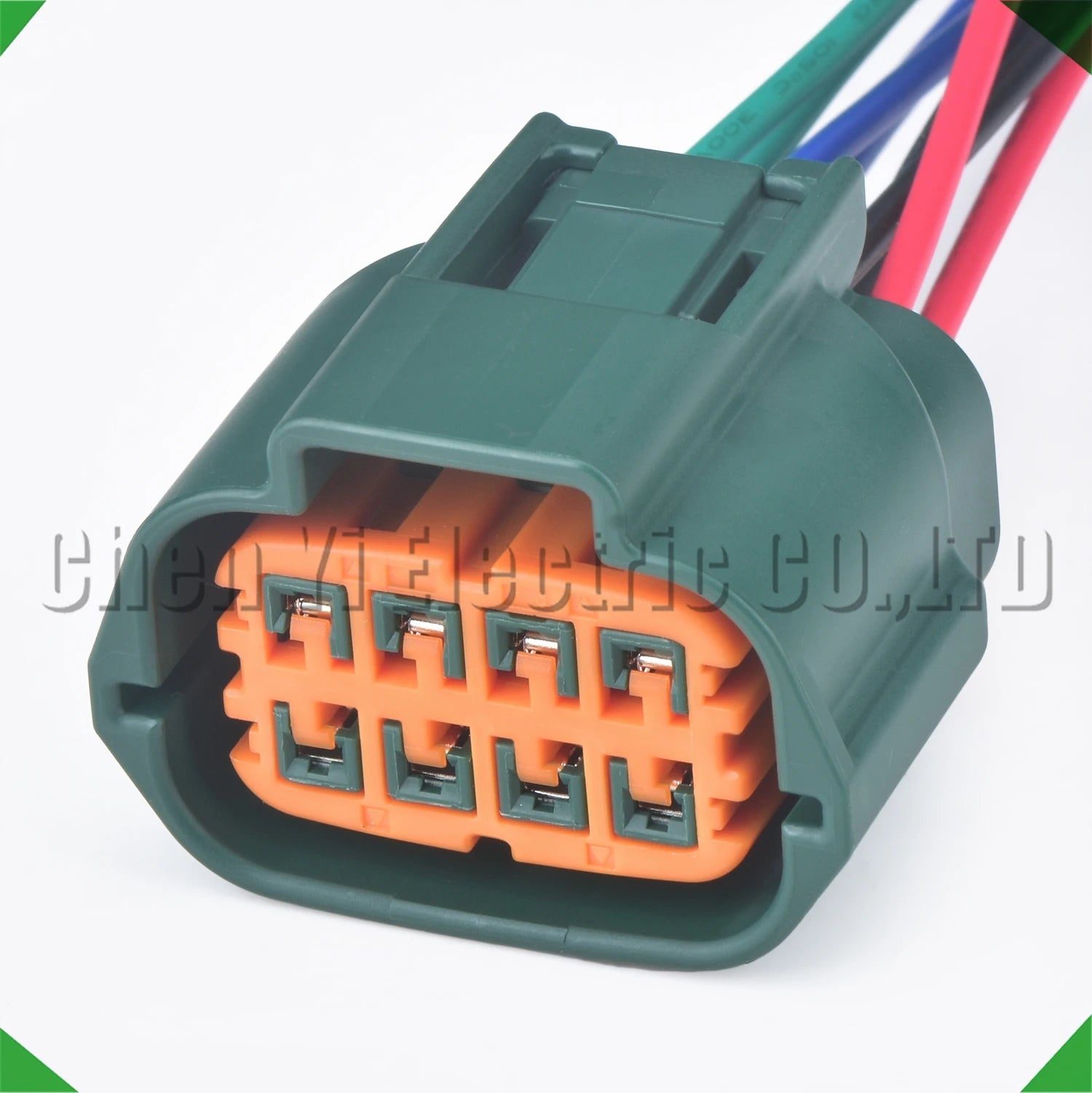

• Female 15CM – Pre-wired with 15cm leads for direct splice-in installation

Installation Steps

1. Disconnect the vehicle battery
2. Remove the headlight assembly to access the harness connector
3. Release the locking tab and unplug the original 8-pin connector
4. Transfer terminals to the new housing or splice in the pre-wired variant
5. Reinstall the headlight and verify all functions (low/high beam, DRL, turn signal)

Frequently Asked Questions

Q: What Nissan models use this 8-pin headlight connector?
A: This connector is used on Nissan Altima, Maxima, Sentra, Rogue, X-Trail, and Infiniti Q50/Q60 with LED or xenon headlight assemblies. Cross-reference your vehicle’s wiring diagram to confirm fitment.

Q: What fault codes indicate a headlight connector issue?
A: Common codes include B-codes for headlight circuit faults, DRL open circuit, and xenon ballast communication errors on Nissan CONSULT diagnostic systems.

Q: Are terminals included?

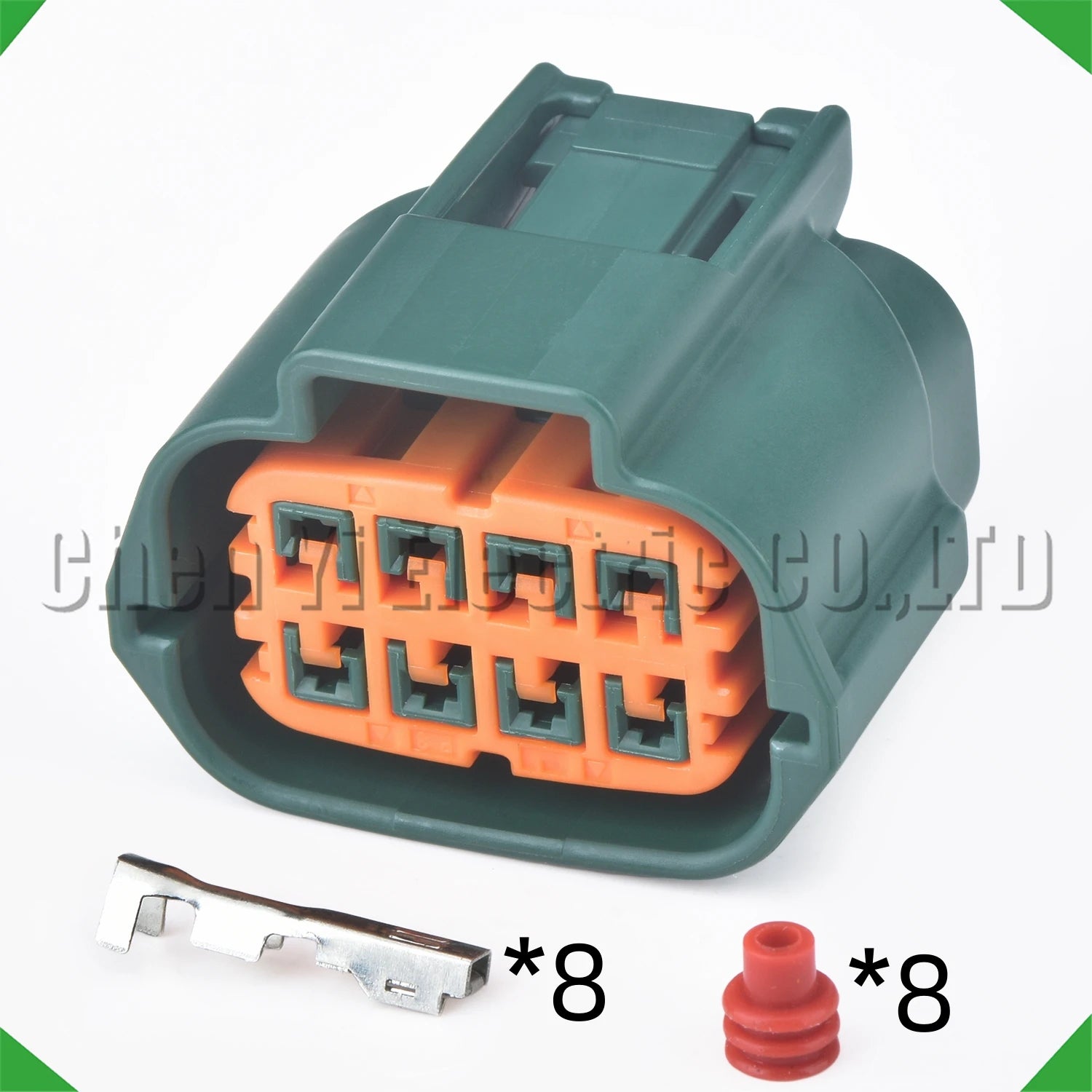

A: Yes, terminals are included with all variants.

Compatible Applications

• Nissan Altima / Maxima – LED/xenon headlight harness
• Nissan Sentra / Rogue / X-Trail – Headlight assembly connector
• Infiniti Q50 / Q60 – Multi-function headlight wiring
