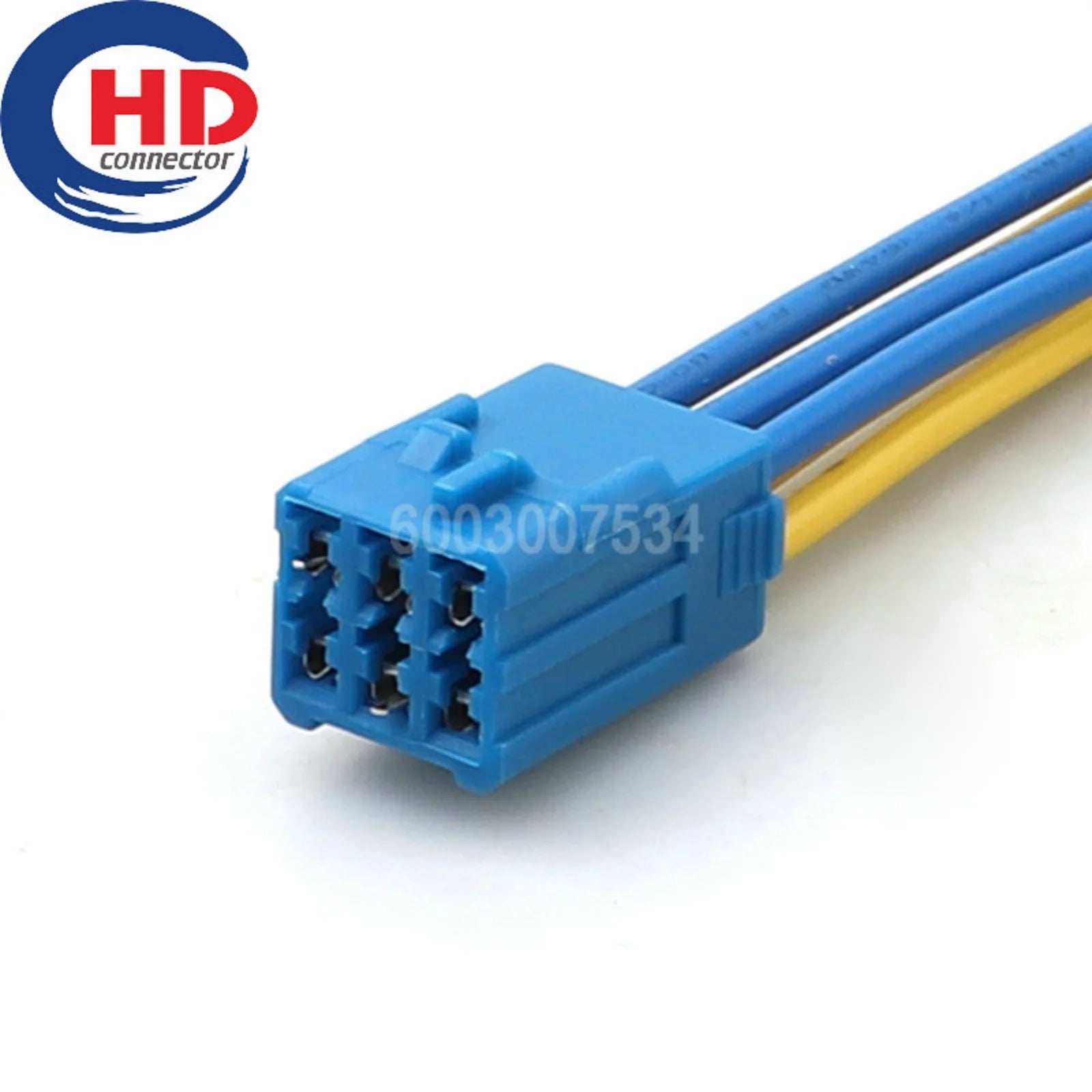

6-Pin 7123-1460 / 6242-5061 AMP Unsealed Female Connector – VW BMW Audi Toyota Nissan

Direct-fit replacement for AMP/TE Connectivity part numbers 7123-1460 (female housing) and 6242-5061 (terminal), a 6-pin unsealed connector widely used in sensor, relay, and body harness circuits across VW, BMW, Audi, Toyota, and Nissan platforms. The unsealed design is suited for interior and protected under-hood locations where IP-rated sealing is not required.

Key Specifications

• OEM Part Numbers: 7123-1460 (housing) / 6242-5061 (terminal)
• Pin Count: 6
• Gender: Female (with wire)
• Wire Gauge: 18 AWG (0.75 mm²)
• Wire Length: 5.5 inches (140 mm)
• Sealing: Unsealed (interior / protected locations)
• Housing Material: PA66 glass-filled nylon
• Terminal Material: Copper alloy, tin-plated
• Current Rating: Up to 5A per pin (signal/low-power circuits)

Pin Assignment Reference (6-Pin Sensor/Relay)

Note: Pin assignment varies by application. Always verify with vehicle-specific wiring diagram before installation.

Compatible Applications

• VW / Audi: Body control module (BCM) harness connectors, interior sensor circuits
• BMW: Relay socket and sensor harness connectors (E-series, F-series)
• Toyota / Nissan: ECU sub-harness and sensor connectors
• General: Relay sockets, body harness junctions, interior lighting control circuits

Unsealed vs. Sealed – When to Use 7123-1460

The 7123-1460 is an unsealed connector. It is designed for interior cabin, dashboard, or protected engine bay locations where moisture ingress is not a concern. For exterior or exposed locations (wheel arch, bumper, underbody), use a sealed IP67/IP68 equivalent instead. Installing an unsealed connector in a wet environment will cause terminal corrosion and intermittent faults.

Diagnosis – Common Faults

• Intermittent sensor fault codes: Inspect terminal contact pressure – unsealed connectors are prone to terminal spread from repeated mating cycles
• High resistance at connector: Measure contact resistance with a milliohm meter; >0.5Ω indicates terminal wear or oxidation
• VW/Audi fault codes: 01314 (Engine Control Module), 00668 (Supply Voltage Terminal 30) – check connector integrity before replacing modules

FAQ

Q: Is 7123-1460 the same as 6242-5061?
A: No – 7123-1460 is the female housing; 6242-5061 is the terminal (contact) that inserts into the housing. Both are required for a complete connector assembly.

Q: What is the mating male connector for 7123-1460?
A: The mating male housing is 7122-1460 (AMP/TE Connectivity). Verify pin count and pitch before ordering.

Q: Can this connector be used on Toyota and Nissan?
A: Yes – AMP connectors are used across multiple OEM platforms. Confirm the housing profile and pin count match your vehicle's harness before installation.

Package Contents

1 × 6-Pin Female Connector Housing (7123-1460) with 18 AWG wire and terminal insert (6242-5061)
