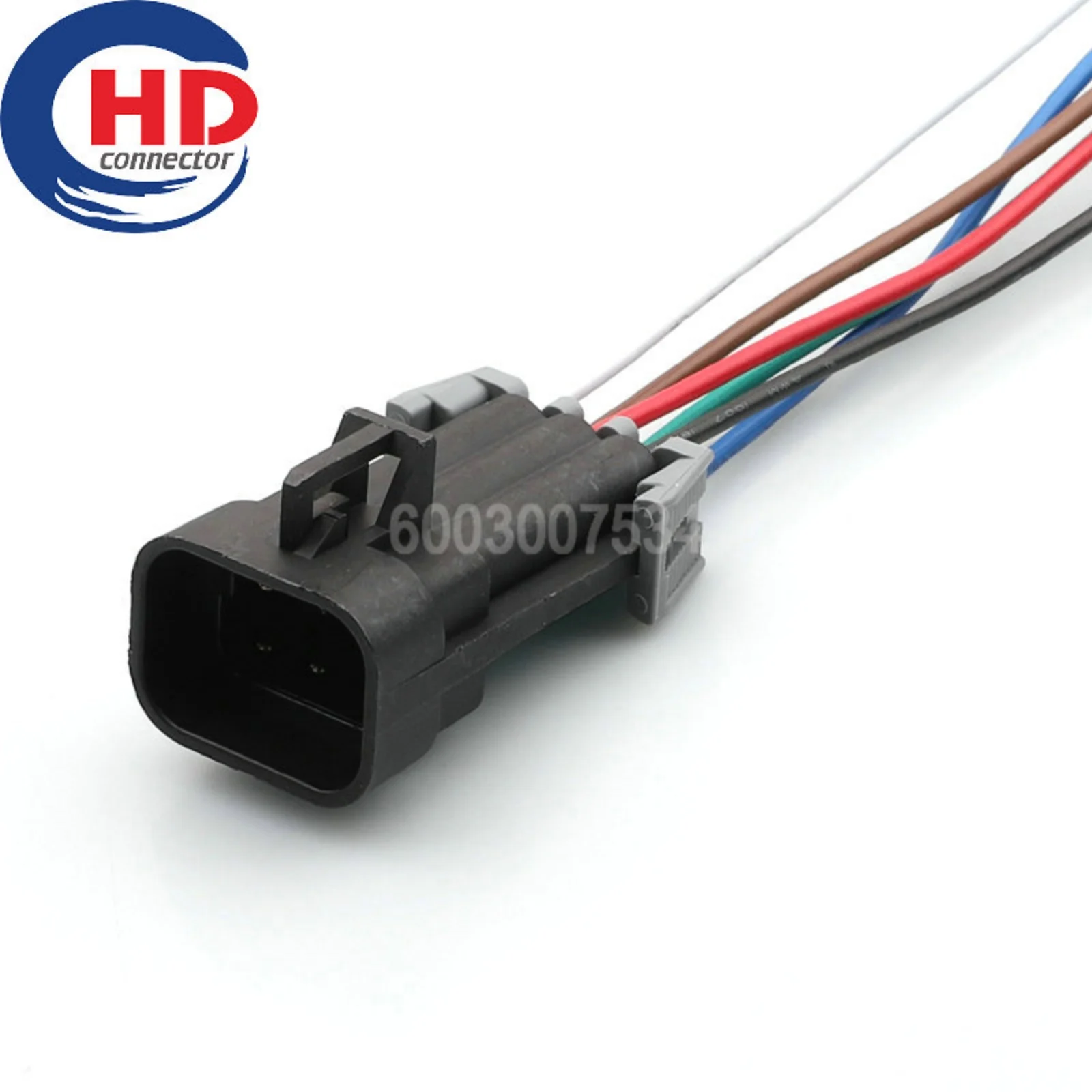

6-Pin Metri-Pack 150 Waterproof Male Connector – GM OEM 12124107 Automotive Harness

Direct-fit replacement for GM OEM part number 12124107, a 6-pin Metri-Pack 150 series IP68 waterproof male connector used for sensor, actuator, and body harness connections on GM vehicles and motorcycles. The Metri-Pack 150 series (1.5mm terminal pitch) is one of the most widely used waterproof connector families across GM, Delphi, and Packard harness applications.

Key Specifications

• OEM Part Number: 12124107 (GM / Delphi)
• Series: Metri-Pack 150 (1.5mm terminal pitch)
• Pin Count: 6
• Gender: Male (plug side, with wire)
• Wire Gauge: 20 AWG (0.5 mm²)
• Wire Length: 5.5 inches (140 mm)
• Waterproof Rating: IP68
• Housing Material: PA66 glass-filled nylon
• Terminal Material: Copper alloy, tin-plated
• Current Rating: Up to 5A per pin

Metri-Pack 150 Series – What Does It Mean?

The Metri-Pack 150 designation refers to the terminal series used by Delphi/Packard (now Aptiv) for waterproof automotive connectors. The 150 indicates the terminal size category (approximately 1.5mm pitch). Metri-Pack connectors are identified by their distinctive round wire seal and push-to-seat terminal design. They are used across GM, Opel/Vauxhall, Saab, and Isuzu platforms.

Pin Assignment Reference (6-Pin Sensor)

Compatible Applications

• GM / Chevrolet / Buick / Cadillac / GMC: Sensor harness connectors – MAF, MAP, O2, TPS, coolant temperature
• Opel / Vauxhall / Saab: ECU sub-harness and sensor connectors
• Motorcycle: Body harness and sensor connectors using Metri-Pack 150 format

Diagnosis – Common Faults

• P0100–P0118 (MAF/ECT Circuit): Inspect 12124107 connector before replacing sensor – a corroded Metri-Pack terminal is a common root cause on GM platforms
• Terminal back-out: Metri-Pack terminals use a push-to-seat design – a terminal not fully seated will back out under vibration and cause intermittent open-circuit faults
• Terminal removal: Use Delphi Metri-Pack removal tool 12094429 – never use a screwdriver, which will damage the terminal retention lance

FAQ

Q: What is Metri-Pack 150 and how is it different from Metri-Pack 280?
A: Metri-Pack 150 uses a smaller terminal (1.5mm pitch, up to 5A) for signal circuits; Metri-Pack 280 uses a larger terminal (2.8mm pitch, up to 9A) for higher-current circuits such as lighting and solenoids. Never mix terminal sizes between series.

Q: Is GM 12124107 a Delphi or Packard part number?
A: 12124107 is a GM OEM part number. The same connector is supplied by Delphi (now Aptiv) under their own part number system. Both refer to the identical Metri-Pack 150 6-pin connector.

Package Contents

1 × 6-Pin Male Connector (12124107) with 20 AWG wire and terminal insert
