6-Pin Rear Camera Connector – Ford Focus Mondeo OEM 7282-6454-40 / 7283-6454-40

Direct-fit replacement for Yazaki OEM part numbers 7282-6454-40 (male housing) and 7283-6454-40 (female housing), a 6-pin connector set used for rear camera, seat module, and body harness connections on Ford Focus and Ford Mondeo vehicles. The Yazaki 7282/7283 series is widely used across Ford Europe platforms for camera and body control harness circuits.

Key Specifications

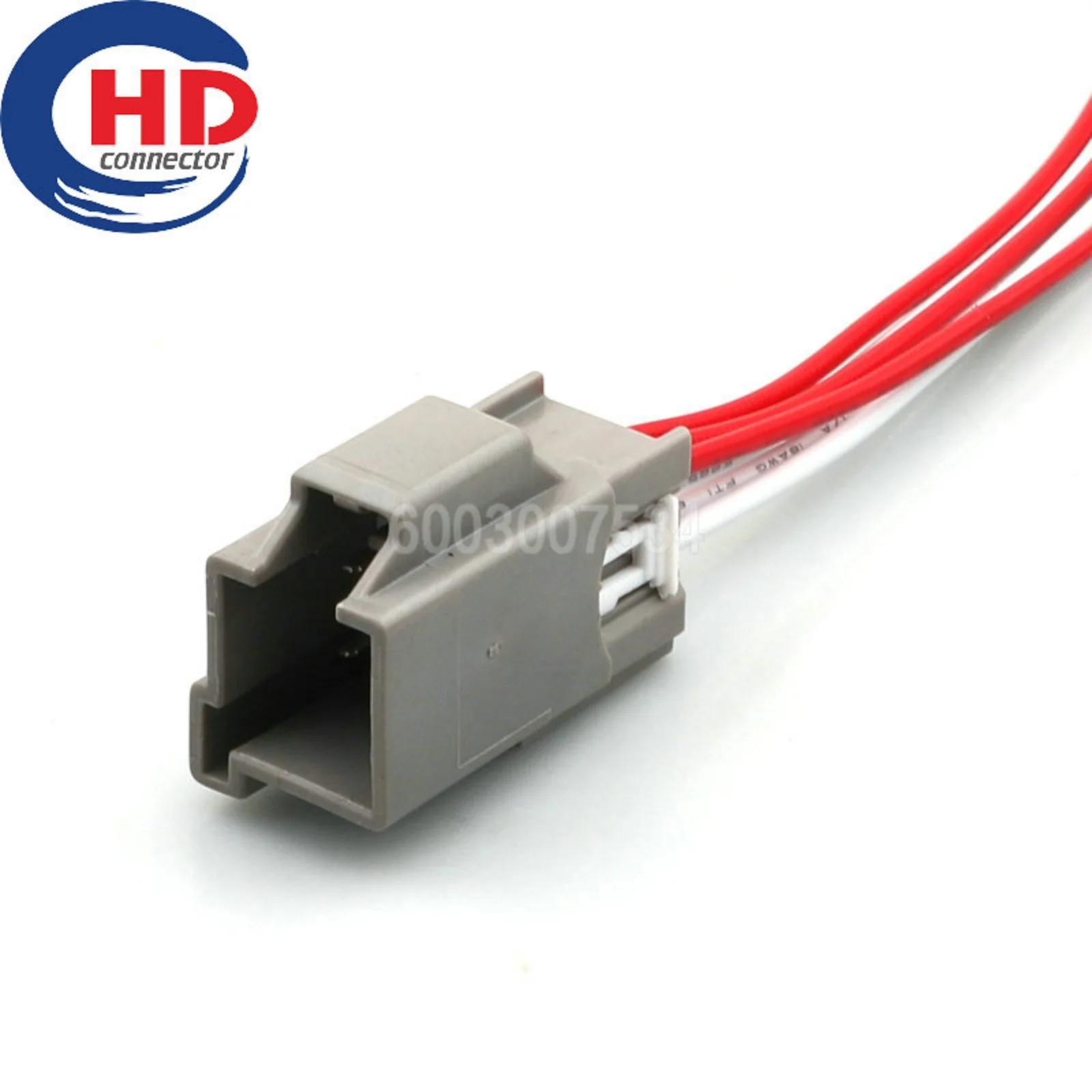

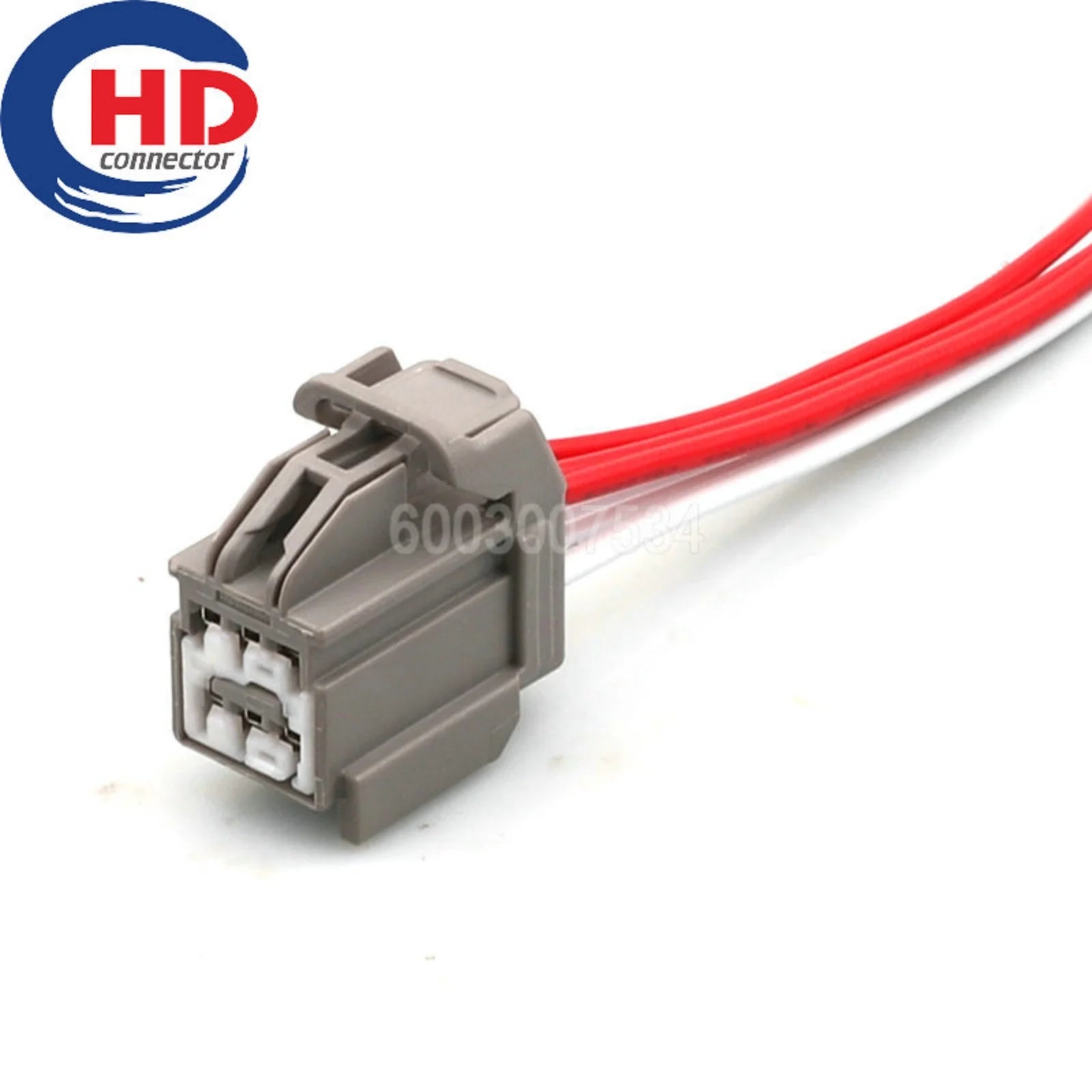

• OEM Part Numbers: 7282-6454-40 (male) / 7283-6454-40 (female)
• Pin Count: 6
• Gender: Male & Female set (with wire)
• Wire Gauge: 20 AWG (0.5 mm²)
• Wire Length: 5.5 inches (140 mm)
• Housing Material: PA66 glass-filled nylon
• Terminal Material: Copper alloy, tin-plated
• Current Rating: Up to 5A per pin (signal circuits)

Rear Camera Pin Assignment (6-Pin)

Yazaki 7282 vs 7283 – Male vs Female Naming Convention

In Yazaki part numbering, 7282-xxxx = male housing (pin side) and 7283-xxxx = female housing (socket side). The suffix -40 indicates the wire seal colour/variant code. This convention is consistent across the Yazaki 7282/7283 series used on Ford, Toyota, and Nissan platforms.

Compatible Ford Applications

• Ford Focus (MK3, 2011–2018): Rear camera harness connector and seat module connector
• Ford Mondeo (MK4/MK5): Rear camera and body harness connector
• Ford Kuga (MK2): Camera and body control harness connector

Diagnosis – Rear Camera Faults

• No camera image when reversing: Check 12V at Pin 1 with gear in reverse – no voltage indicates reverse light switch or wiring fault upstream of the connector
• Distorted or flickering image: Inspect Pin 3 (video signal) and Pin 4 (video ground) – a loose terminal causes video signal interference
• Ford IDS fault codes: U0164 (Lost Communication with HVAC), B1342 (ECU Fault) – check connector integrity before replacing camera module
• Camera works but no parking guidelines: Inspect Pin 6 (guideline enable signal) – an open circuit disables the overlay without affecting the video feed

FAQ

Q: Is 7282-6454-40 the male or female connector?
A: 7282-6454-40 is the male (pin side); 7283-6454-40 is the female (socket side). This follows the standard Yazaki 7282/7283 naming convention.

Q: Why does my Ford Focus rear camera show a black screen when reversing?
A: The most common causes are: (1) no 12V supply at Pin 1 – check the reverse light fuse and switch; (2) corroded connector terminals – inspect and replace the 7282/7283 connector; (3) failed camera module – only replace after ruling out connector and wiring faults.

Package Contents

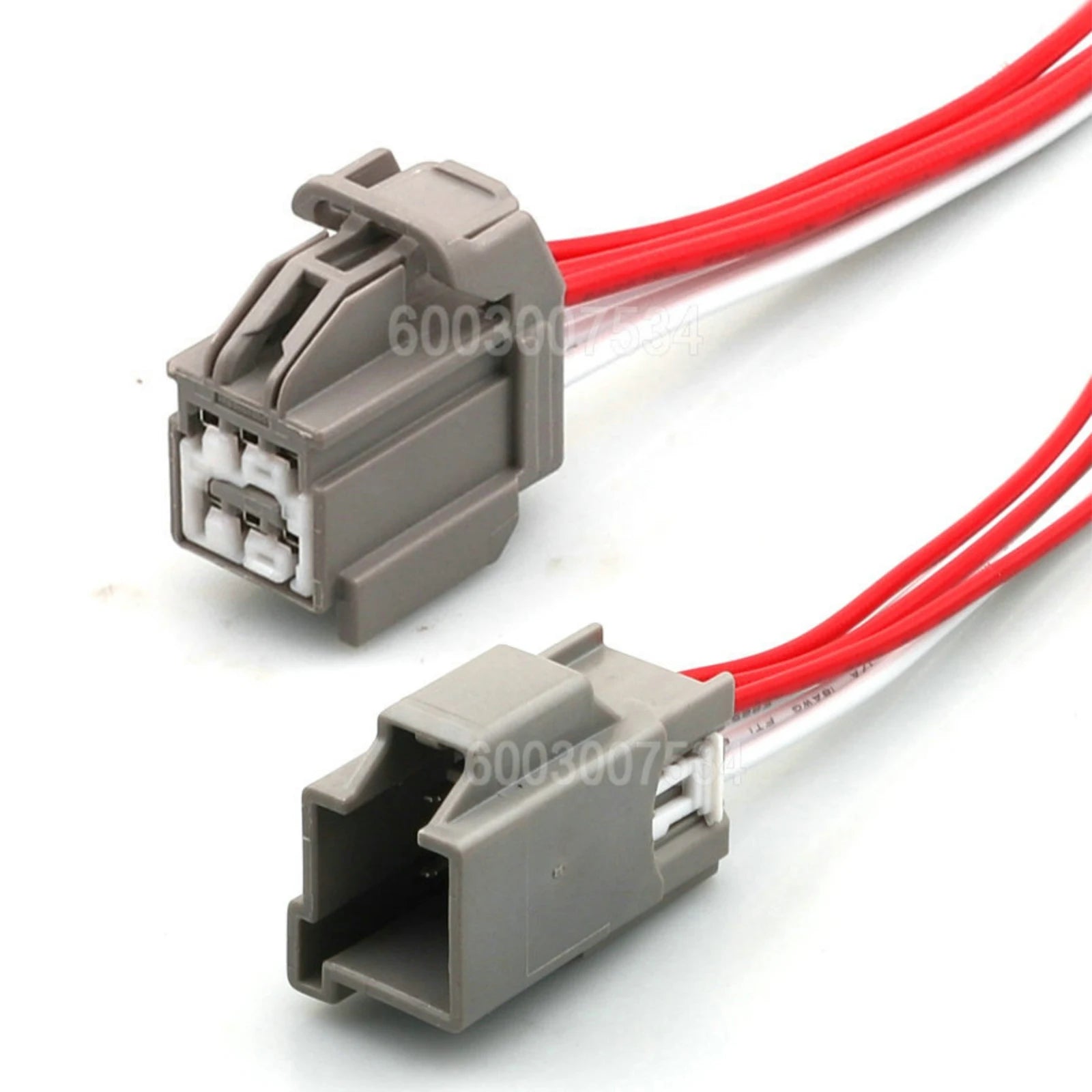

1 × 6-Pin Male Connector (7282-6454-40) + 1 × 6-Pin Female Connector (7283-6454-40), each with 20 AWG wire and terminal insert
