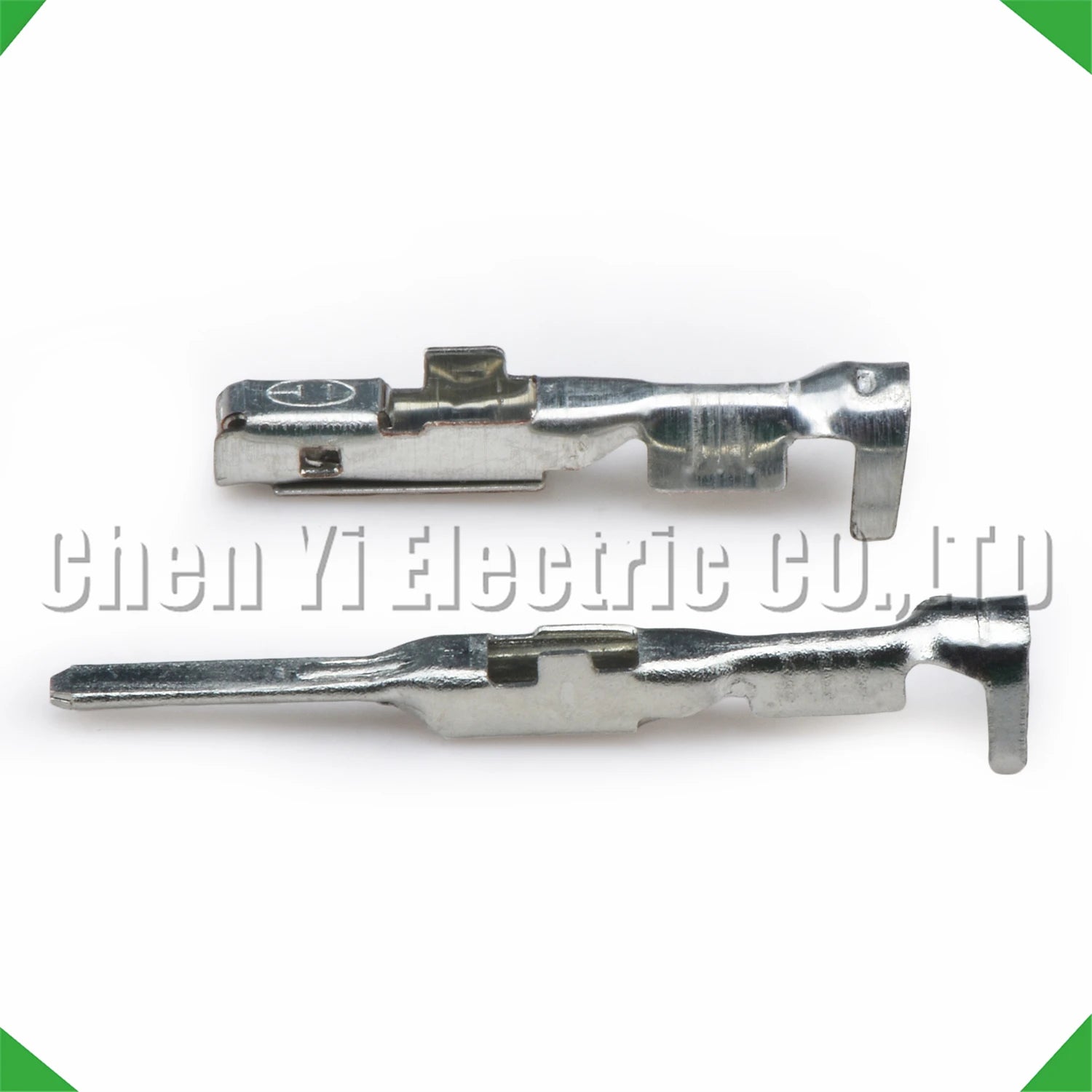

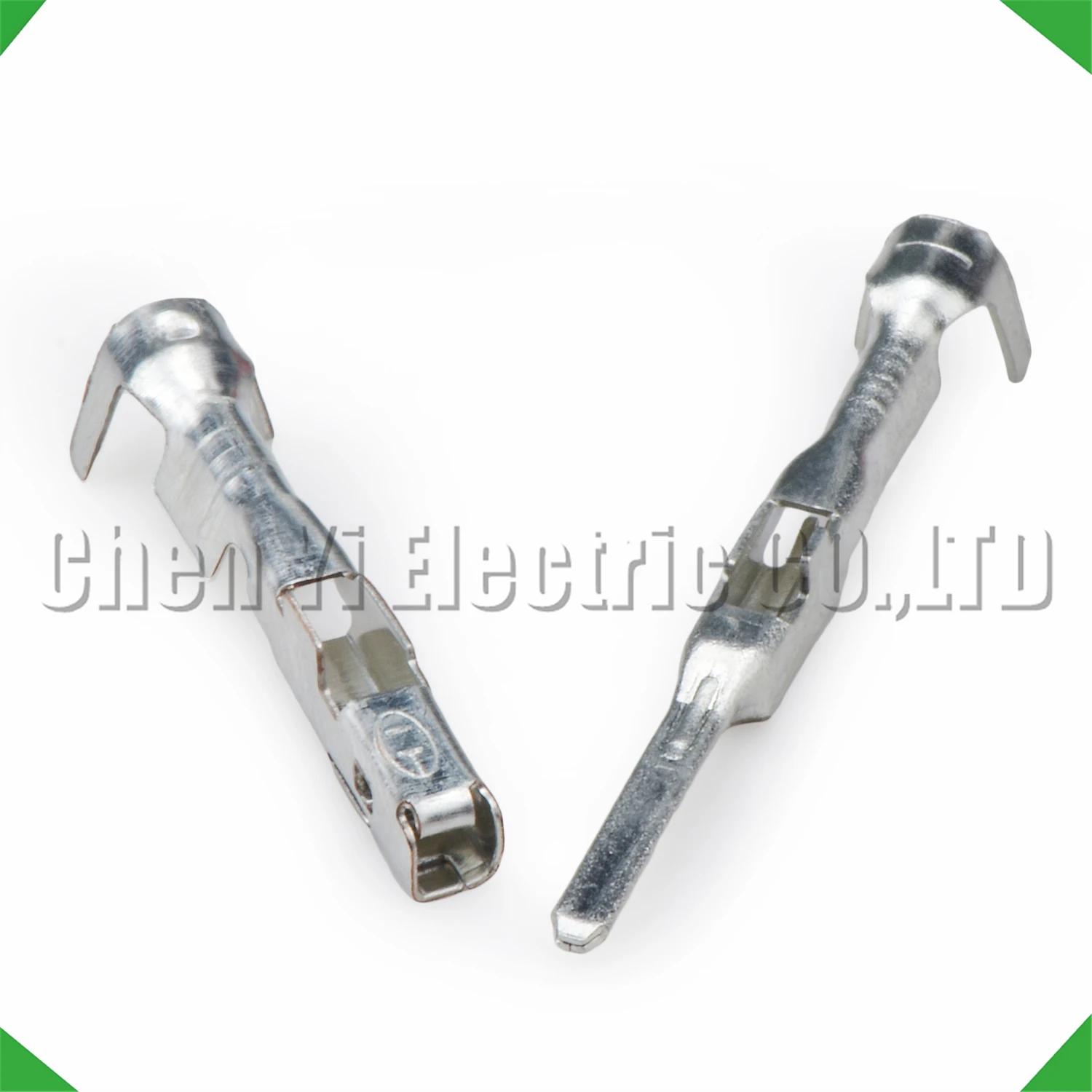

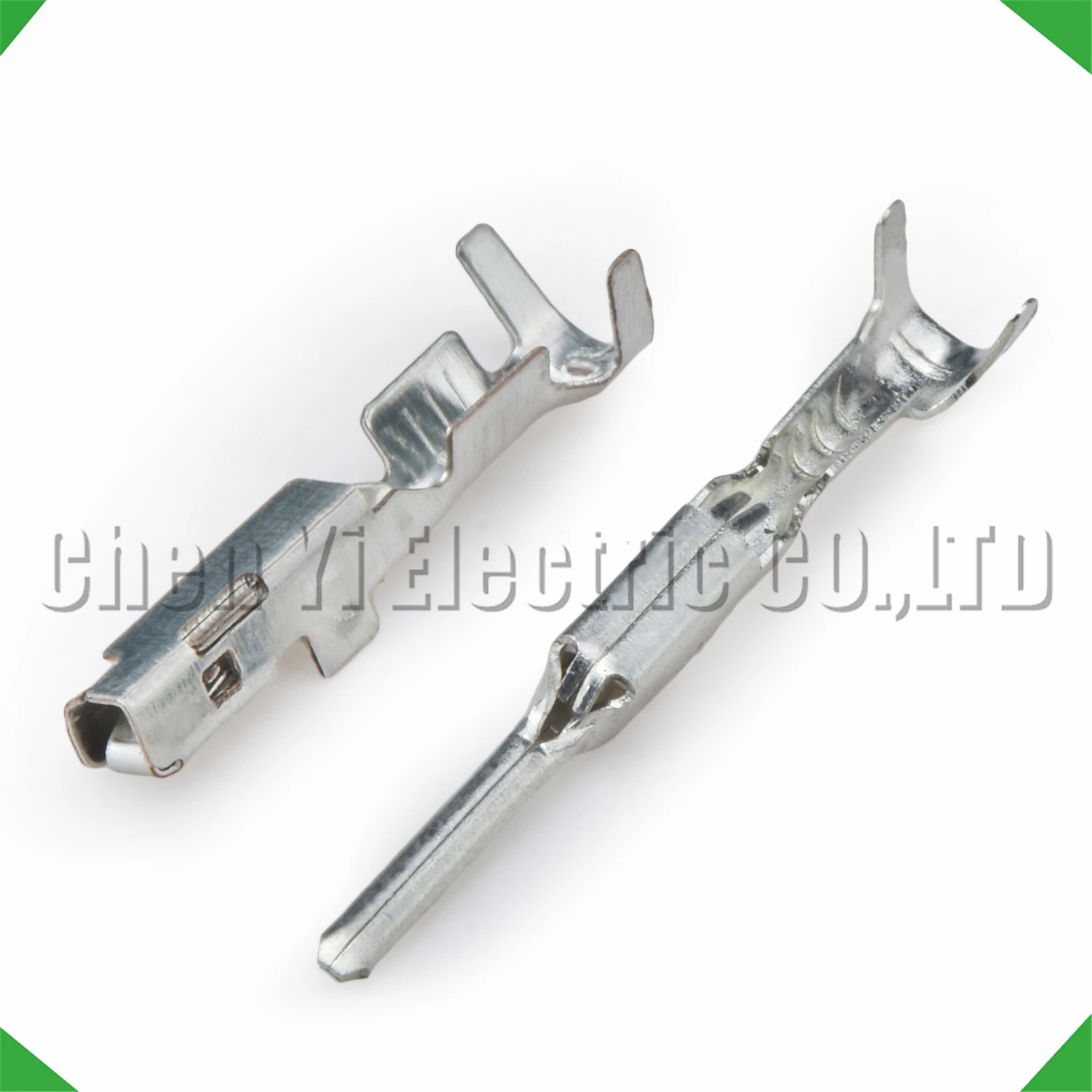

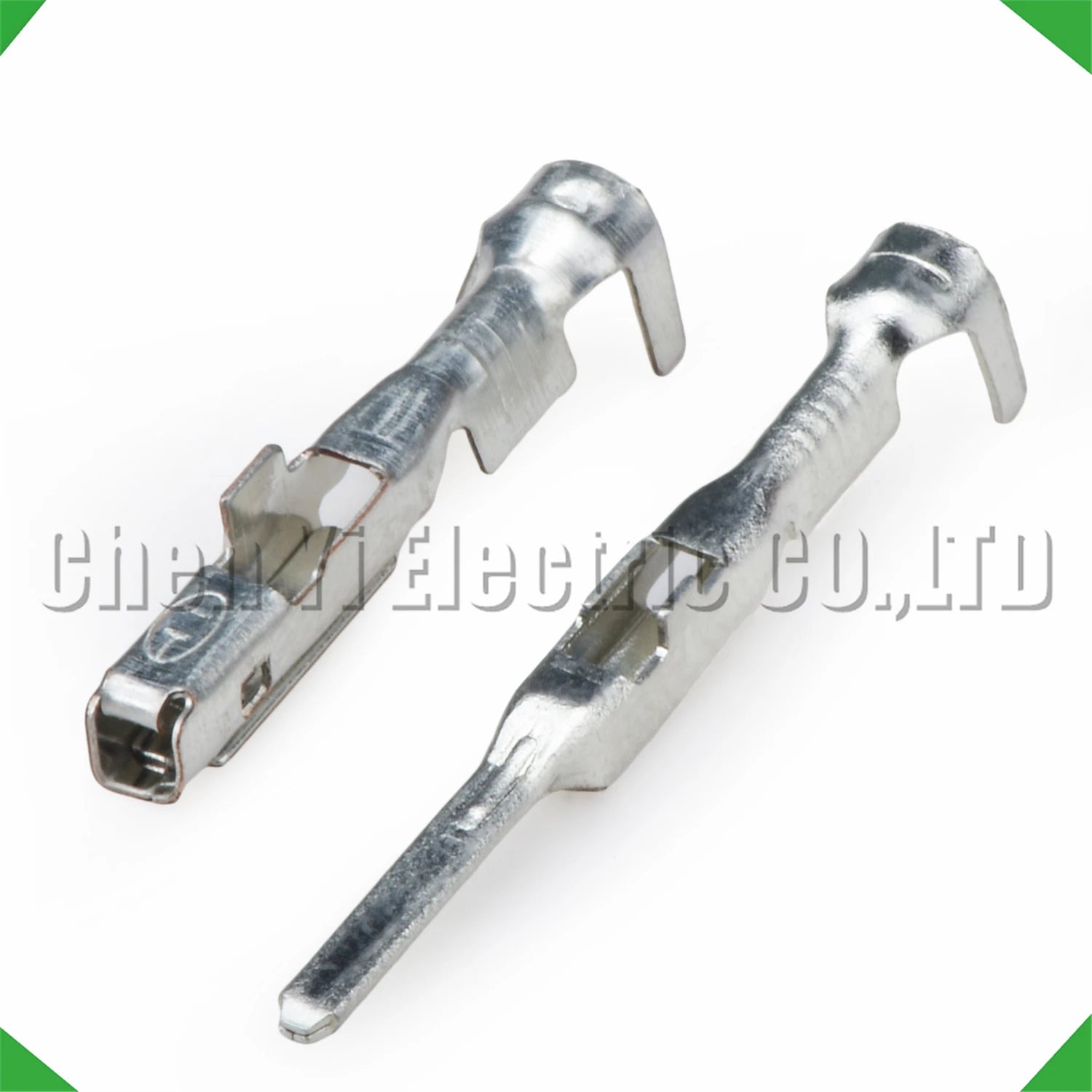

1.5mm Automotive Crimp Pins – OEM 7114-4102-02 / 7116-4103-02 / 82998-12670 | 50pcs Male & Female

The OEM 7114-4102-02 / 7116-4103-02 / 82998-12670 are 1.5mm pitch automotive crimp pins used in Sumitomo and Toyota connector systems. These three cross-referenced part numbers cover the same terminal family used across Sumitomo HM and Toyota-specification 1.5mm pitch connector housings. Sold in 50-piece packs for Male and Female variants.

Key Specifications

Sumitomo & Toyota 1.5mm Terminal System

Sumitomo Electric is Toyota’s primary wire harness supplier, and the Sumitomo HM (High-density Miniature) connector system is used extensively across Toyota and Lexus platforms. The 7114-4102-02 / 7116-4103-02 terminal family is the standard 1.5mm pitch contact for Sumitomo HM connector housings, cross-referenced as Toyota OEM 82998-12670 in Toyota’s parts catalog. These terminals are found in Toyota engine management, body electrical, and chassis harnesses wherever Sumitomo HM connectors are used – which covers the majority of Toyota’s sensor, actuator, and module circuits.

Variant Guide

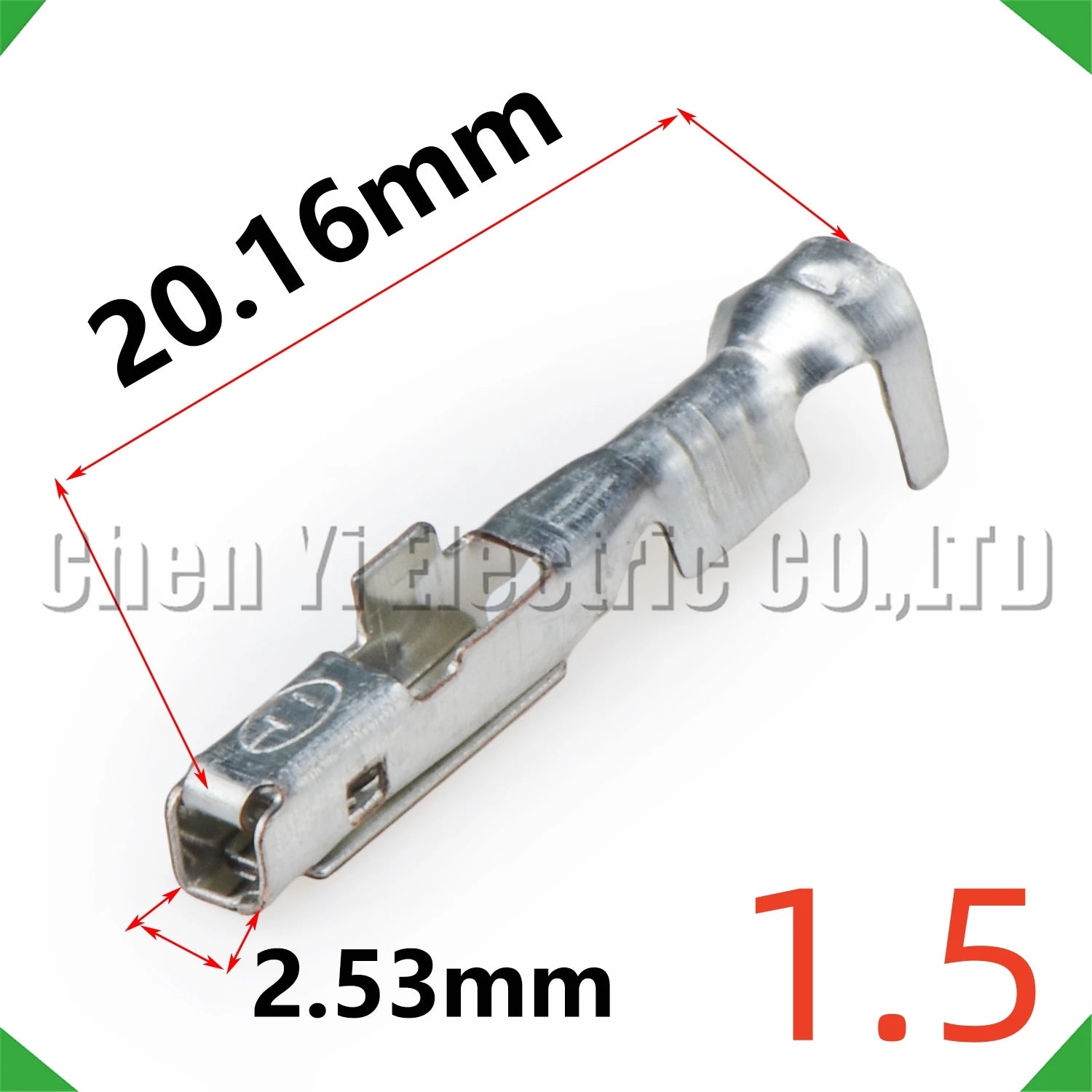

• 50pcs Female (7114-4102-02) – 50x female crimp pins for Sumitomo HM socket-side housings

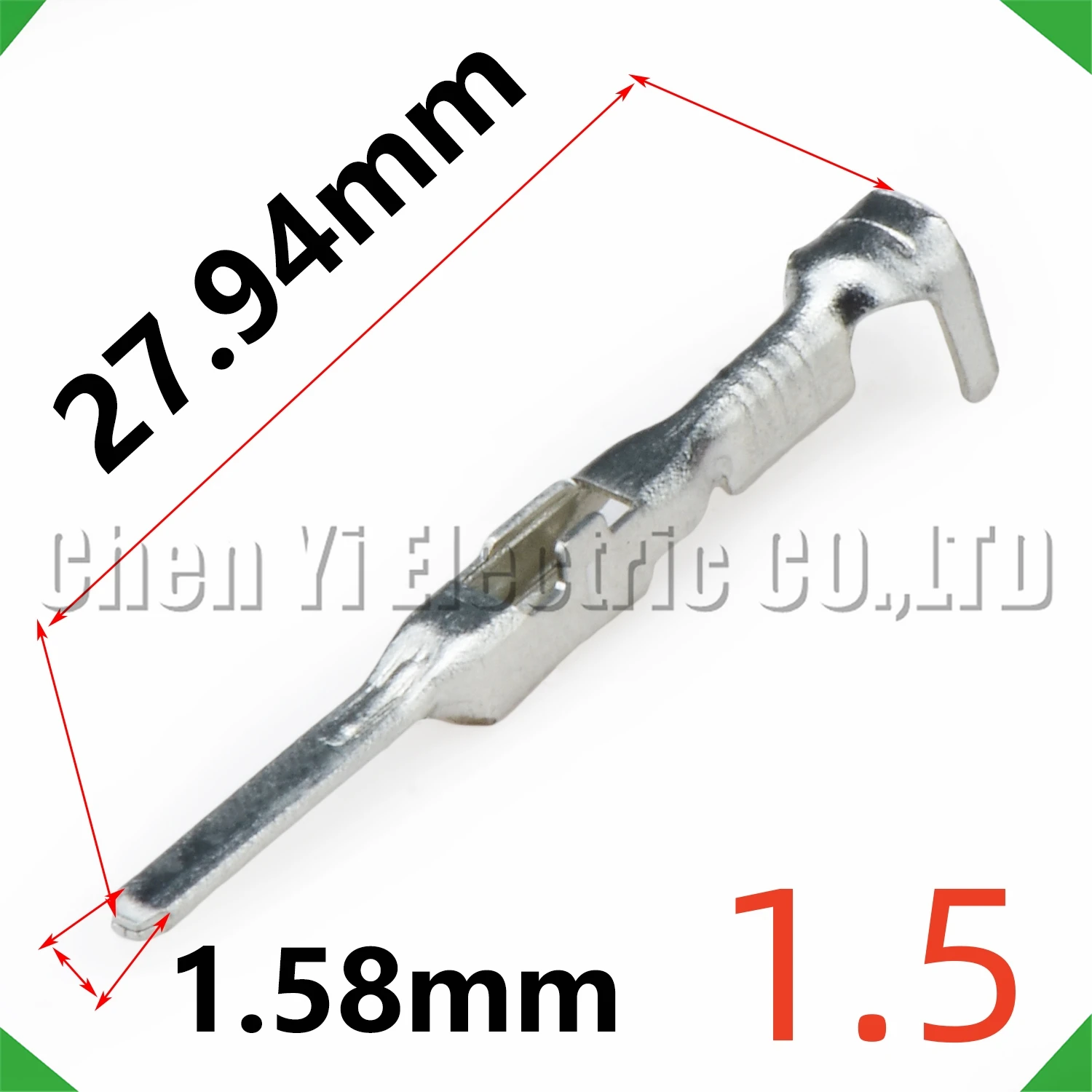

• 50pcs Male (7116-4103-02) – 50x male crimp pins for Sumitomo HM plug-side housings

Installation Notes

• Strip wire insulation to 3–4mm for 1.5mm pitch contacts
• Use a ratchet crimp tool rated for Sumitomo 1.5mm pitch contacts
• Insert terminal into connector housing until the locking tab clicks
• Pull-test each terminal after insertion to verify retention
• Compatible with Sumitomo HM connector housings and Toyota OEM 82998-12670 applications

Frequently Asked Questions

Q: What is the relationship between 7114-4102-02, 7116-4103-02, and 82998-12670?
A: These are cross-referenced part numbers for the same terminal family. 7114-4102-02 and 7116-4103-02 are Sumitomo Electric part numbers (female and male respectively); 82998-12670 is Toyota’s OEM cross-reference for the same terminal in Toyota’s parts catalog.

Q: What Toyota models use Sumitomo HM connectors with these terminals?
A: Sumitomo HM connectors are used across virtually all Toyota and Lexus platforms including Camry, Corolla, RAV4, Hilux, Land Cruiser, and Lexus ES/IS/GS/LS in engine management, body electrical, and chassis harnesses.

Common Applications

• Toyota and Lexus Sumitomo HM connector harness repair (all platforms)
• Engine management sensor and actuator circuit re-pinning
• Body electrical harness terminal replacement
• Chassis and ABS harness repair on Toyota platforms
