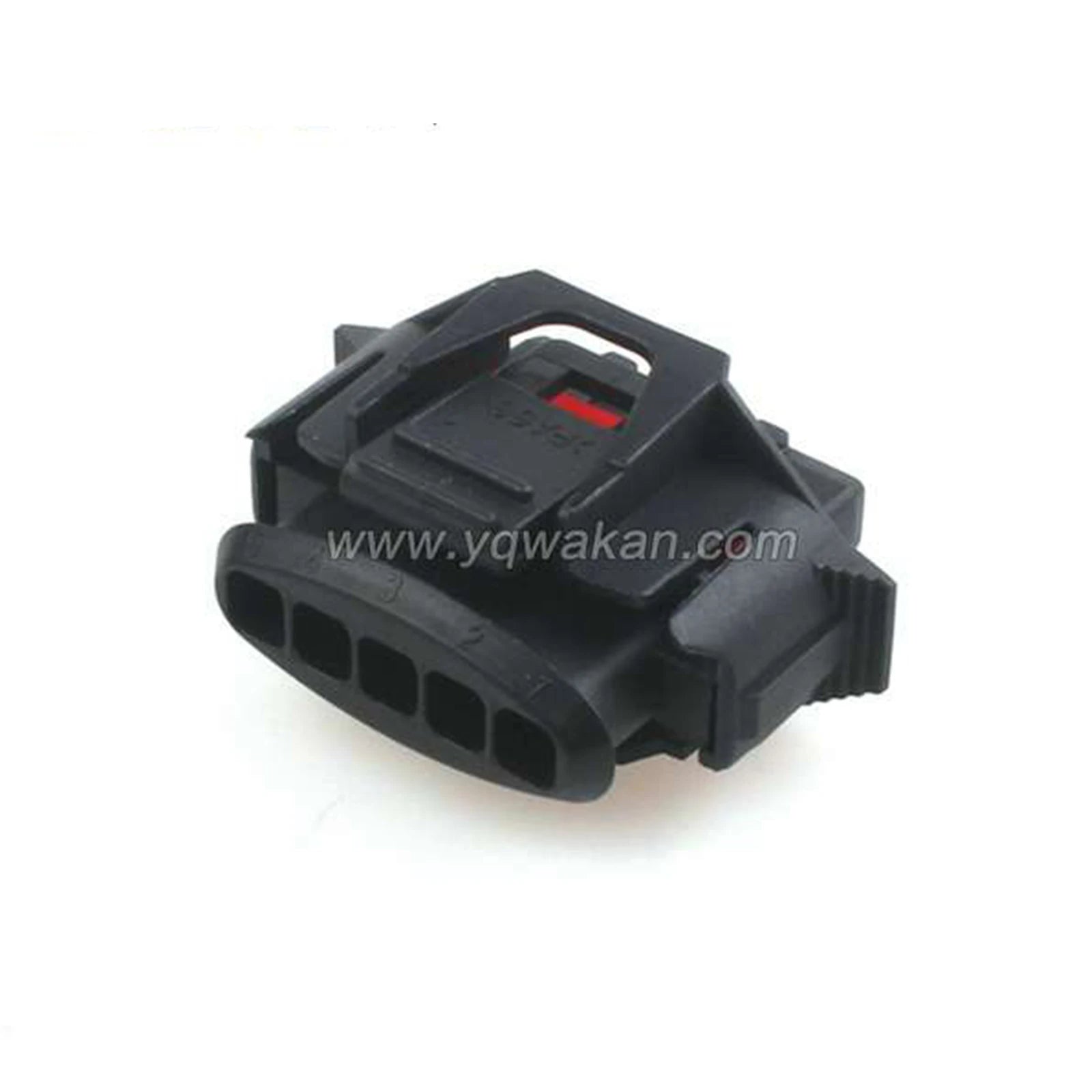

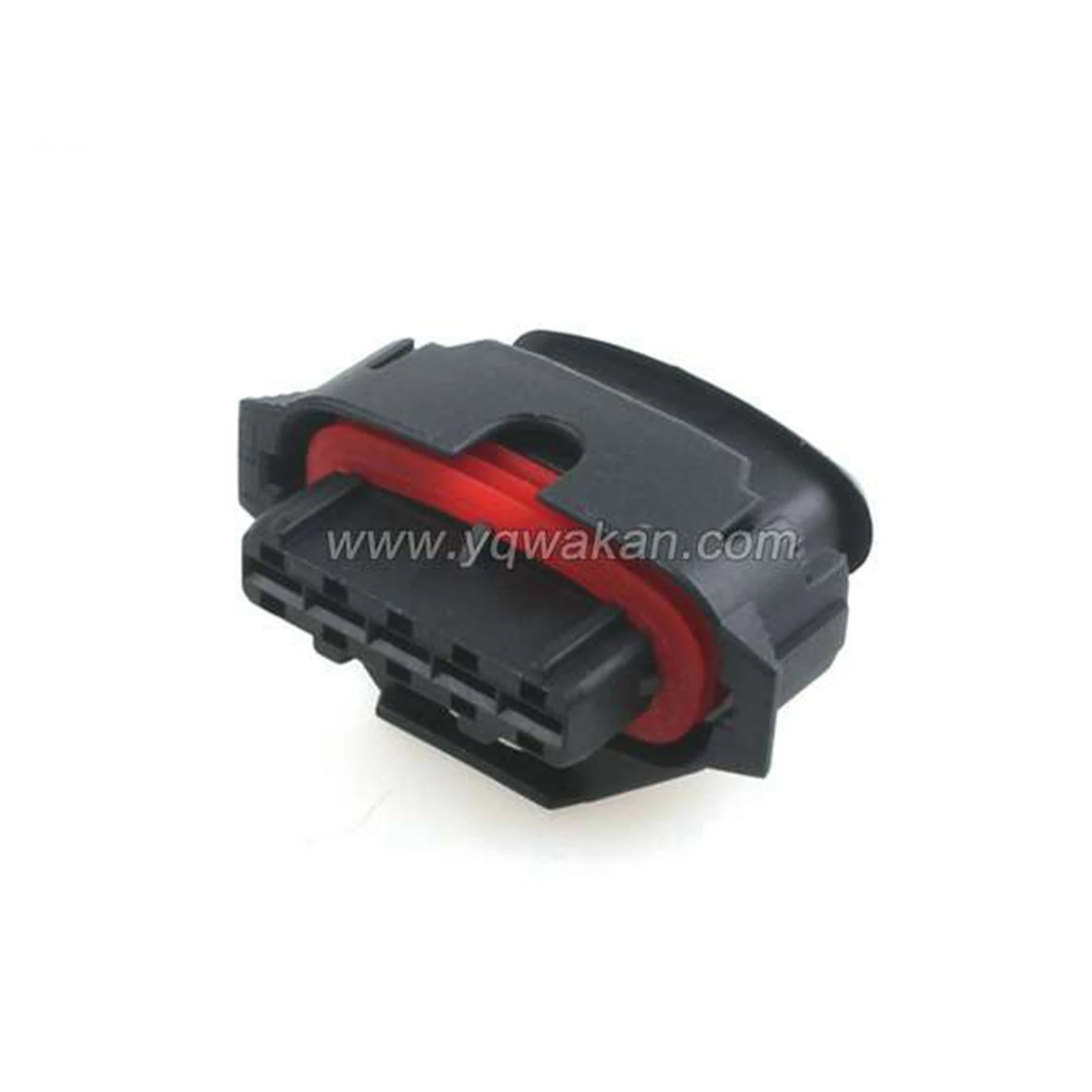

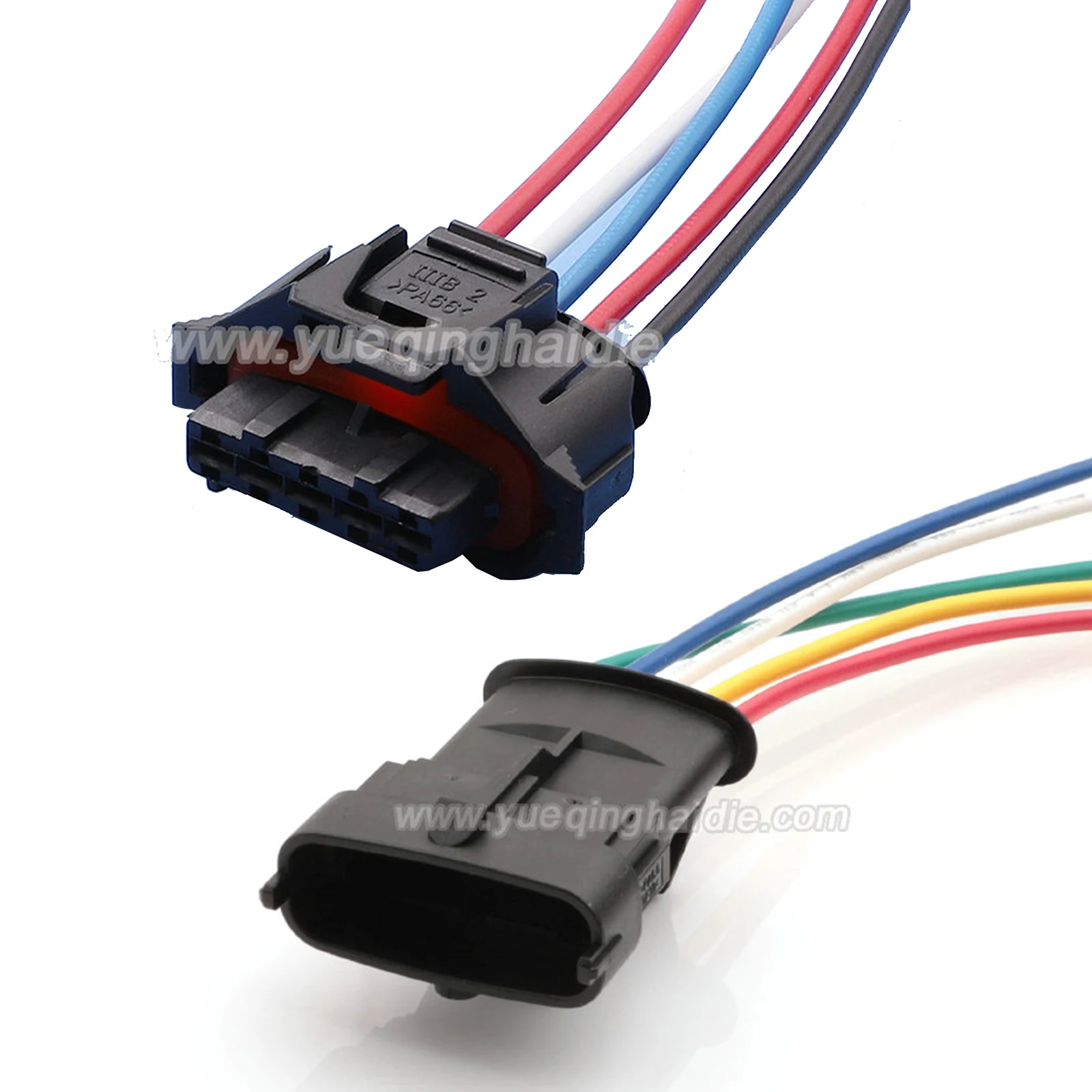

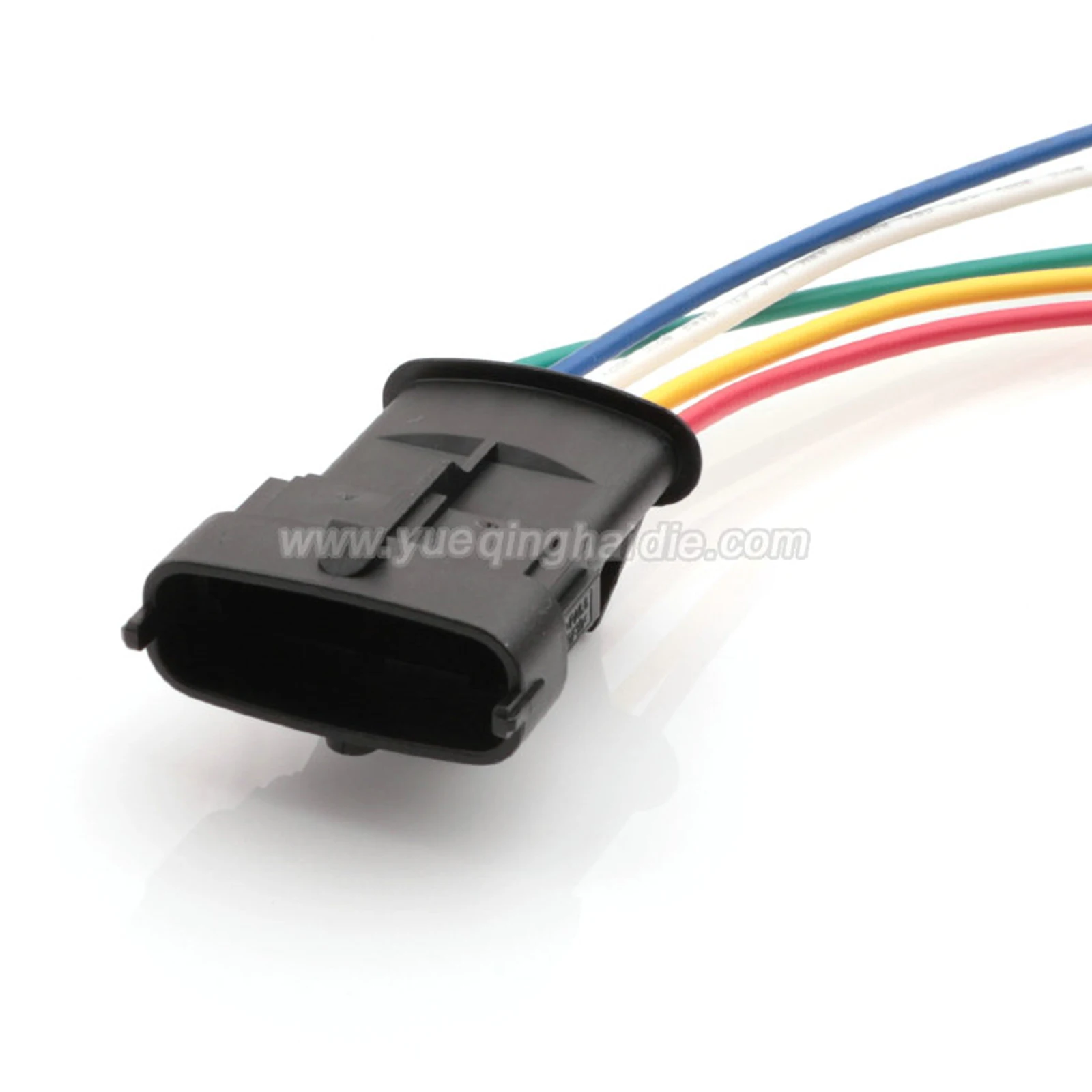

5-Pin Waterproof Igniter & Pedal Connector – Toyota Hilux Vigo OEM 7283-1056-30 / 90980-11232

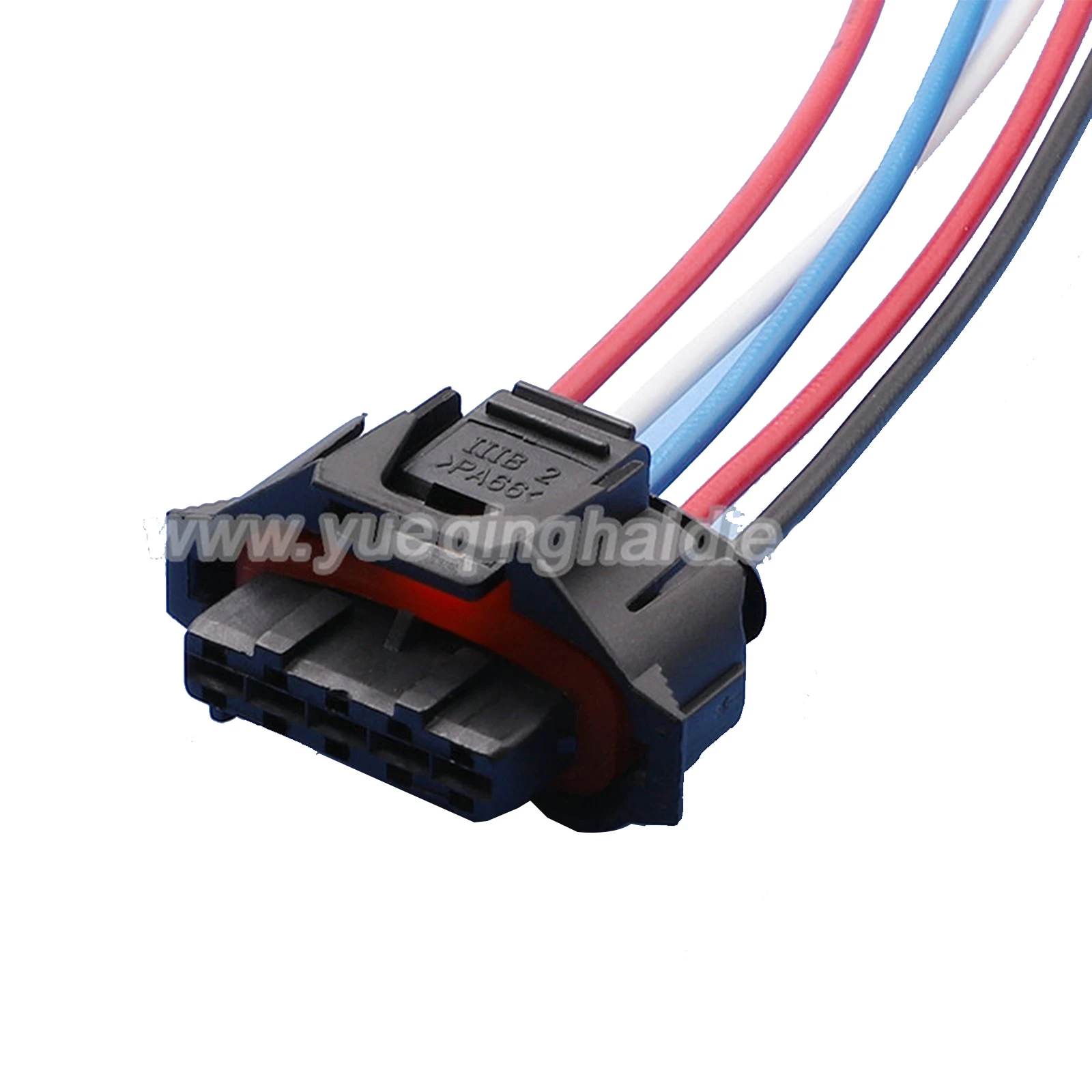

Direct-fit replacement for Toyota/Yazaki OEM part numbers 7283-1056-30 (Yazaki) and 90980-11232 (Toyota), a 5-pin IP68 waterproof female connector used for igniter module, accelerator pedal position sensor, and body harness connections on Toyota Hilux Vigo and related platforms. Both part numbers reference the same connector.

Key Specifications

• OEM Part Numbers: 7283-1056-30 (Yazaki) / 90980-11232 (Toyota)
• Pin Count: 5
• Gender: Female (with wire)
• Wire Gauge: 20 AWG (0.5 mm²)
• Wire Length: 5.5 inches (140 mm)
• Waterproof Rating: IP68
• Housing Material: PA66 glass-filled nylon
• Terminal Material: Copper alloy, tin-plated
• Current Rating: Up to 5A per pin

Igniter / Pedal Sensor Pin Assignment (5-Pin)

7283-1056-30 vs 90980-11232 – Same Connector, Two Part Number Systems

7283-1056-30 is the Yazaki supplier part number; 90980-11232 is the Toyota OEM part number for the same connector. Toyota uses the 909xx prefix for electrical connectors sourced from Yazaki. Both numbers refer to the identical connector and are interchangeable when ordering.

Compatible Toyota Applications

• Toyota Hilux Vigo (AN10/AN20, 2004–2015): Igniter module and accelerator pedal harness connector
• Toyota Fortuner (AN50/AN60): Igniter and body harness connector
• Toyota Land Cruiser Prado (J120): Igniter module harness connector

Diagnosis – Igniter Faults

• No spark / engine cranks but won't start: Check 12V at Pin 1 with ignition on – no voltage indicates ignition relay or fuse fault upstream of the connector
• Toyota fault codes: P0351–P0356 (Ignition Coil Primary Circuit) – inspect 7283-1056-30 connector before replacing igniter module
• Intermittent no-start after rain: Inspect wire seal integrity – moisture ingress at the igniter connector causes intermittent ignition faults

FAQ

Q: Is 7283-1056-30 the same as Toyota 90980-11232?
A: Yes – 7283-1056-30 is the Yazaki supplier part number; 90980-11232 is the Toyota OEM part number for the identical connector. Both are interchangeable.

Q: What does the Toyota 909xx prefix mean on connector part numbers?
A: Toyota uses the 909xx prefix for electrical connectors and wiring harness components sourced from Yazaki. The 90980-xxxxx series specifically covers Yazaki connector housings used across Toyota platforms.

Package Contents

1 × 5-Pin Female Connector (7283-1056-30 / 90980-11232) with 20 AWG wire and terminal insert
