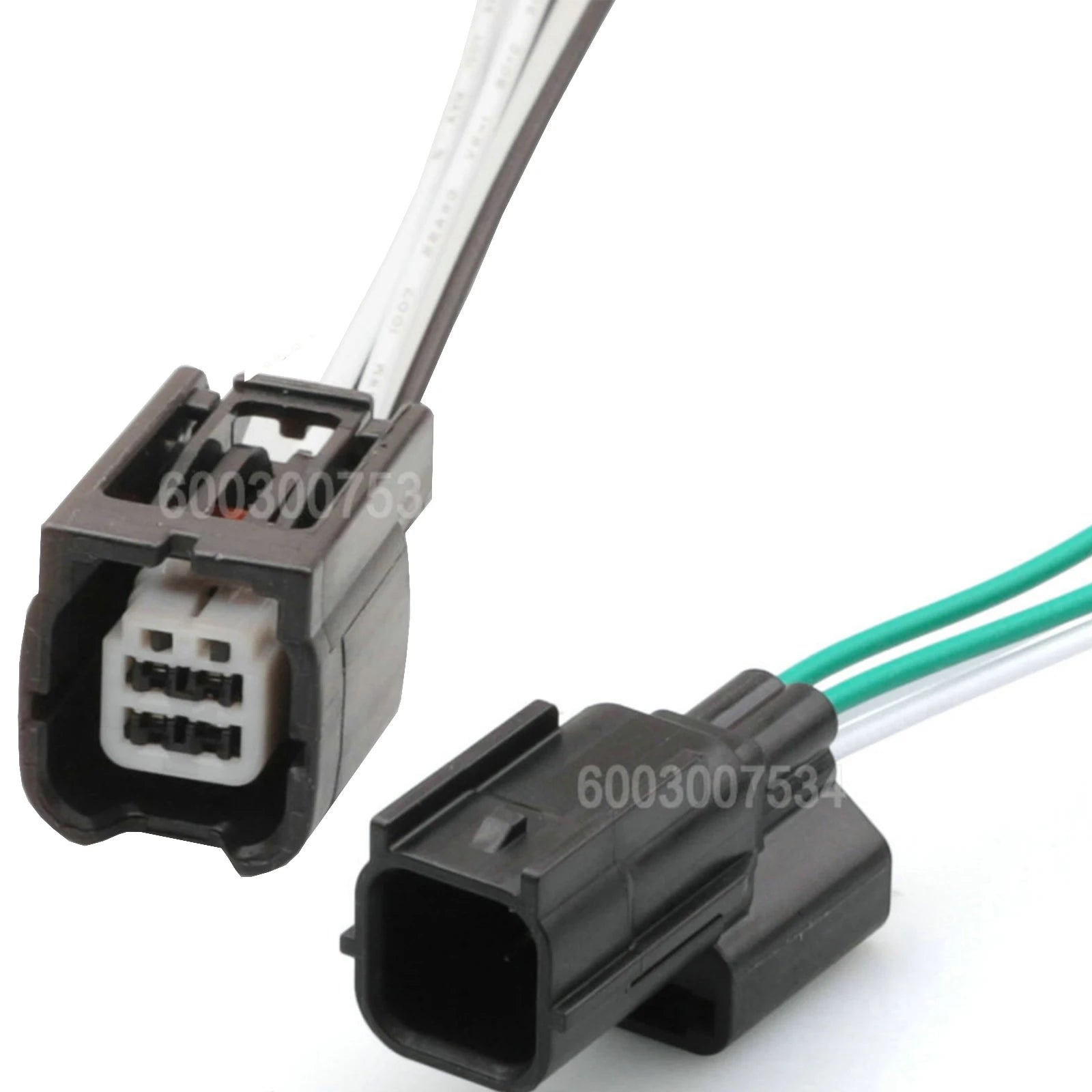

4-Pin 0.6mm Waterproof Sensor Connector – Nissan Honda Toyota OEM 7282-2763-30 / 7283-2763-30

Direct-fit replacement for Yazaki OEM part numbers 7282-2763-30 (male housing) and 7283-2763-30 (female housing), a 4-pin 0.6mm pitch IP68 waterproof miniature connector used for sensor harness connections on Nissan, Honda, and Toyota platforms. The suffix -30 indicates the wire seal colour variant.

Key Specifications

• OEM Part Numbers: 7282-2763-30 (male) / 7283-2763-30 (female)
• Pin Count: 4
• Gender: Male & Female set (with wire)
• Terminal Pitch: 0.6mm
• Wire Gauge: 22–24 AWG (0.2–0.3 mm²)
• Wire Length: 5.5 inches (140 mm)
• Waterproof Rating: IP68
• Housing Material: PA66 glass-filled nylon
• Terminal Material: Copper alloy, tin-plated
• Current Rating: Up to 1A per pin (signal circuits only)

Yazaki Suffix Decoded – What Does -30 Mean?

In Yazaki part numbering, the suffix after the main part number indicates the wire seal colour/variant: -30 = black wire seal. Other common suffixes: -40 = grey seal, -70 = natural/white seal. The suffix does not affect electrical performance – only the seal colour differs.

Compatible Applications

• Nissan: Miniature sensor harness connectors – speed sensor, position sensor, temperature sensor sub-harness
• Honda: ECU sub-harness and sensor signal connectors
• Toyota: Sensor harness connectors for body control and instrument cluster circuits

0.6mm Pitch – Critical Handling Notes

• Crimping tool: Requires a precision micro-crimper rated for 0.2–0.3 mm² – standard crimpers will crush the terminal
• Wire stripping: Strip no more than 3mm of insulation
• Not for power circuits: 0.6mm terminals are rated for signal circuits only (max 1A)

Diagnosis – Common Faults

• Intermittent sensor codes: Inspect 0.6mm terminal contact pressure – micro-terminals are prone to spread from vibration
• Moisture ingress despite IP68 rating: Inspect wire seal integrity – a cracked or missing rubber seal allows moisture ingress even on a rated connector

FAQ

Q: Is 7282-2763-30 the male or female connector?

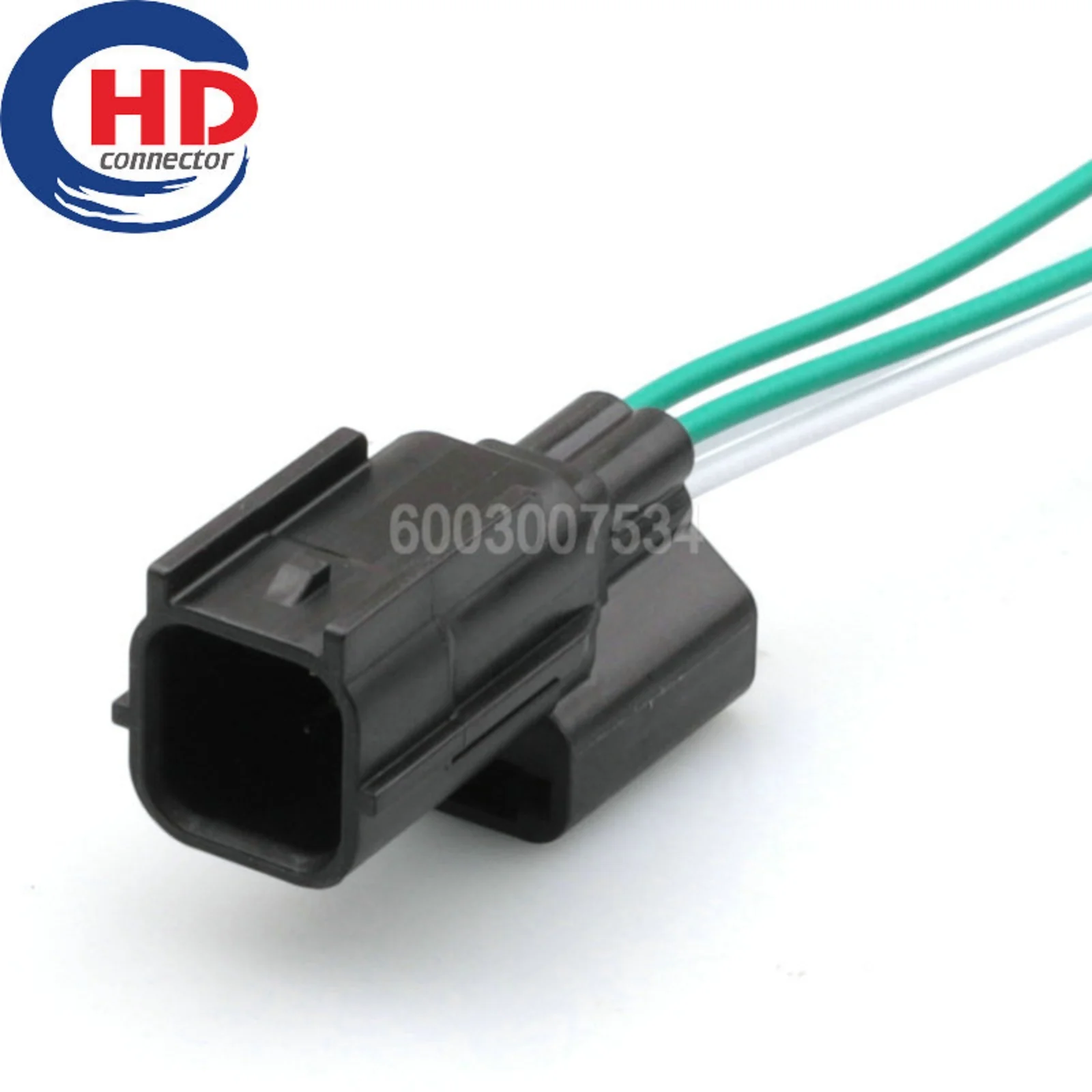

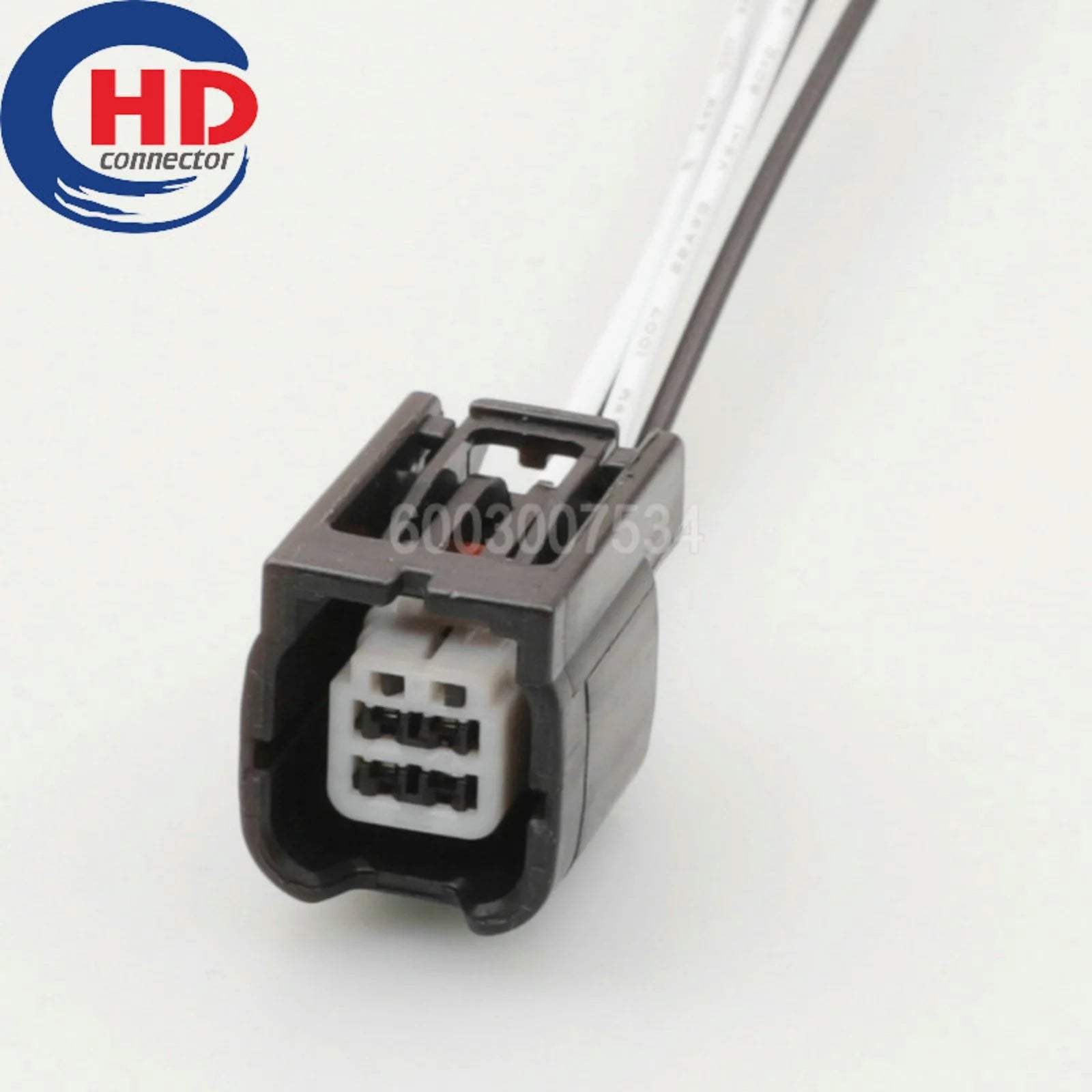

A: 7282-2763-30 is the male (pin side); 7283-2763-30 is the female (socket side). This follows the standard Yazaki 7282/7283 naming convention.

Q: What does the -30 suffix mean on Yazaki connectors?
A: The -30 suffix indicates the black wire seal colour variant. It does not affect electrical performance – only the seal colour differs from other suffix variants (-40 grey, -70 natural).

Package Contents

1 × 4-Pin Male Connector (7282-2763-30) + 1 × 4-Pin Female Connector (7283-2763-30), each with 22 AWG wire and terminal insert
