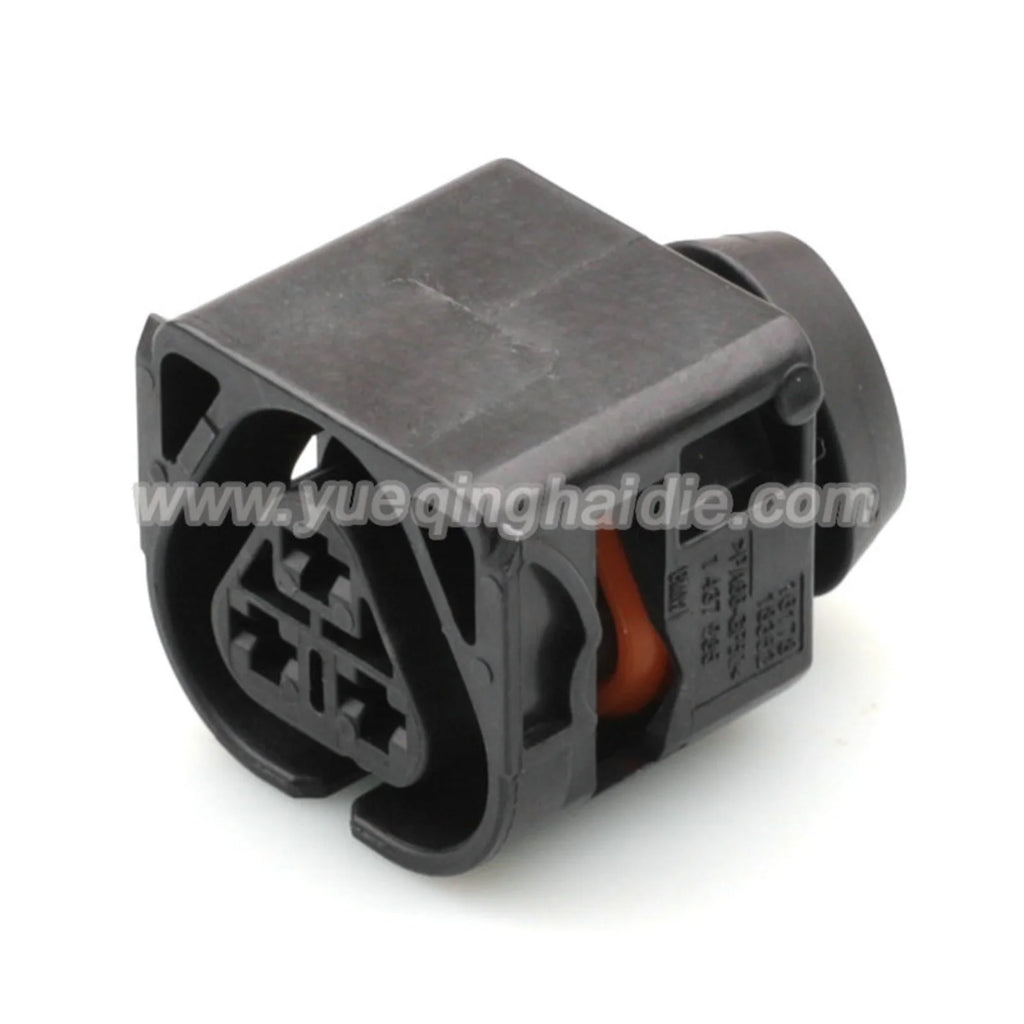

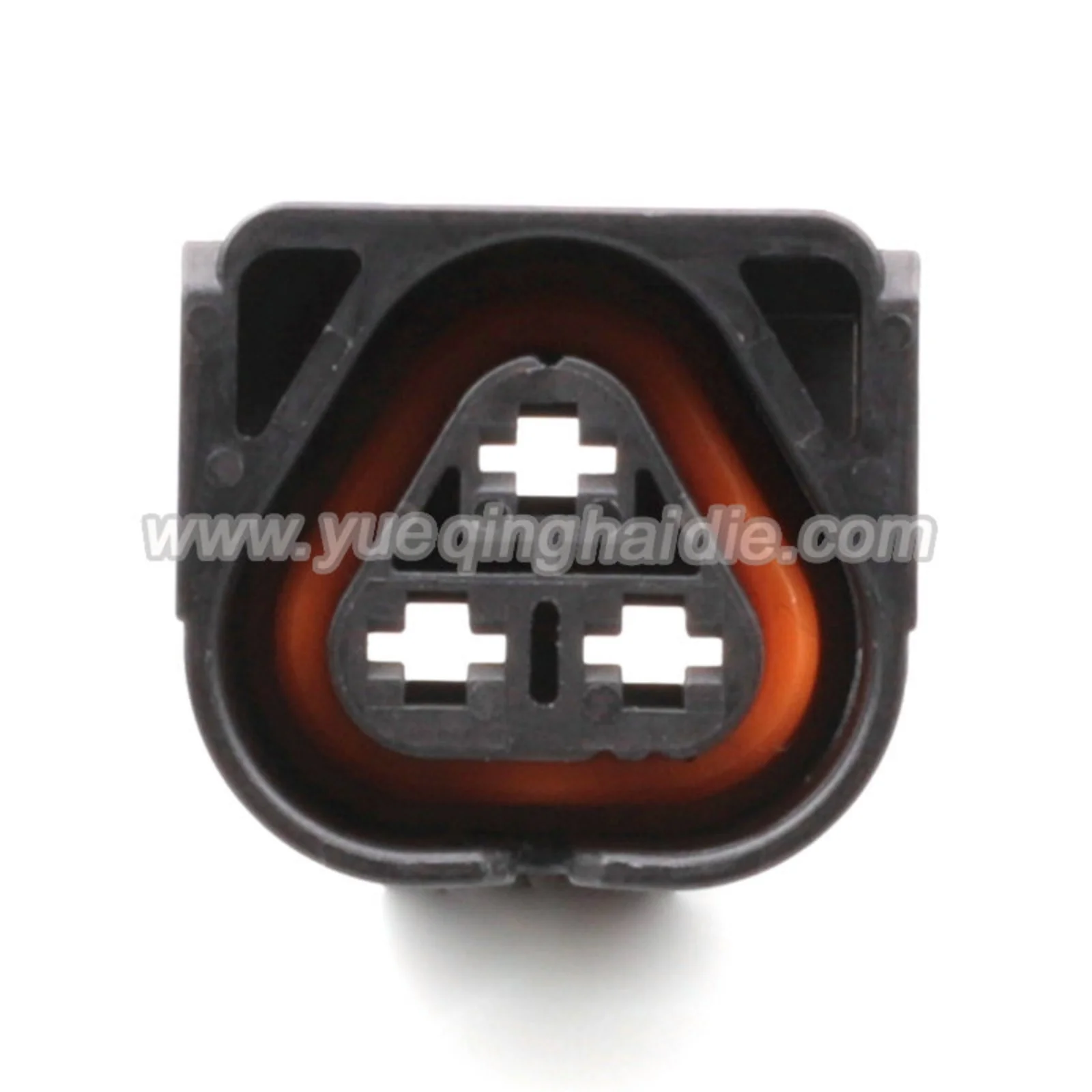

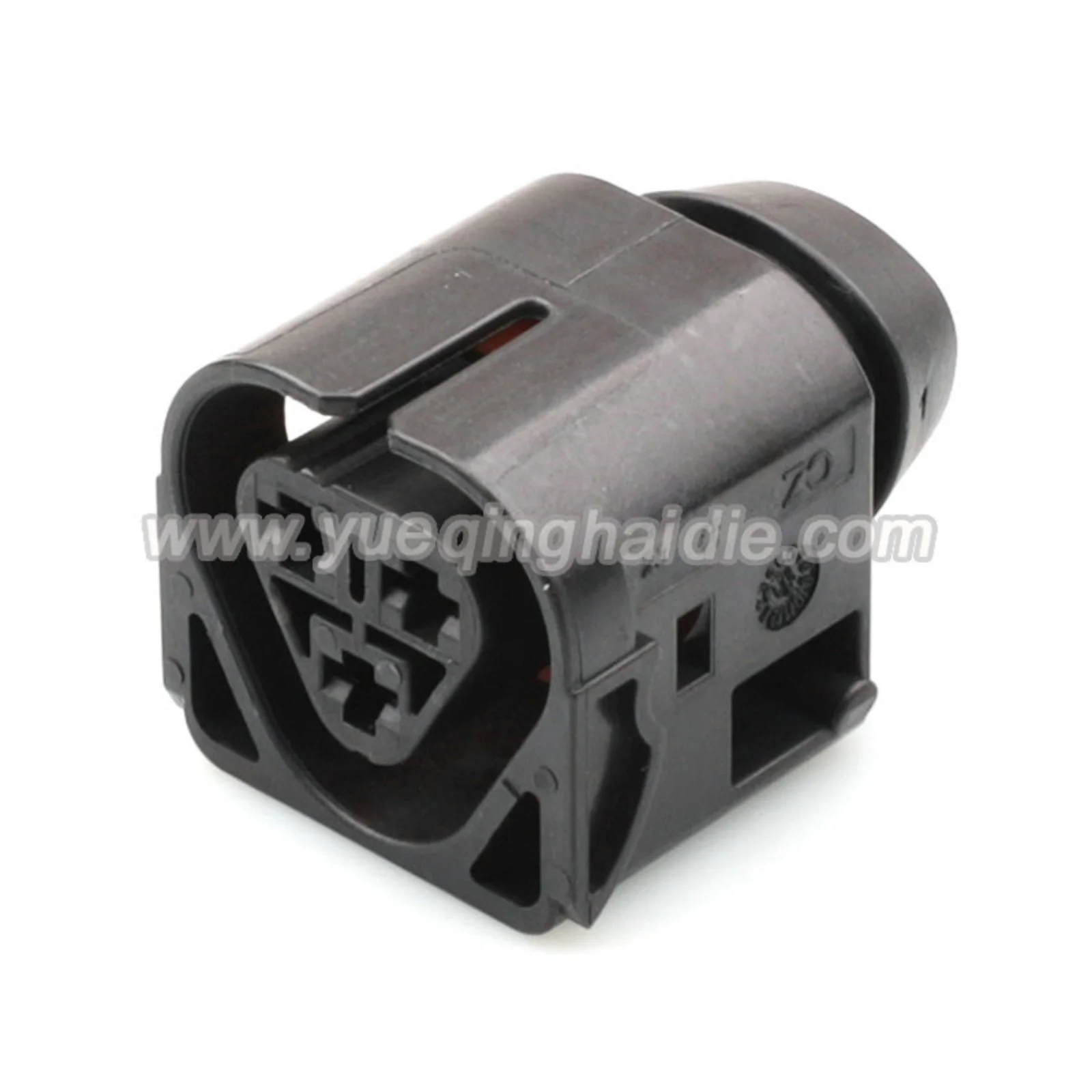

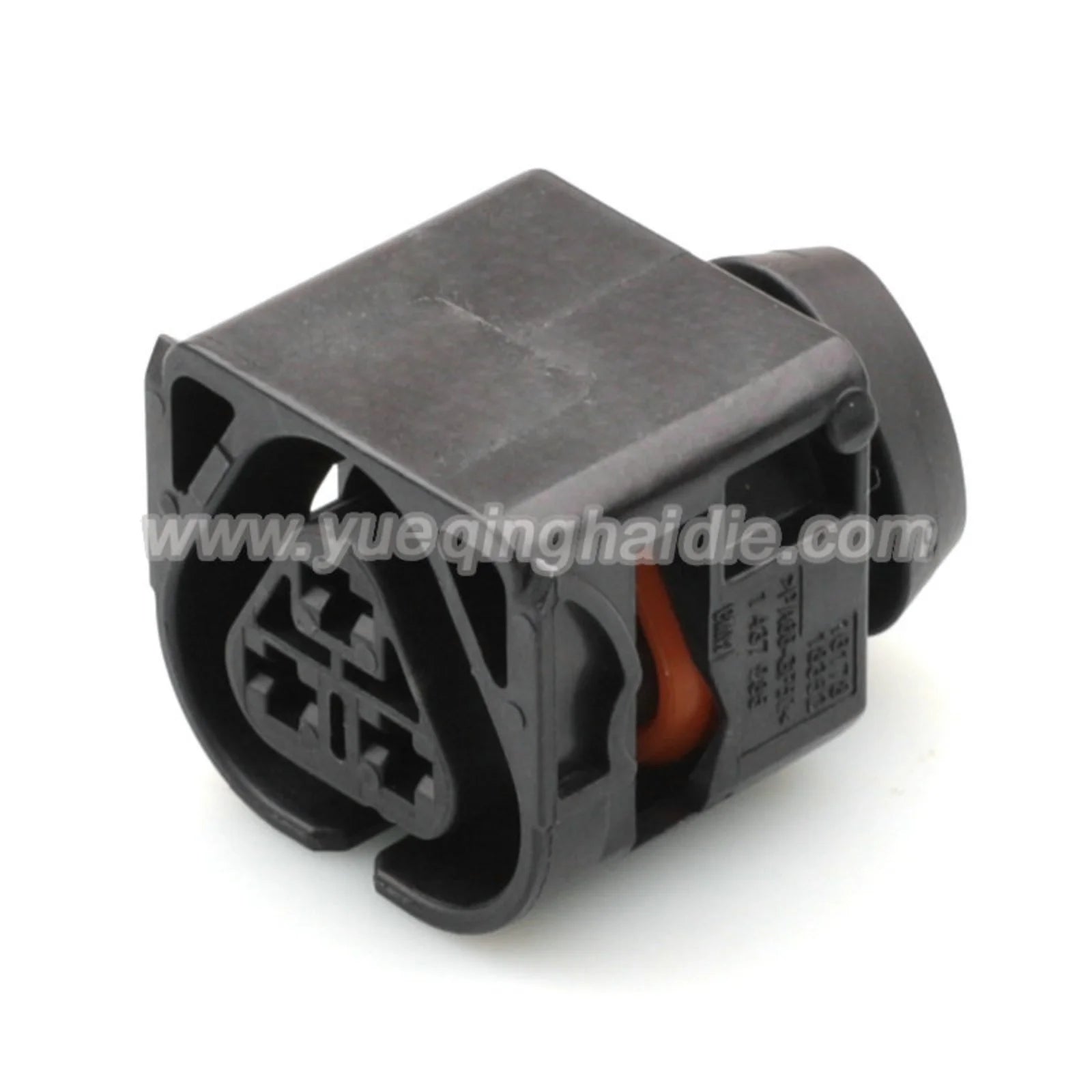

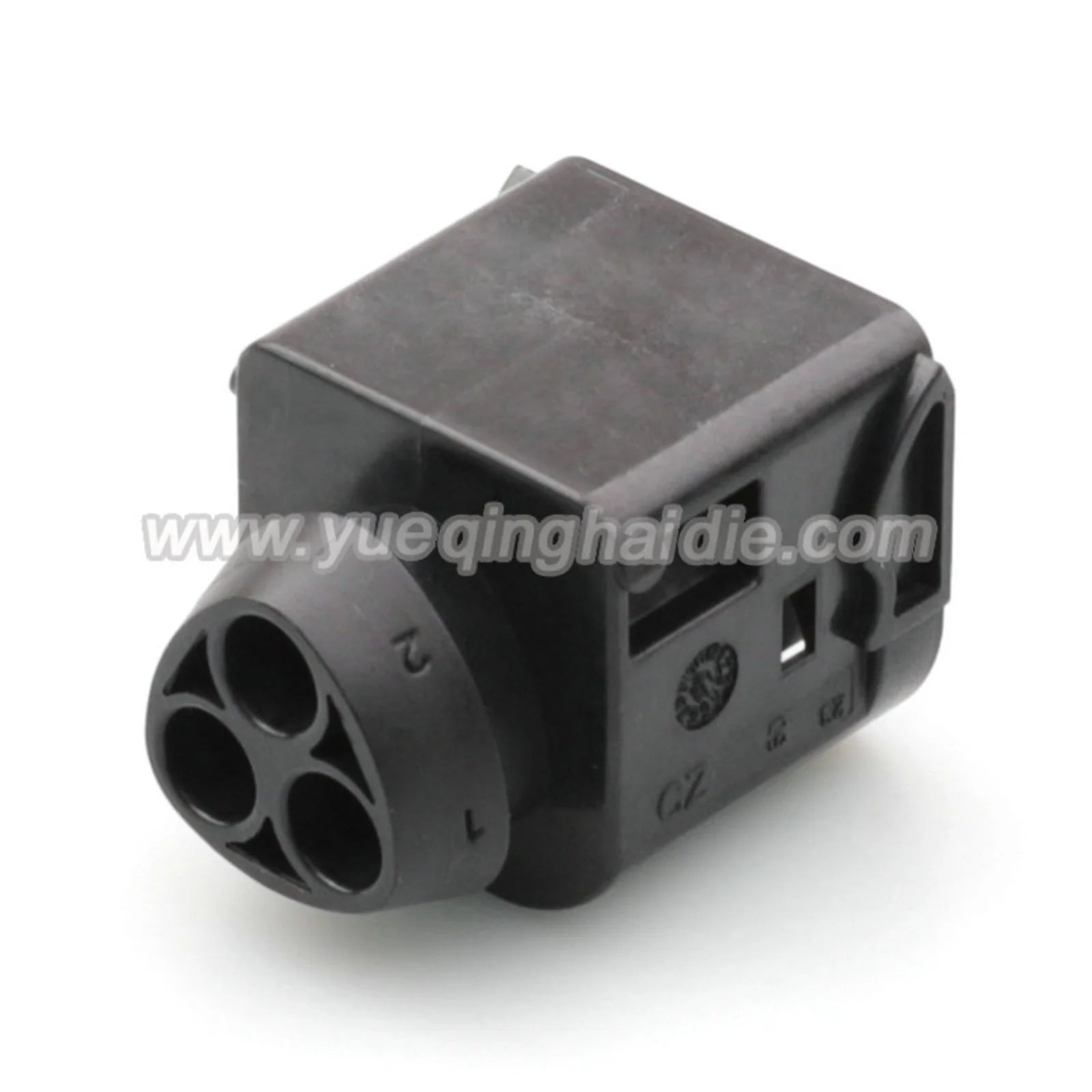

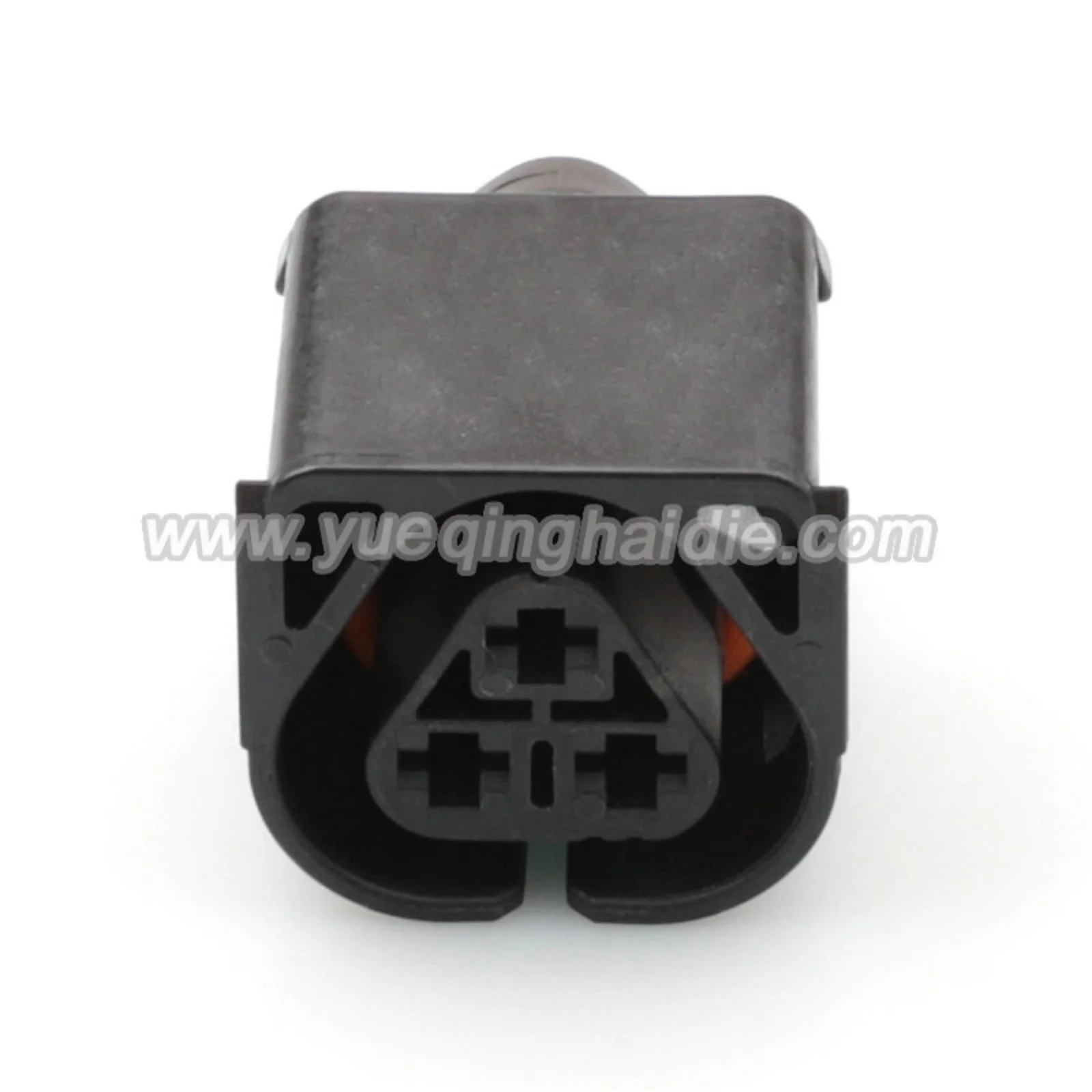

3-Pin 3.5mm Waterproof Ignition Coil Connector – BMW N20 N55 B38 B48 OEM 12521437985

Direct-fit replacement for BMW OEM part number 12521437985, a 3-pin 3.5mm pitch waterproof female connector used for ignition coil harness connections on BMW N20, N55, B38, and B48 engine families. The IP68 rubber wire seals maintain moisture protection in the high-heat, high-vibration environment of the engine bay ignition coil rail.

Key Specifications

• OEM Part Number: 12521437985 (BMW)
• Pin Count: 3
• Gender: Female (with wire)
• Terminal Pitch: 3.5mm
• Wire Gauge: 16 AWG (1.5 mm²)
• Wire Length: 5.5 inches (140 mm)
• Waterproof Rating: IP68
• Housing Material: PA66 glass-filled nylon
• Terminal Material: Copper alloy, tin-plated
• Current Rating: Up to 8A per pin

Ignition Coil Pin Assignment (3-Pin)

Compatible BMW Applications

• BMW N20: 4-cylinder turbocharged engine (1 Series, 3 Series, 5 Series, X1, X3 – 2011–2017)
• BMW N55: 6-cylinder turbocharged engine (1M, 3 Series, 5 Series, X5, X6 – 2009–2016)
• BMW B38: 3-cylinder turbocharged engine (1 Series, 2 Series, Mini – 2013+)
• BMW B48: 4-cylinder turbocharged engine (1 Series, 3 Series, 5 Series, X1, X3 – 2014+)

Ignition Coil Failure – Diagnosis

• Misfire on one cylinder only: Swap the ignition coil to an adjacent cylinder – if the misfire follows the coil, replace the coil; if it stays on the same cylinder, inspect the connector and wiring first
• BMW fault codes: 29CD / 29CE / 29CF / 29D0 (Cylinder 1–4 ignition coil primary circuit) – check connector integrity before replacing coil
• Connector melting or discoloration: Caused by high contact resistance from a loose or corroded terminal – replace the connector assembly and verify terminal crimp quality
• Intermittent misfire after rain: Inspect wire seal integrity – moisture ingress at the connector causes intermittent trigger signal faults

FAQ

Q: Is 12521437985 the ignition coil or the connector?
A: 12521437985 is the BMW OEM part number for the ignition coil connector (the wiring harness plug that connects to the coil), not the coil itself. The coil part number is separate (e.g., 12138616153 for N20).

Q: Will this connector fit all 4 ignition coils on an N20 engine?
A: Yes – all 4 cylinders on the N20 use the same 3-pin connector. One set of 4 connectors is required for a full harness repair.

Q: What causes BMW ignition coil connectors to melt?
A: The primary cause is high contact resistance from a loose or corroded terminal, which generates heat at the connection point. Always inspect and replace the connector when replacing the ignition coil to prevent recurrence.

Package Contents

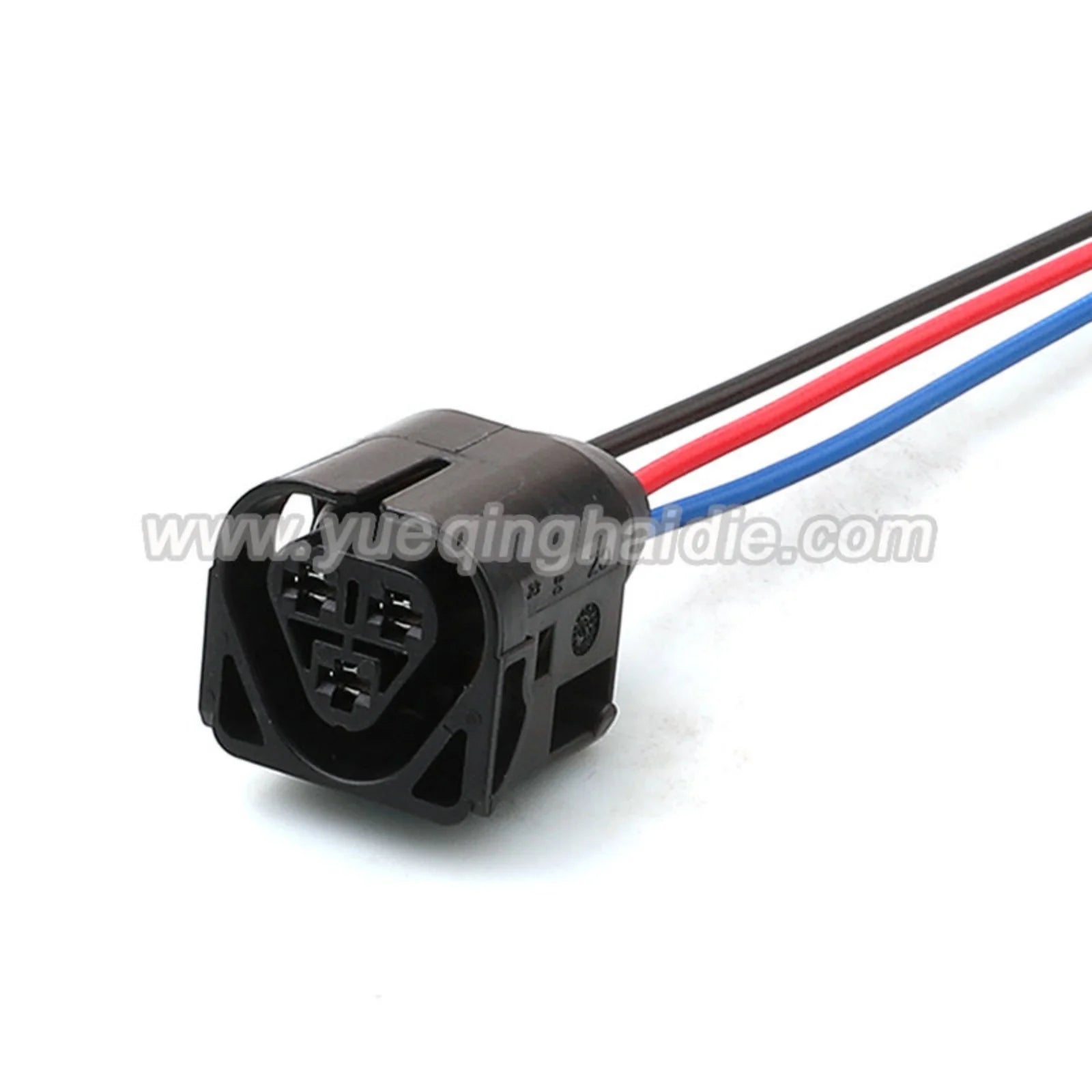

1 × 3-Pin Female Connector (OEM 12521437985) with 16 AWG wire and terminal insert
