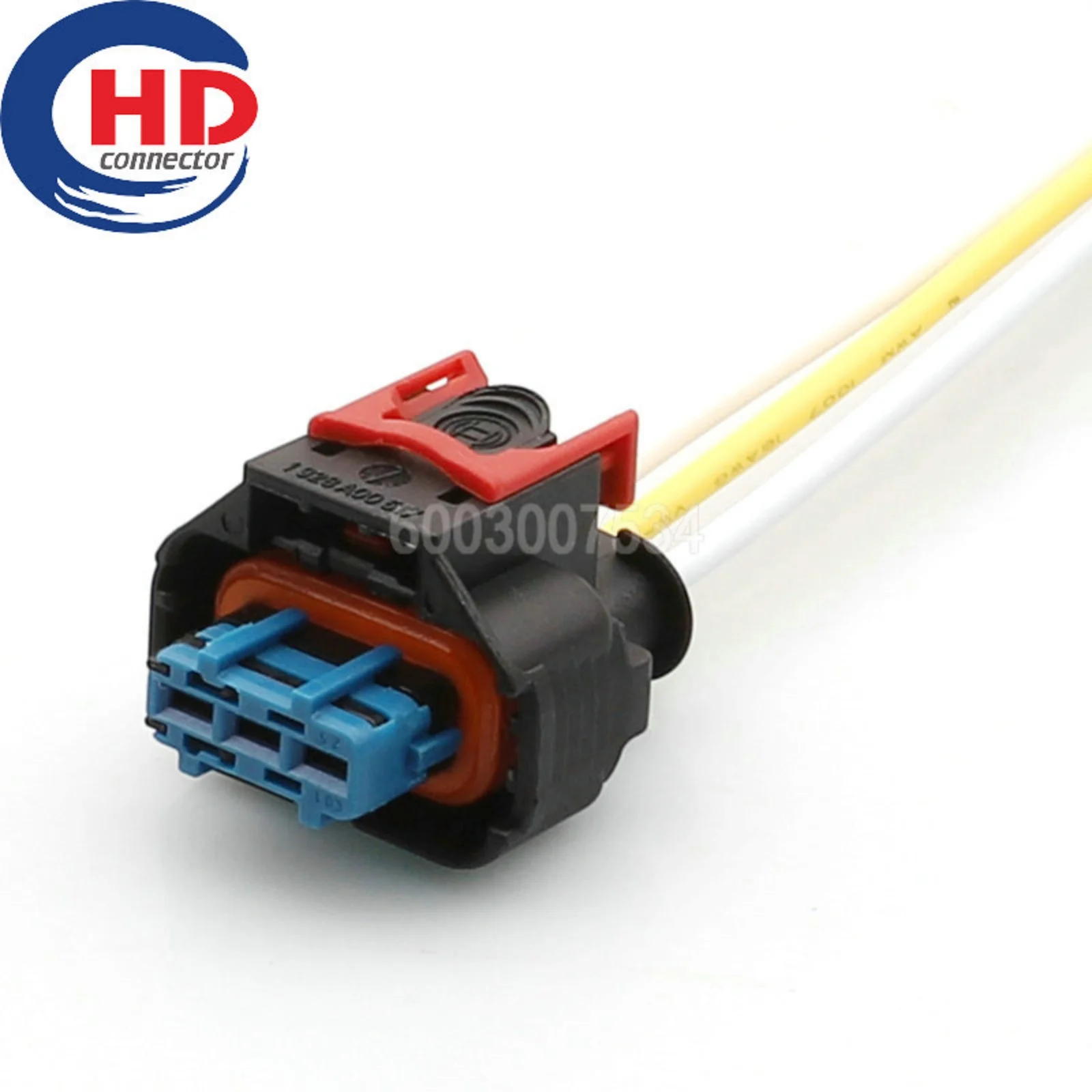

3-Pin Waterproof Connector – Delphi OEM 1928405523 Automotive Sensor Harness

Direct-fit replacement for Delphi part number 1928405523 (also written as 1 928 405 523), a 3-pin IP68 waterproof connector used for sensor, actuator, and body harness connections across multiple automotive platforms. The Delphi 192840xxxx series is one of the most widely used waterproof connector families in European and American OEM harness applications.

Key Specifications

• OEM Part Number: 1928405523 / 1 928 405 523 (Delphi)
• Pin Count: 3
• Wire Gauge: 20 AWG (0.5 mm²)
• Wire Length: 5.5 inches (140 mm)
• Waterproof Rating: IP68
• Housing Material: PA66 glass-filled nylon
• Terminal Material: Copper alloy, tin-plated
• Current Rating: Up to 5A per pin

Pin Assignment Reference (3-Pin Sensor)

1928405523 vs 1 928 405 523 – Same Part, Two Formats

Both 1928405523 and 1 928 405 523 refer to the identical Delphi connector. The spaced format (1 928 405 523) is the standard Delphi/Bosch part number notation used in OEM catalogues; the continuous format (1928405523) is commonly used in aftermarket search queries. Both formats are interchangeable when ordering.

Delphi 192840xxxx Series – Application Range

The Delphi 192840xxxx series covers waterproof connectors from 1-pin to 12-pin used across GM, Ford, VW, Opel/Vauxhall, and Renault platforms. The last four digits identify the specific pin count and housing variant. This series is also cross-referenced with Bosch connector part numbers on some European platforms.

Diagnosis – Common Faults

• Intermittent sensor codes after rain: Inspect wire seal integrity – moisture ingress causes intermittent open-circuit faults
• P0100–P0118 (MAF/ECT Circuit): Check connector before replacing sensor – a corroded Delphi connector is a common root cause on GM and VW platforms

FAQ

Q: Is 1928405523 a Delphi or Bosch part number?
A: 1928405523 is a Delphi part number. Bosch uses a different numbering system (e.g., 1 928 498 xxx). However, some Delphi connectors are cross-referenced with Bosch equivalents on European platforms – confirm the housing profile matches before ordering.

Package Contents

1 × 3-Pin Waterproof Connector (1928405523) with 20 AWG wire and terminal insert
