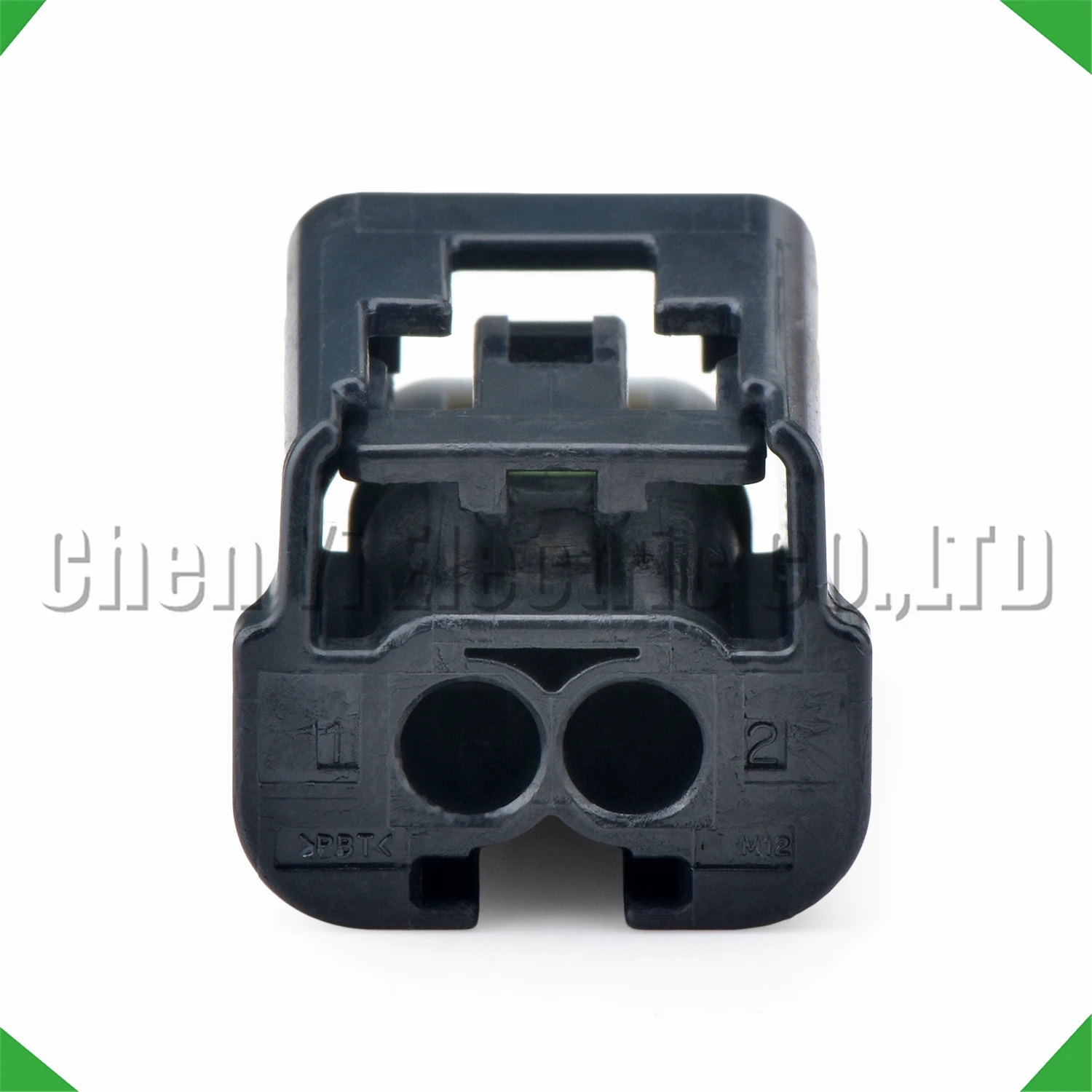

Mazda / Ford 2-Pin Ignition System Wire Harness Connector – Female OEM

Mazda and Ford share significant platform and component overlap through their historical alliance, including ignition system connector standards. This 2-pin female connector is used in Mazda and Ford ignition coil and ignition module harnesses, carrying the ignition trigger signal and power/ground circuits for individual coil-on-plug (COP) or distributor ignition systems. Available bare or with 15cm pre-wired leads.

Key Specifications

Ignition Connector Failure – The Misfire Diagnosis Chain

When a 2-pin ignition coil connector corrodes on Mazda or Ford platforms, the failure follows a predictable diagnostic chain. First, the affected cylinder begins misfiring intermittently under load – the ECU logs a P030x misfire code for that cylinder. Technicians often replace the ignition coil first (the most common misfire cause), but if the connector is the root cause, the new coil will also misfire. The correct diagnostic sequence is: inspect the connector first, then swap the coil to an adjacent cylinder to confirm whether the misfire follows the coil or stays with the cylinder. If the misfire stays with the cylinder after coil swap, the connector or wiring is the cause.

Variant Guide

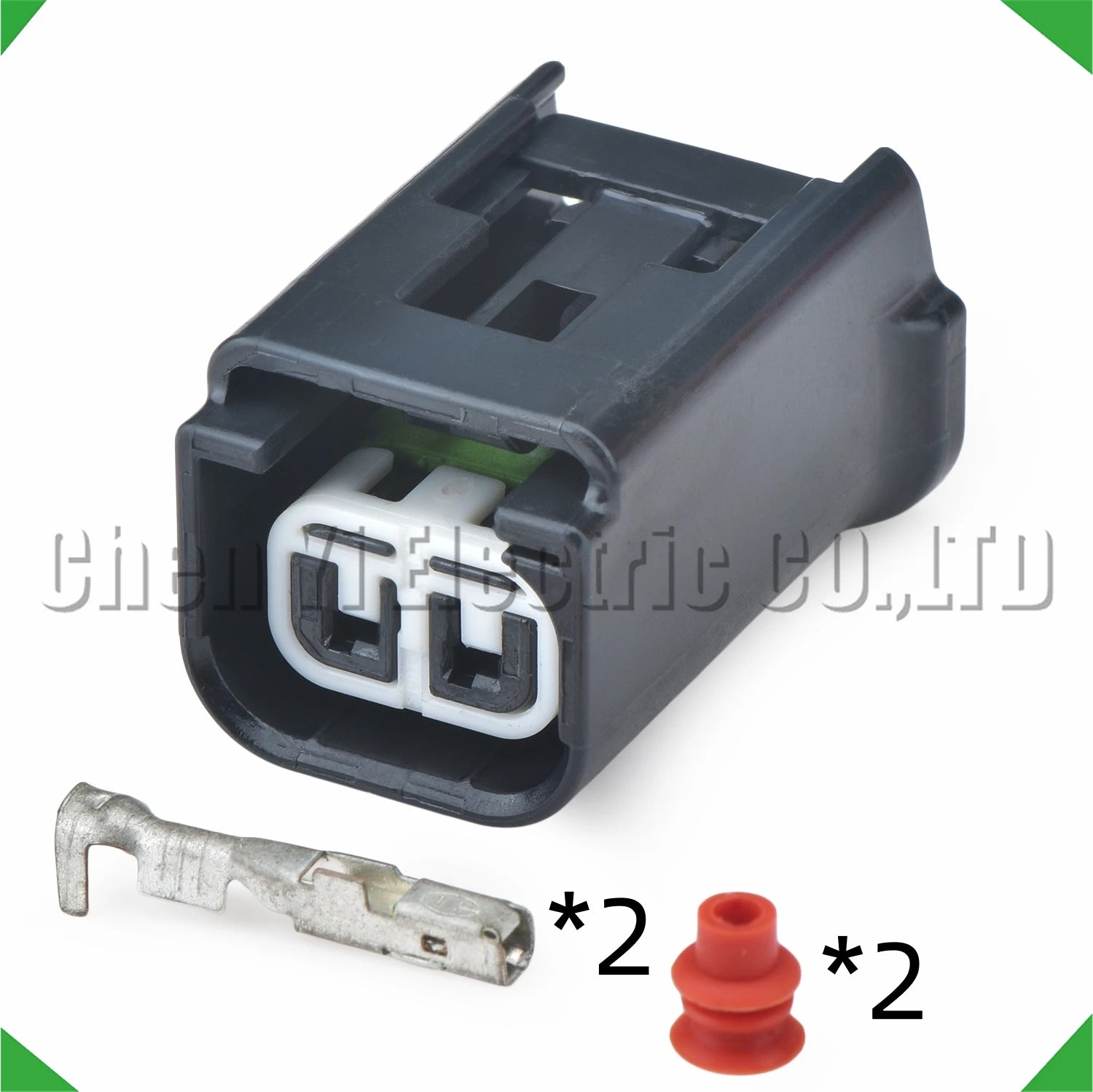

• Female – Bare 2-pin housing with terminals

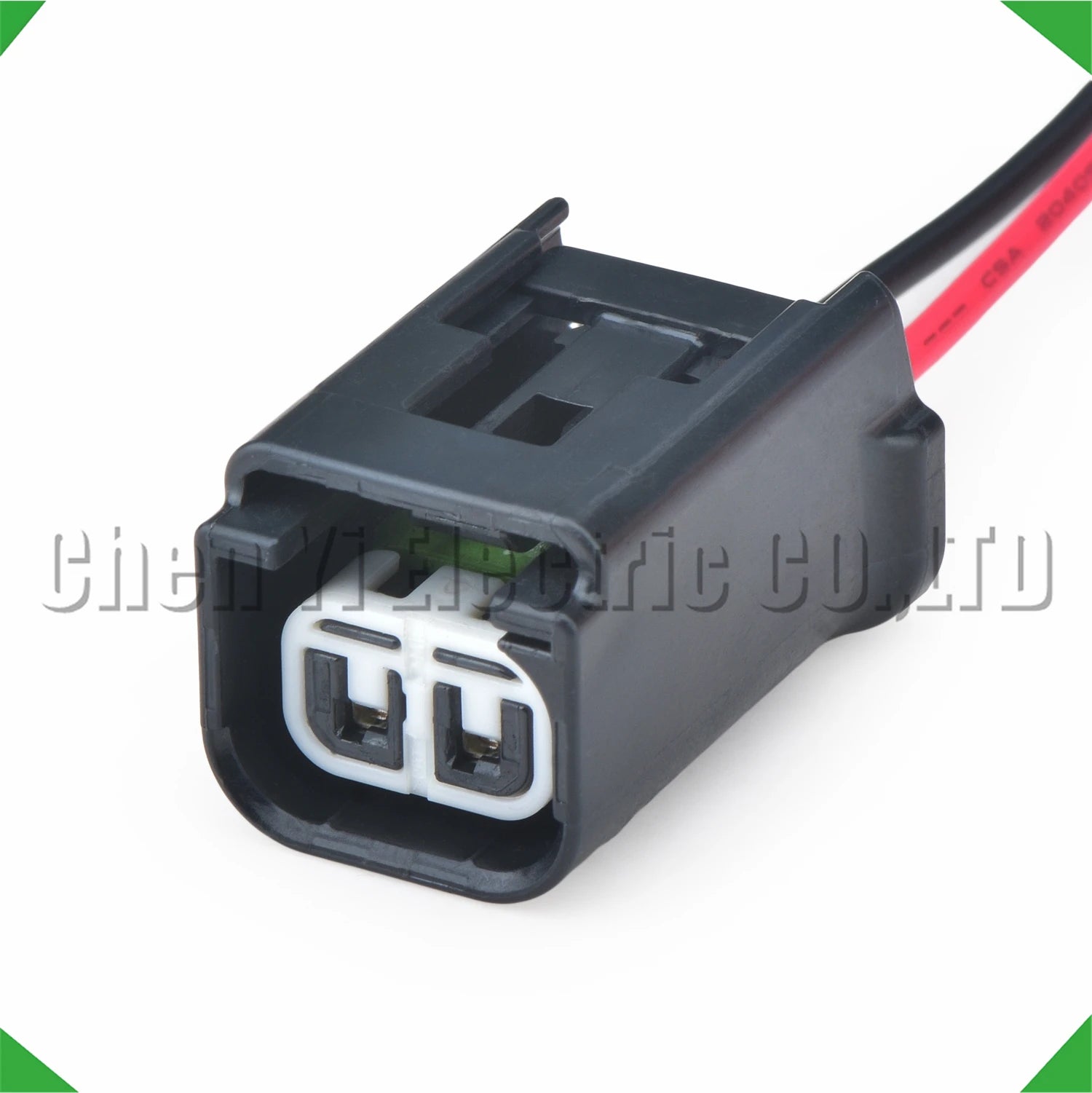

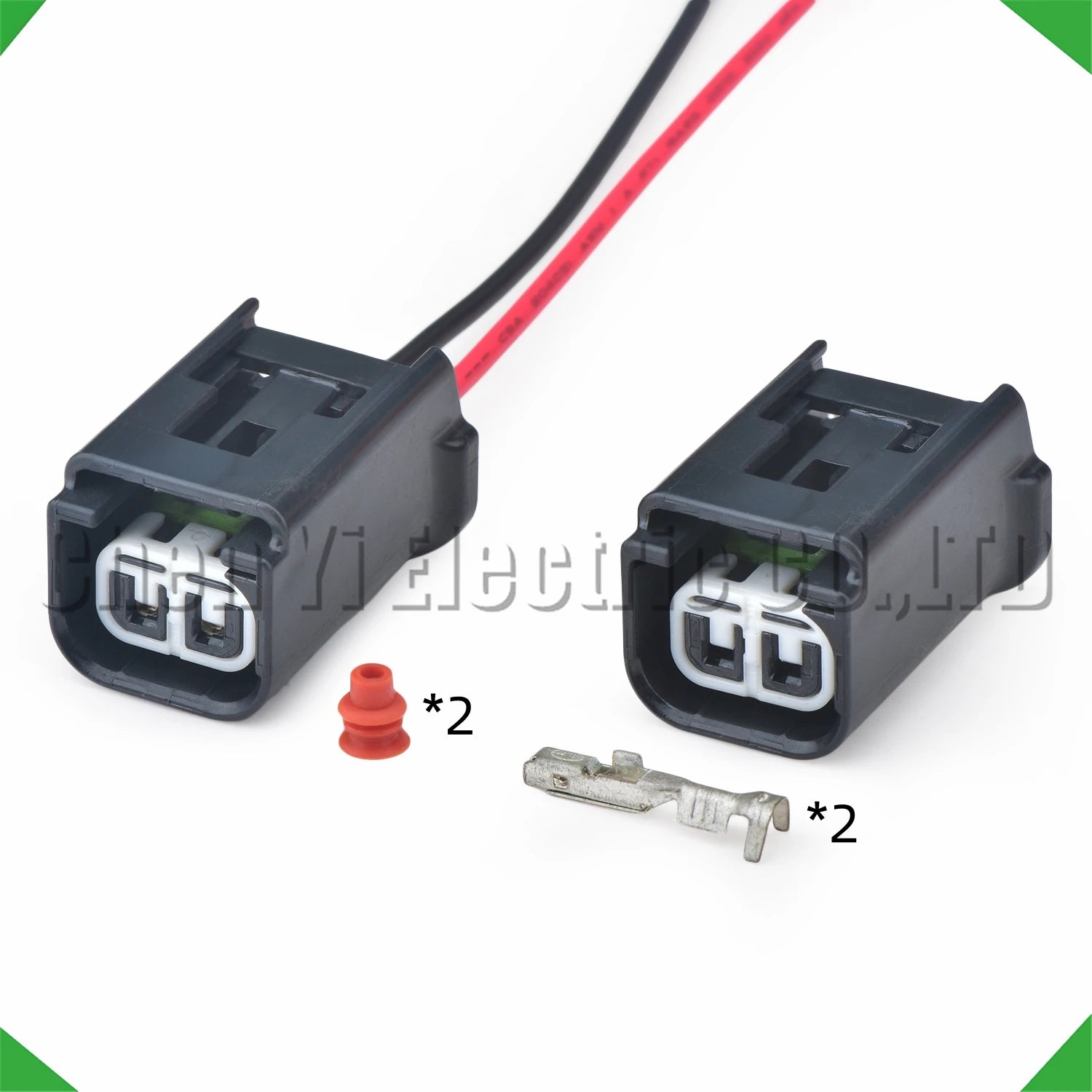

• Female 15CM – Pre-wired with 15cm leads for direct splice-in installation

Installation Steps

1. Disconnect the vehicle battery
2. Allow the ignition coil to cool before working near it
3. Locate the 2-pin ignition connector on the affected coil or module harness
4. Release the locking tab and unplug the original connector
5. Transfer terminals to the new housing or splice in the pre-wired variant
6. Clear P030x misfire codes with Mazda IDS or Ford IDS/FDRS and run a drive cycle to confirm resolution

Frequently Asked Questions

Q: What Mazda and Ford models use this 2-pin ignition connector?
A: This connector is used on Mazda 3, 6, CX-5, CX-7, and Ford Focus, Fiesta, Mondeo, Escape ignition coil harnesses. Cross-reference your vehicle’s wiring diagram to confirm fitment.

Q: What fault codes indicate a failed ignition connector?
A: Common codes include P0300–P0306 (cylinder misfire), P0351–P0356 (ignition coil primary circuit), and individual cylinder misfire counters on Mazda IDS or Ford IDS/FDRS diagnostic systems.

Q: Are terminals included?
A: Yes, terminals are included with all variants.

Compatible Applications

• Mazda 3 / 6 / CX-5 / CX-7 – Coil-on-plug ignition harness
• Ford Focus / Fiesta / Mondeo / Escape – Ignition coil connector
• Mazda-Ford platform shared ignition harness applications
