Land Rover / Ford 16-Pin Audio Amplifier Wire Harness Connector – OEM 68250125AF | Male & Female

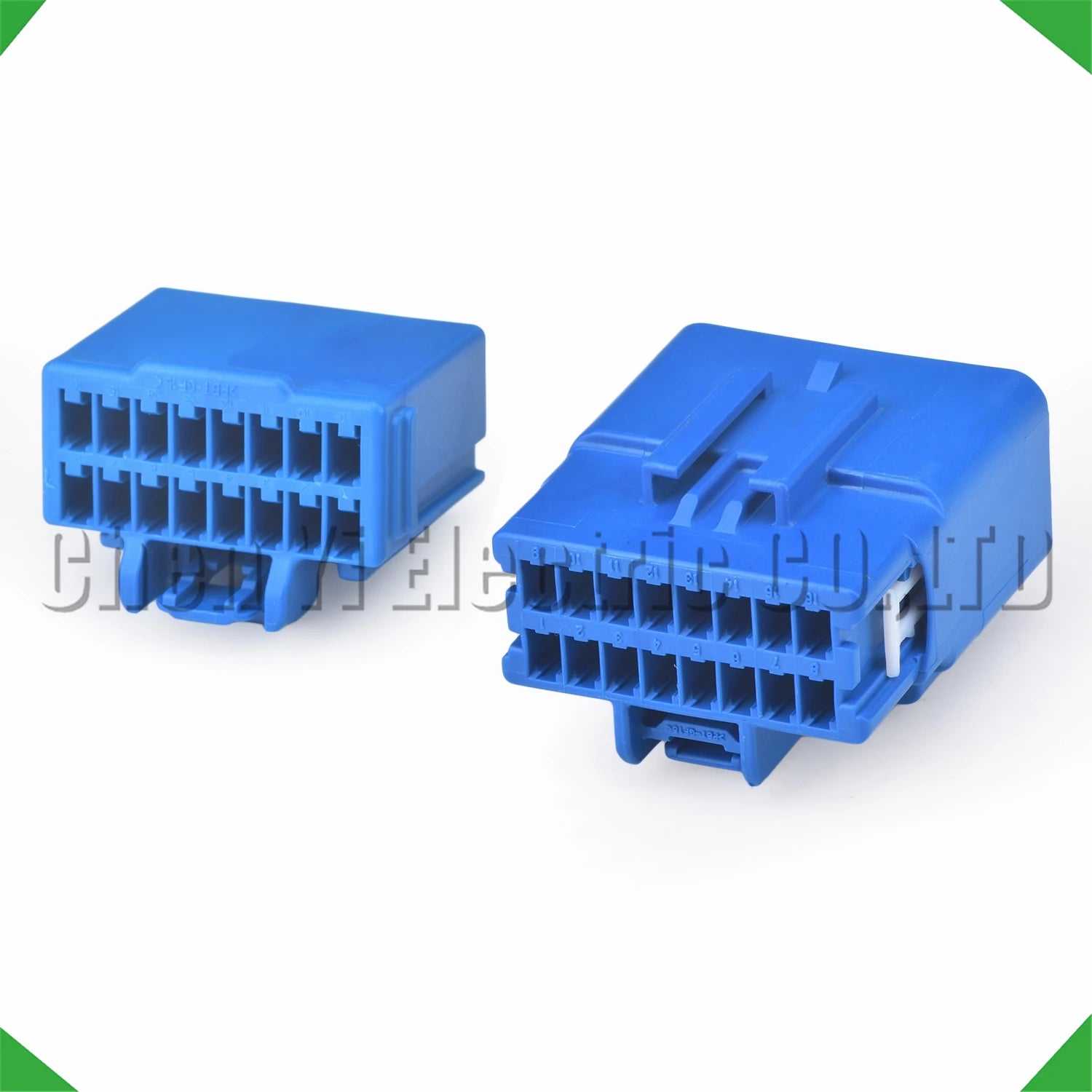

The OEM 68250125AF is a 16-pin connector used in Land Rover and Ford audio amplifier harnesses. This connector integrates speaker output, audio input, power, ground, and CAN bus circuits for the premium audio amplifier module. Available in Male and Female variants, bare or with 15cm pre-wired leads.

Key Specifications

Why Amplifier Connectors Fail

Audio amplifier connectors on Land Rover and Ford vehicles are subject to vibration from the vehicle body, heat from the amplifier module, and moisture in trunk or under-seat locations. Terminal corrosion or housing damage causes audio dropouts, channel failures, complete amplifier shutdown, or U-code CAN bus communication faults with the audio module. Replacing the connector restores full amplifier circuit integrity.

Variant Guide

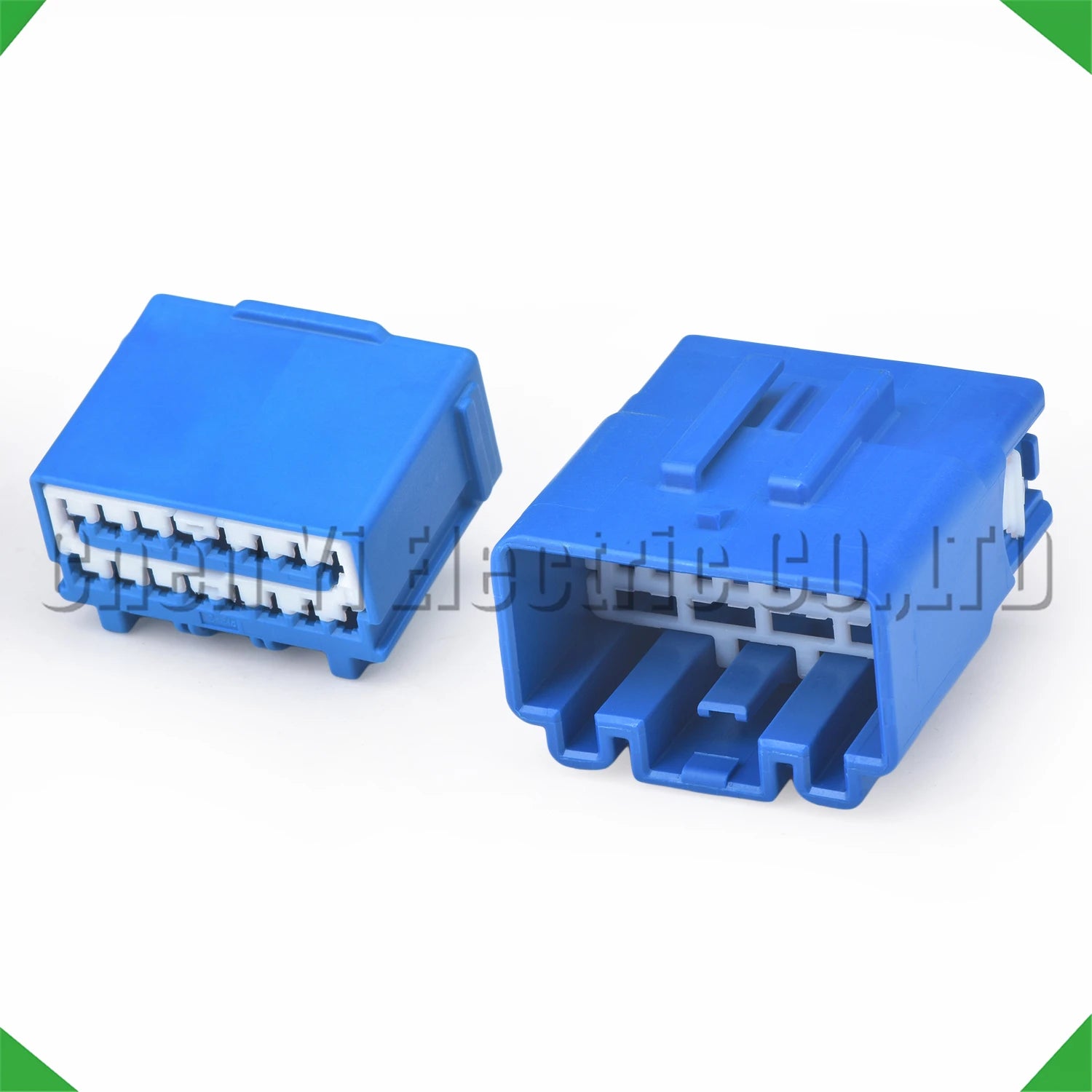

• Male / Male 15CM – Plug-side connector for the amplifier module
• Female / Female 15CM – Socket-side connector for the harness side

Installation Steps

1. Disconnect the vehicle battery
2. Access the audio amplifier module (typically in the trunk or under a seat)
3. Release the locking tab and unplug the original 16-pin connector
4. Transfer terminals to the new housing or splice in the pre-wired variant
5. Reconnect and verify all audio channels and amplifier function

Frequently Asked Questions

Q: What Land Rover and Ford models use OEM 68250125AF?
A: This connector is used on Land Rover Discovery, Range Rover, and Ford Explorer, Edge audio amplifier harnesses. Cross-reference your vehicle’s wiring diagram to confirm fitment.

Q: What fault codes indicate a failed amplifier connector?
A: Common symptoms include audio dropout, channel failures, and U-codes for audio module communication faults on Land Rover SDD or Ford IDS diagnostic systems.

Q: Are terminals included?
A: Yes, terminals are included with all variants.

Compatible Applications

• Land Rover Discovery / Range Rover – Premium audio amplifier harness
• Ford Explorer / Edge – Audio amplifier module connector
• OEM 68250125AF amplifier harness applications
