Toyota 15-Pin Transmission Gearbox Solenoid Wire Harness Connector – Female OEM

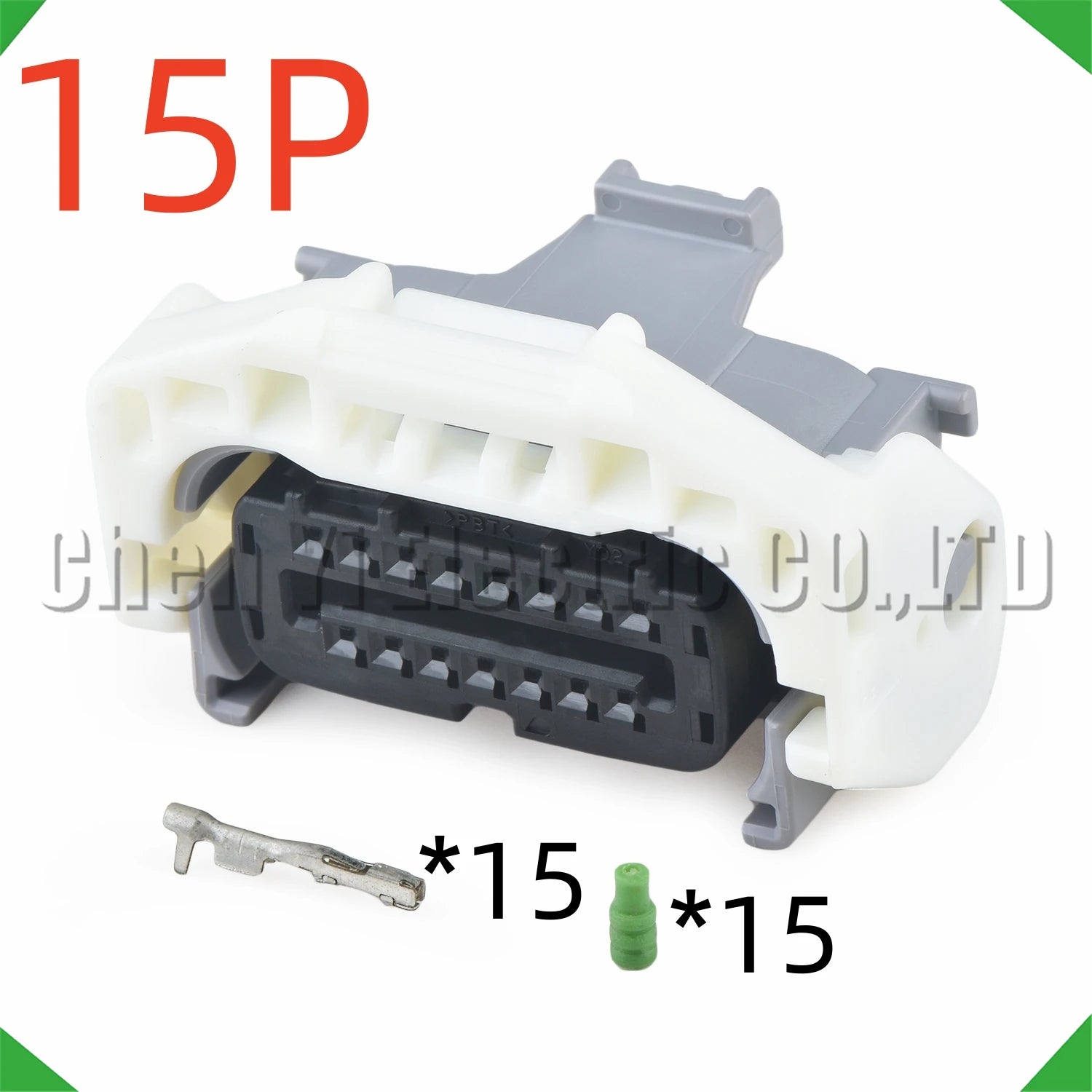

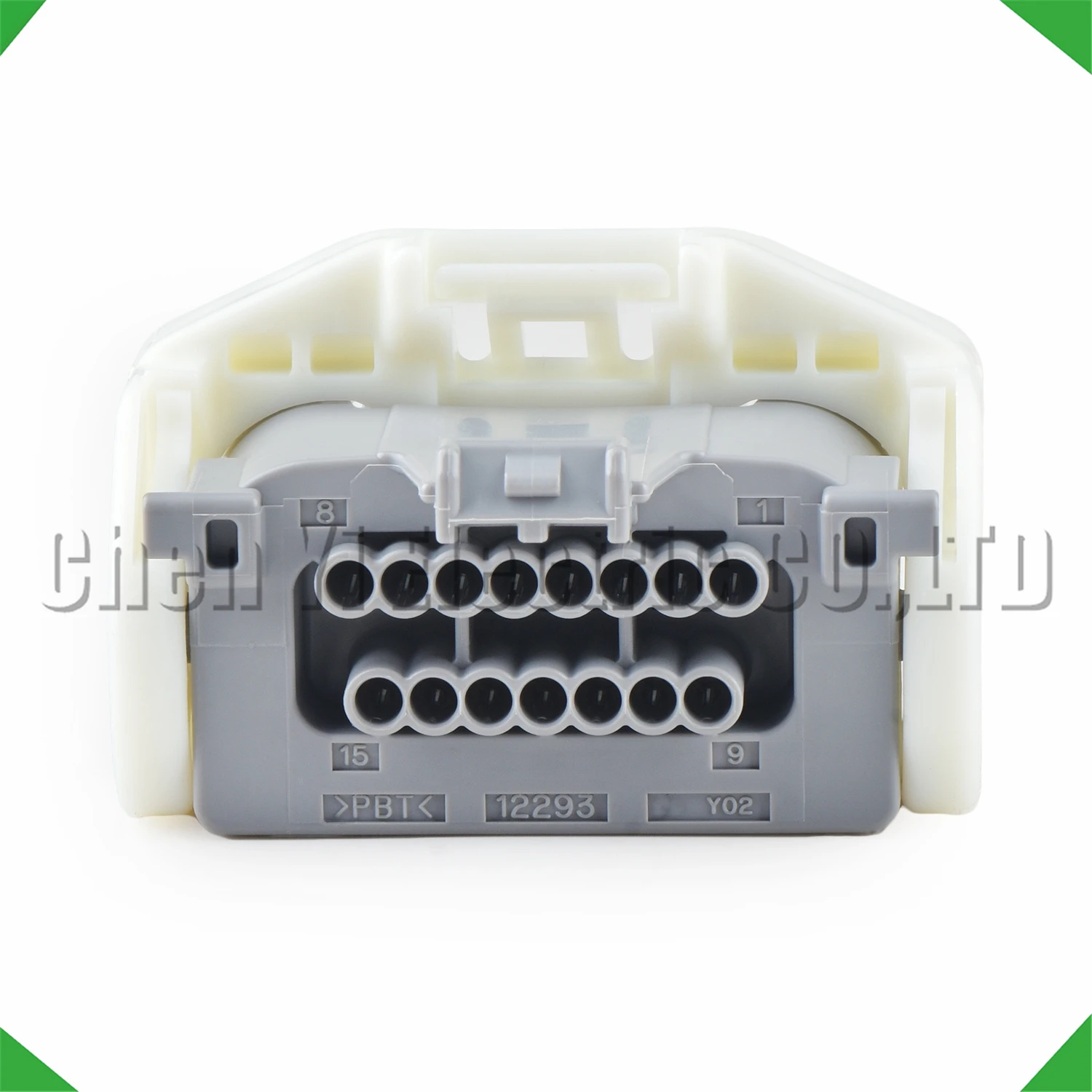

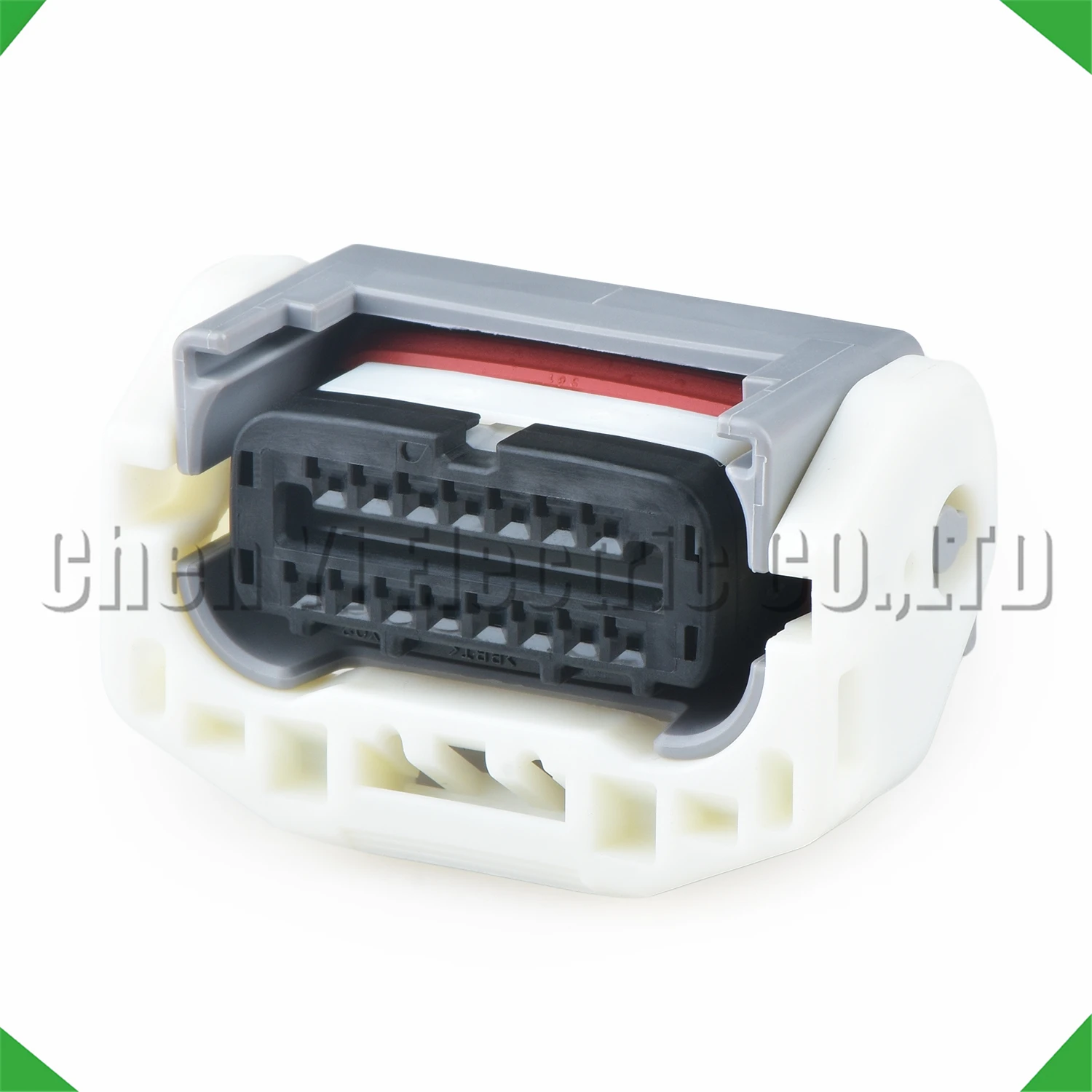

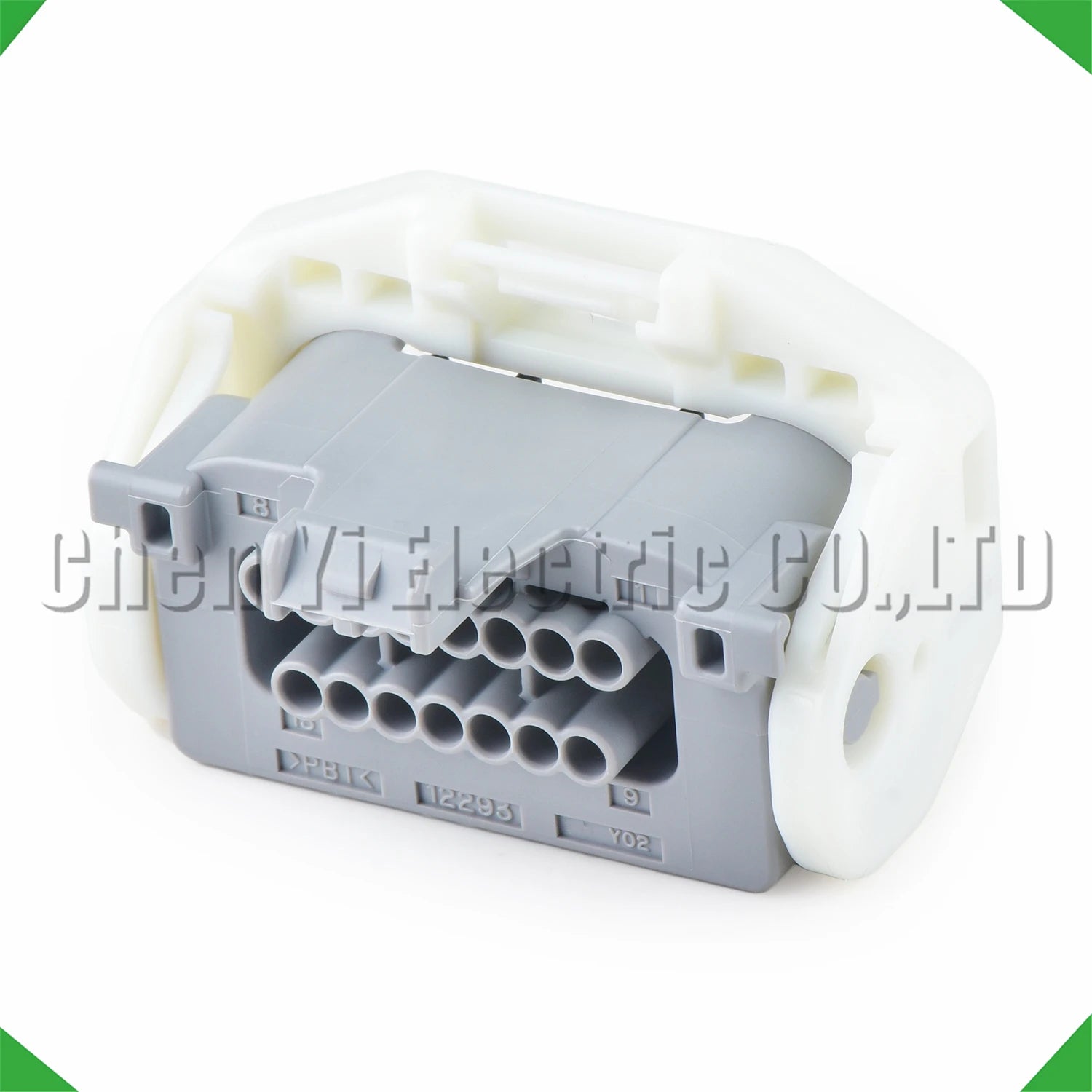

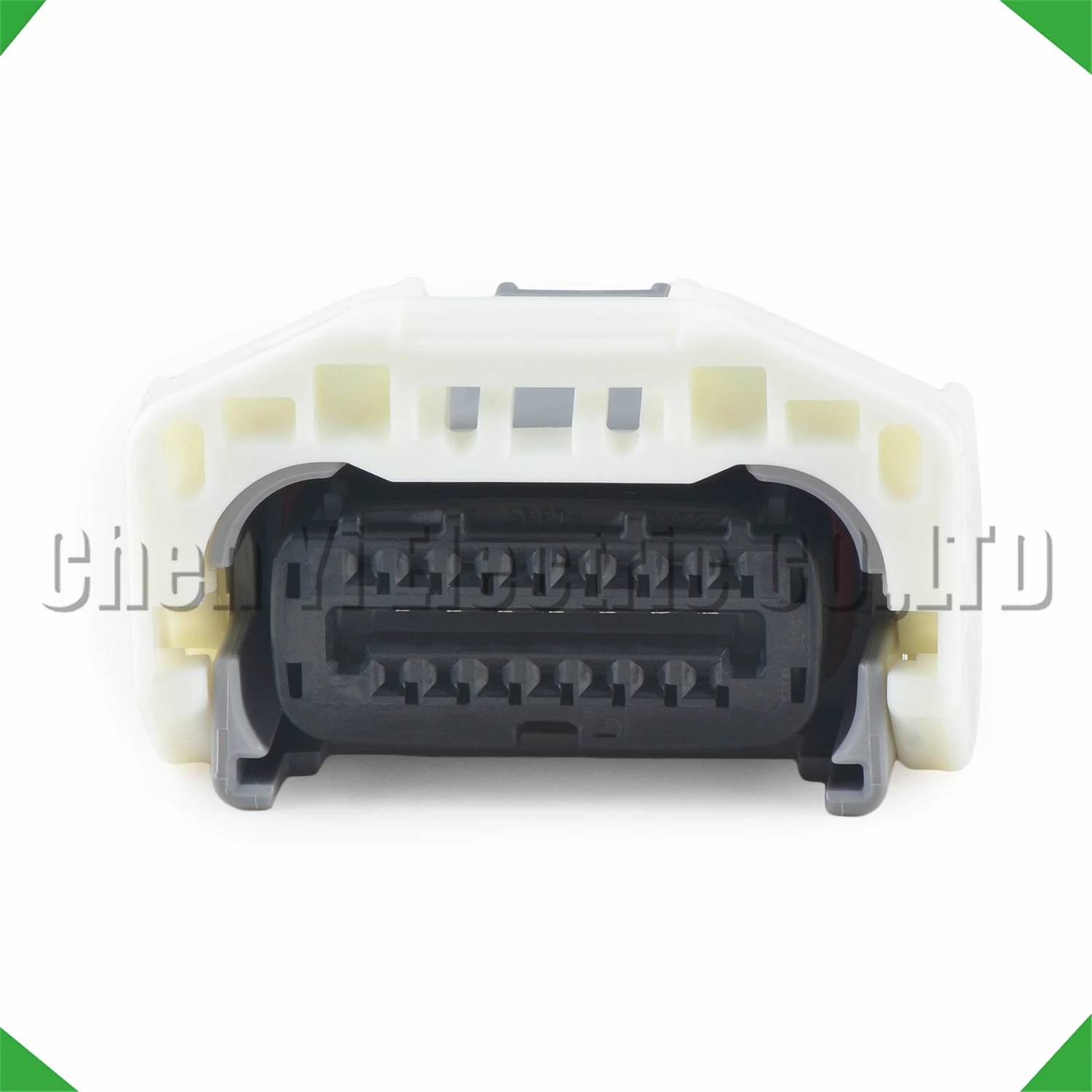

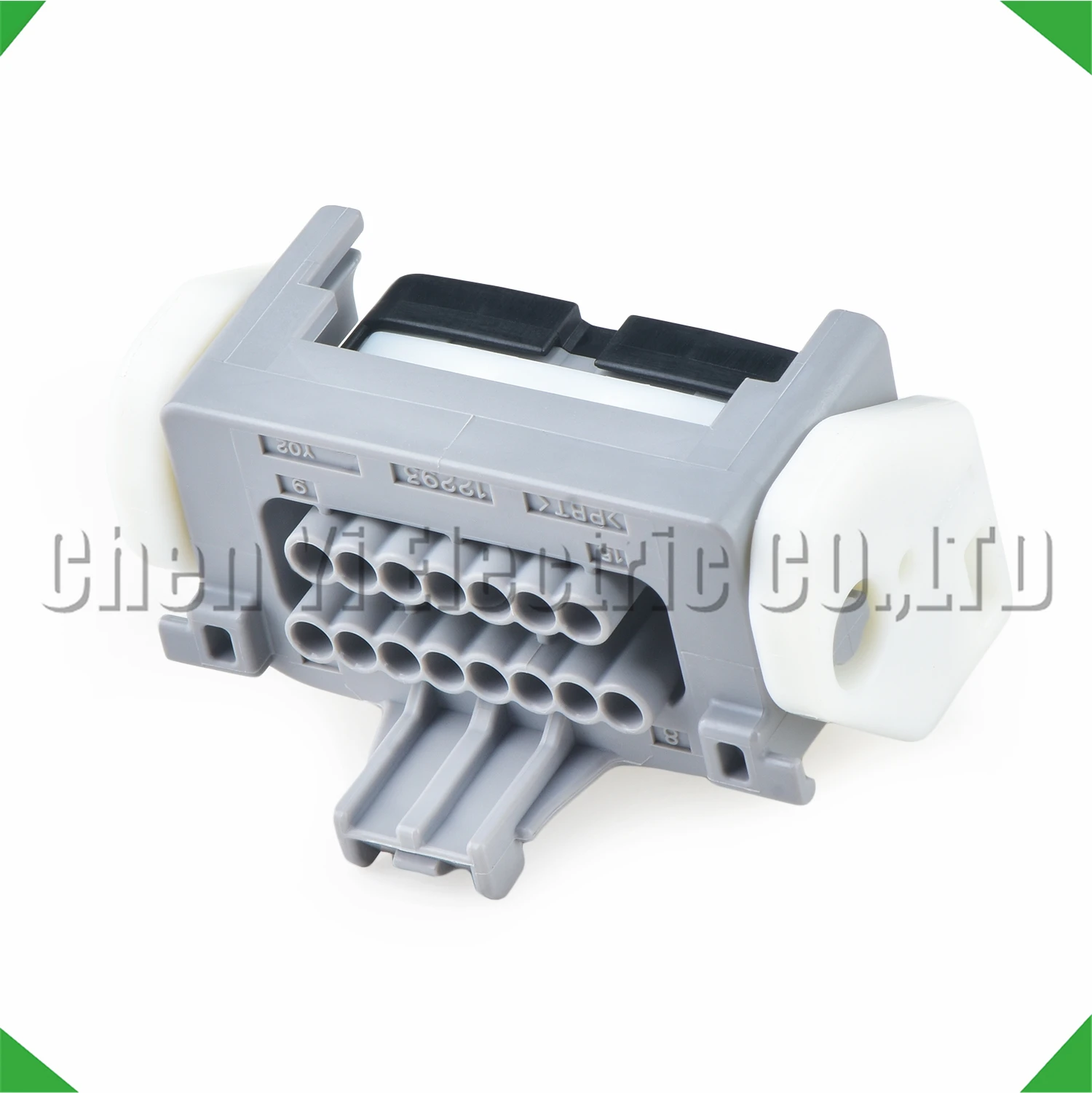

This 15-pin female connector is used in Toyota automatic transmission gearbox solenoid harnesses. The 15-pin configuration integrates multiple shift solenoid control circuits, pressure control solenoids, and transmission fluid temperature sensor circuits for Toyota’s automatic transmission control system. Available bare or with 15cm pre-wired leads.

Key Specifications

Why Transmission Solenoid Connectors Fail

Toyota transmission solenoid connectors are immersed in ATF (automatic transmission fluid) and exposed to thermal cycling and vibration from the gearbox. ATF contamination, terminal corrosion, or housing damage causes shift solenoid faults, pressure control solenoid errors, harsh shifting, slipping, or limp mode. Symptoms include P0750–P0770 (shift solenoid circuit faults), P0745 (pressure control solenoid), and P0700 (TCM malfunction). Replacing the connector restores clean solenoid circuit continuity.

Variant Guide

• Female – Bare 15-pin housing with terminals

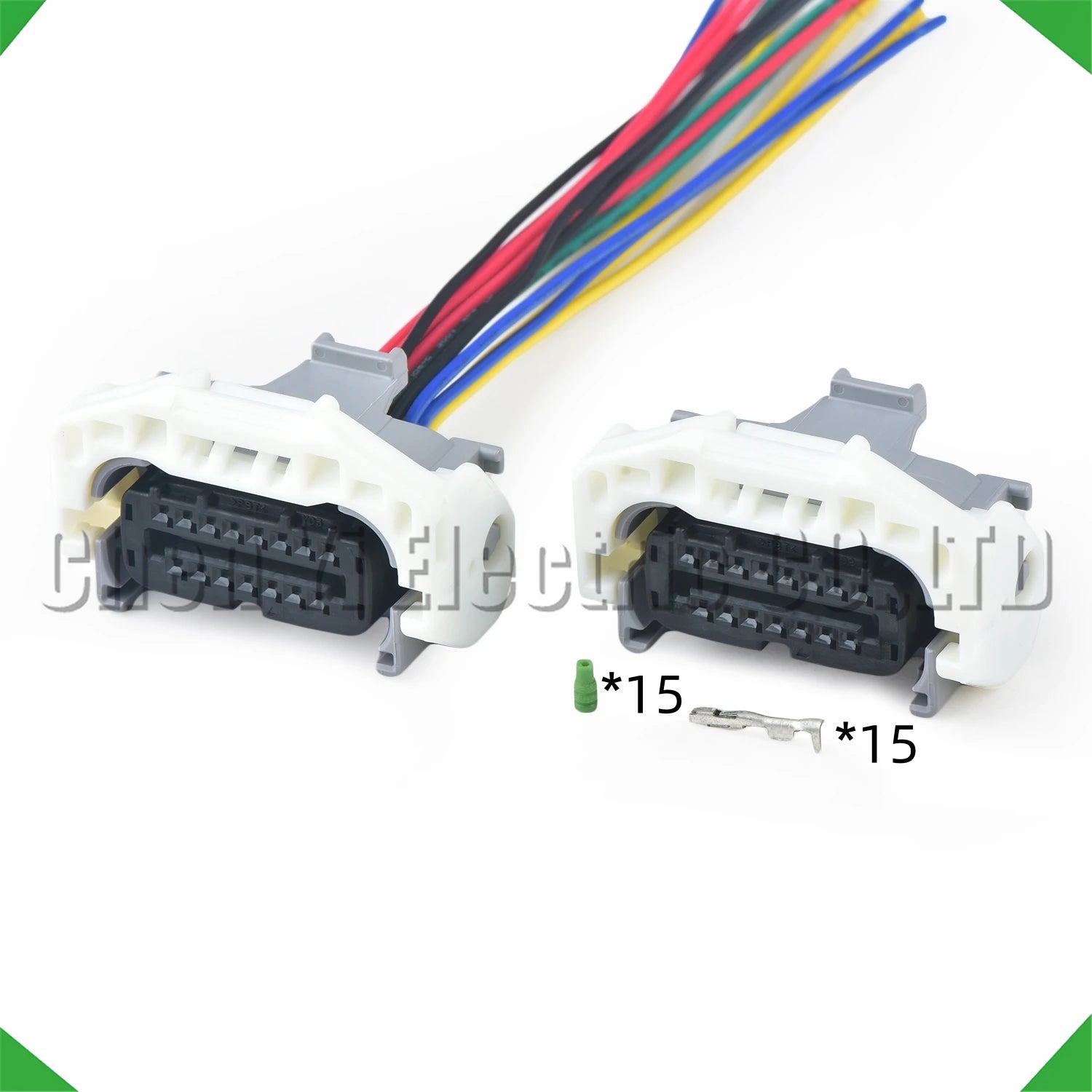

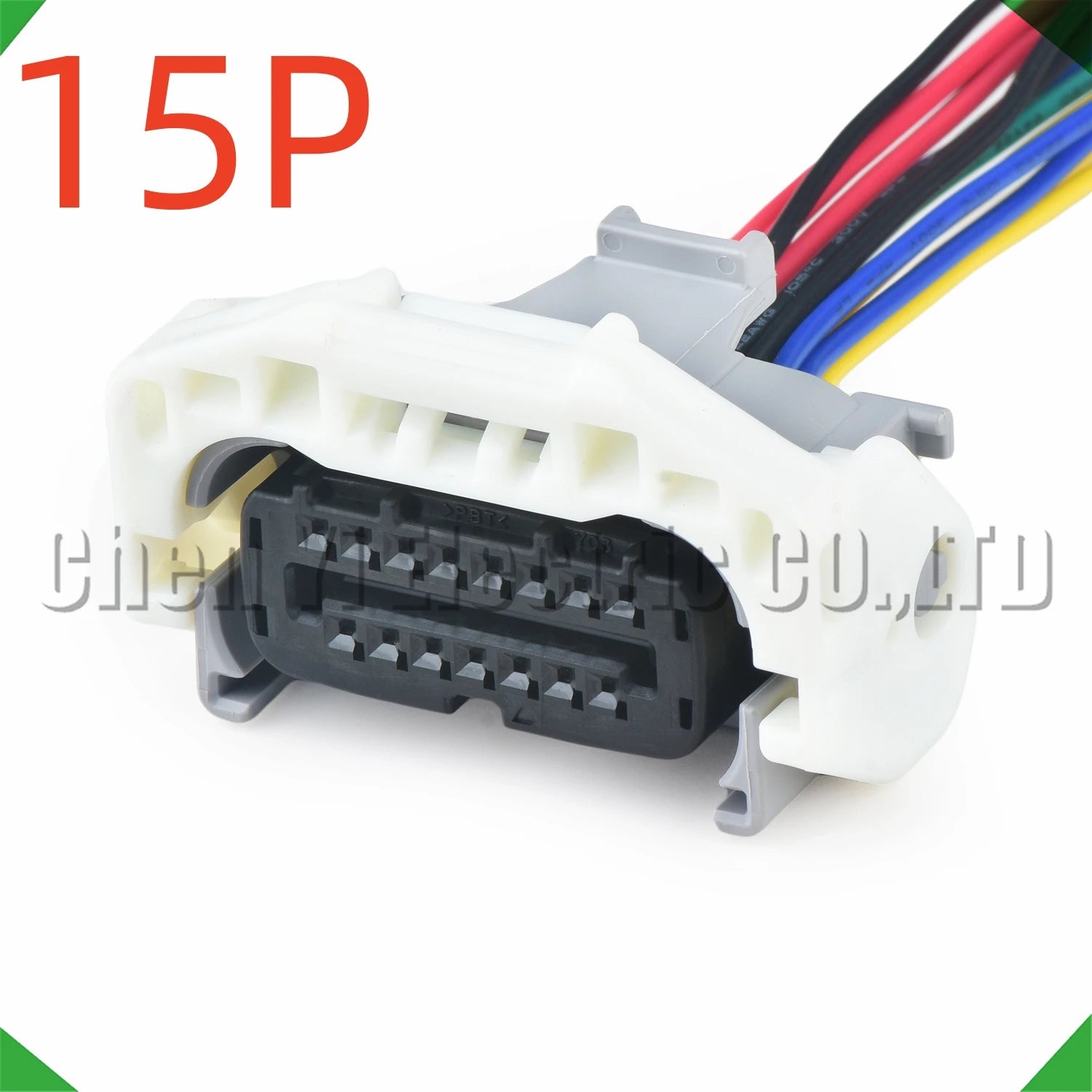

• Female 15CM – Pre-wired with 15cm leads for direct splice-in installation

Installation Steps

1. Drain the ATF and remove the transmission oil pan to access the solenoid harness
2. Locate the 15-pin solenoid connector on the valve body harness
3. Use a terminal extraction tool to remove terminals from the original housing
4. Transfer terminals to the new housing maintaining exact pin positions
5. Reinstall the oil pan with a new gasket and refill ATF to specification
6. Clear transmission fault codes with Toyota Techstream and perform an adaptation reset

Frequently Asked Questions

Q: What Toyota models use this 15-pin transmission solenoid connector?
A: This connector is used on Toyota Camry, Corolla, RAV4, Highlander, and Lexus ES/IS/GS with A750E, A760E, and similar Toyota automatic transmissions. Cross-reference your vehicle’s wiring diagram to confirm fitment.

Q: What fault codes indicate a failed solenoid connector?
A: Common codes include P0750–P0770 (shift solenoid A–E circuit faults), P0745 (pressure control solenoid A), P0700 (TCM malfunction), and P0711 (transmission fluid temperature sensor) on Toyota Techstream.

Q: Is ATF-resistant housing required?
A: Yes. This connector is designed for immersion in ATF and uses ATF-resistant nylon housing. Do not substitute with standard connectors.

Q: Are terminals included?
A: Yes, terminals are included with all variants.

Compatible Applications

• Toyota A750E / A760E automatic transmission solenoid harness
• Toyota Camry / Corolla / RAV4 – Gearbox solenoid connector
• Lexus ES / IS / GS – Transmission valve body harness
• Toyota 15-pin transmission solenoid applications
