Peugeot / Citroën / BMW 12-Pin Display & Instrument Cluster Connector – Female OEM

This 12-pin female connector is used in Peugeot, Citroën, and BMW display module and instrument cluster harnesses. The 12-pin configuration integrates display data, CAN bus, power, and illumination circuits for the instrument cluster or infotainment display module. Available bare or with 15cm pre-wired leads.

Key Specifications

Why Display Connectors Fail

Instrument cluster and display module connectors are subject to vibration from the dashboard, heat from the display backlight, and repeated plug/unplug cycles during cluster replacement. Terminal oxidation or housing damage causes instrument cluster blackouts, warning light malfunctions, speedometer/tachometer failures, or U-code CAN bus communication faults with the cluster module. Replacing the connector restores full display circuit integrity.

Variant Guide

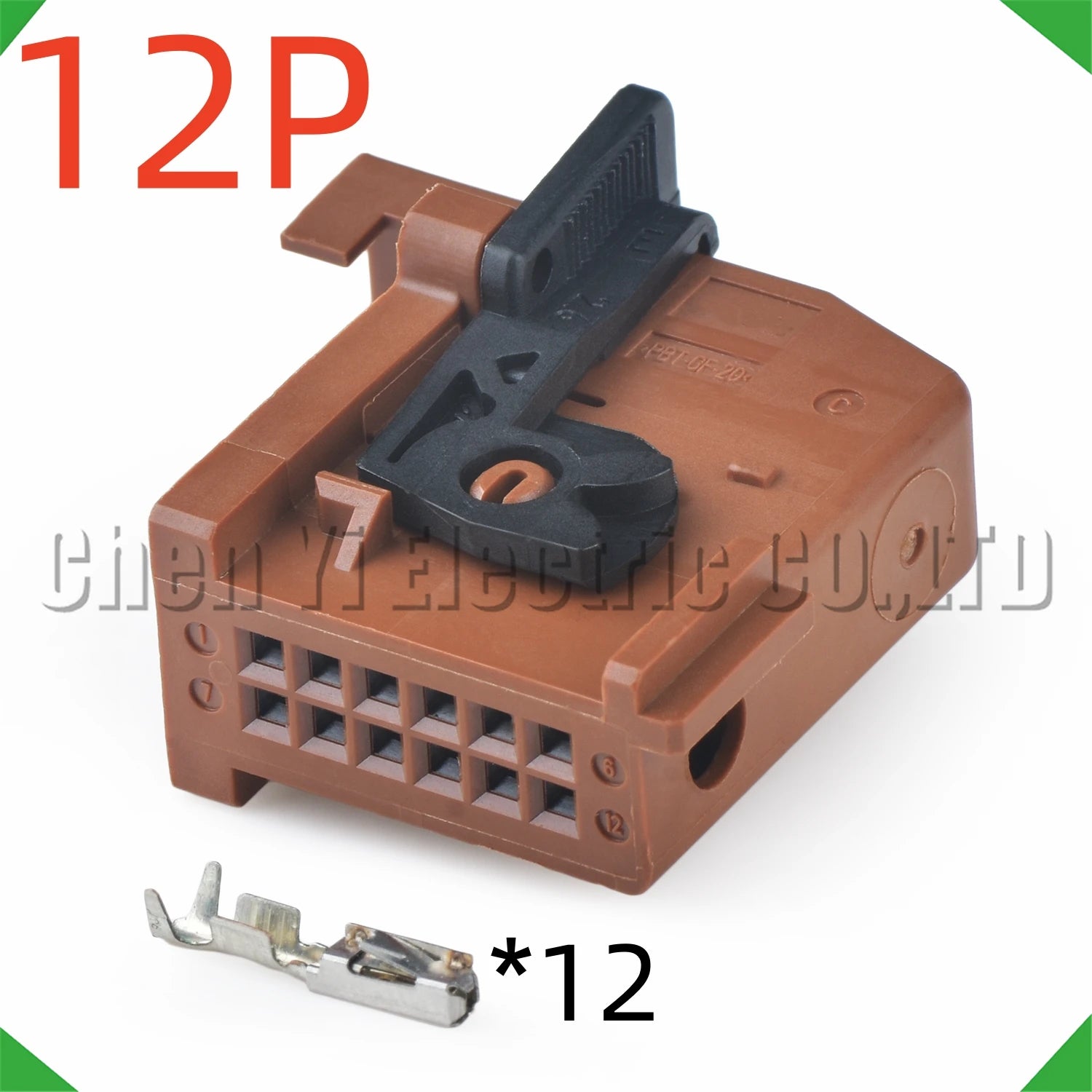

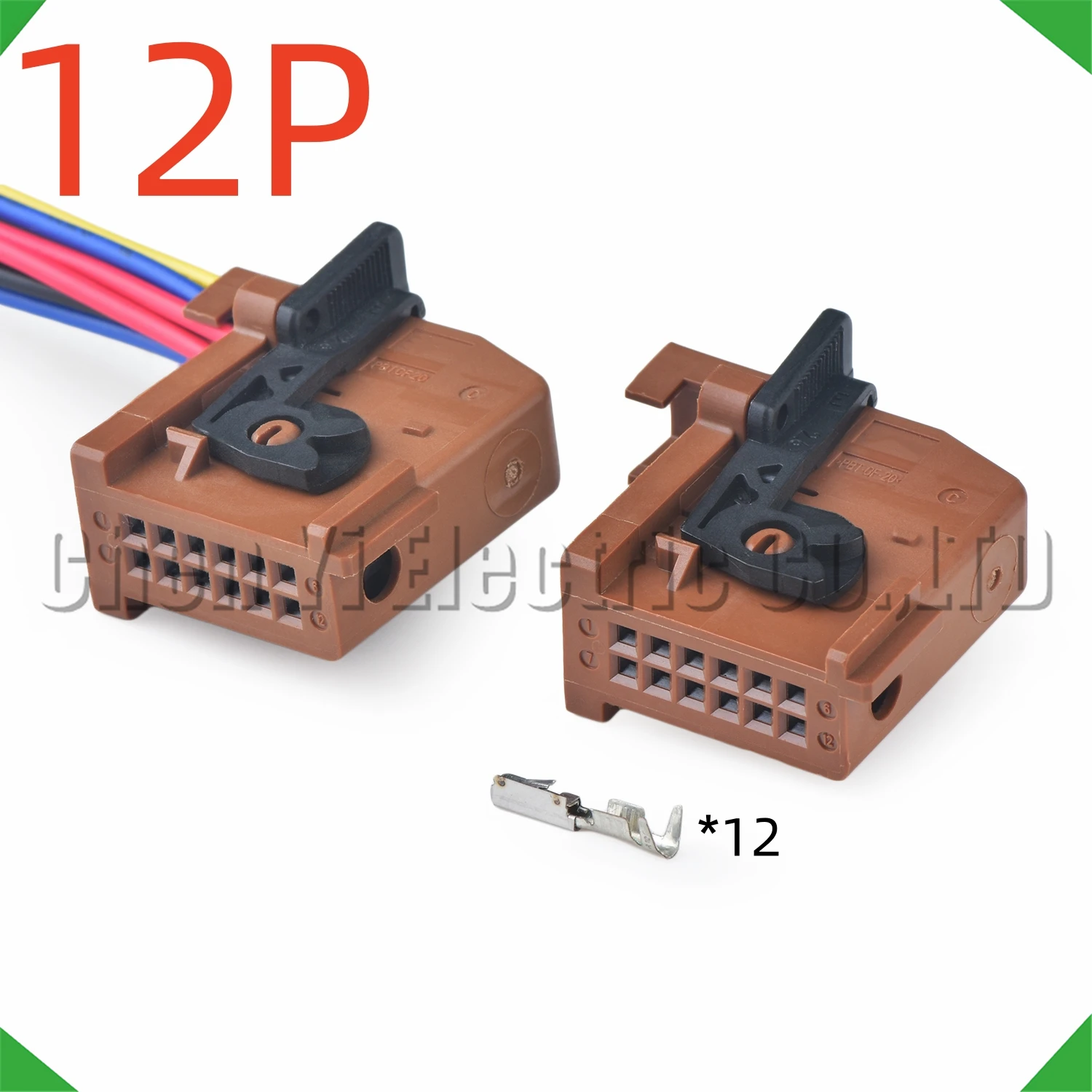

• Female – Bare 12-pin housing with terminals

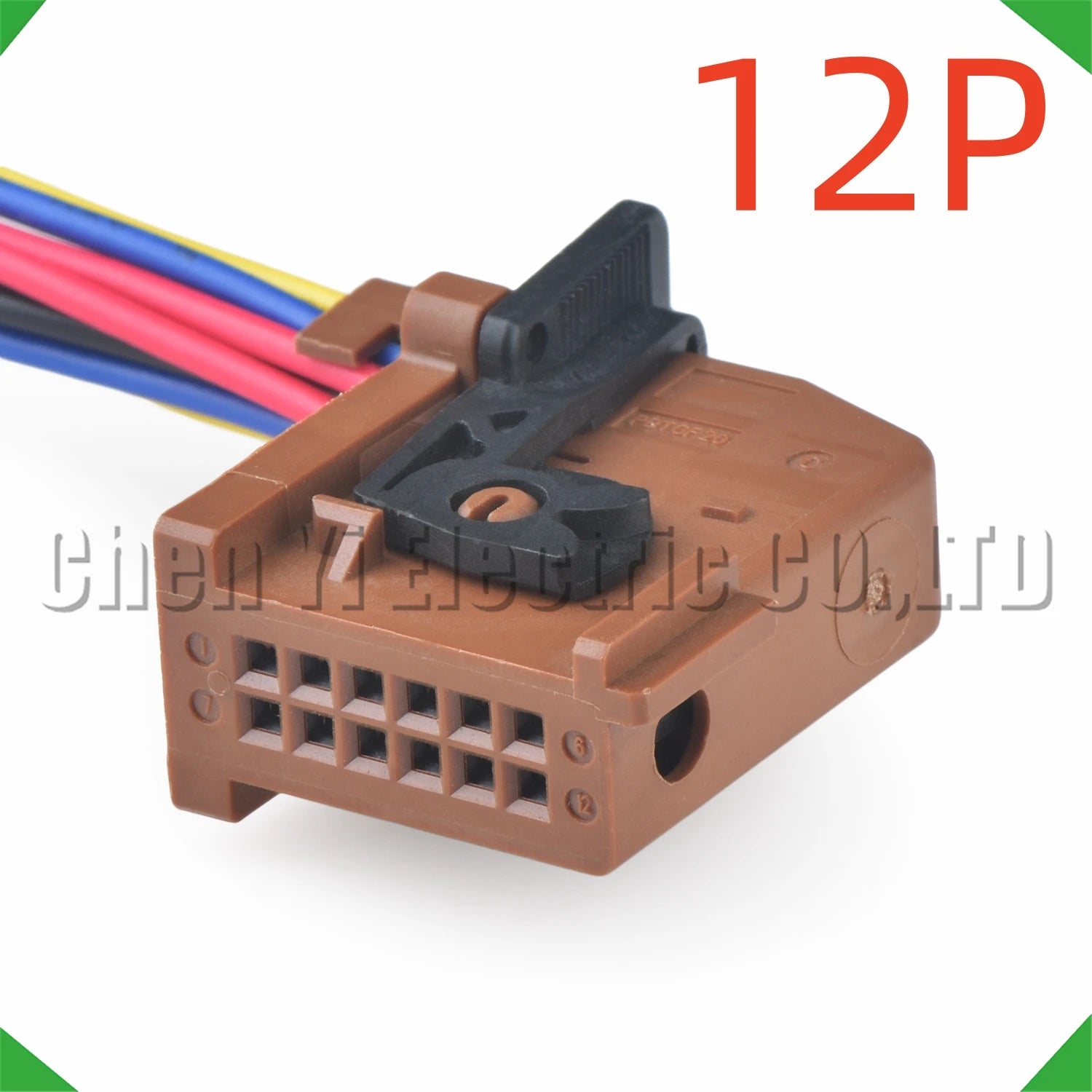

• Female 15CM – Pre-wired with 15cm leads for direct splice-in installation

Installation Steps

1. Disconnect the vehicle battery
2. Remove the instrument cluster or display module from the dashboard
3. Release the locking tab and unplug the original 12-pin connector
4. Transfer terminals to the new housing or splice in the pre-wired variant
5. Reinstall the cluster and verify all display functions

Frequently Asked Questions

Q: What Peugeot, Citroën, and BMW models use this 12-pin display connector?
A: This connector is used on Peugeot 308, 3008, 508, Citroën C4, C5, DS5, and BMW 1 Series, 3 Series, 5 Series instrument cluster and display harnesses. Cross-reference your vehicle’s wiring diagram to confirm fitment.

Q: What fault codes indicate a display connector issue?
A: Common codes include U0073 (CAN bus off), U0100 (lost communication with ECM), instrument cluster communication faults, and display module errors on PSA (Diagbox) and BMW (ISTA) diagnostic systems.

Q: Are terminals included?
A: Yes, terminals are included with all variants.

Compatible Applications

• Peugeot 308 / 3008 / 508 – Instrument cluster harness
• Citroën C4 / C5 / DS5 – Display module connector
• BMW 1 Series / 3 Series / 5 Series – Instrument cluster wiring
