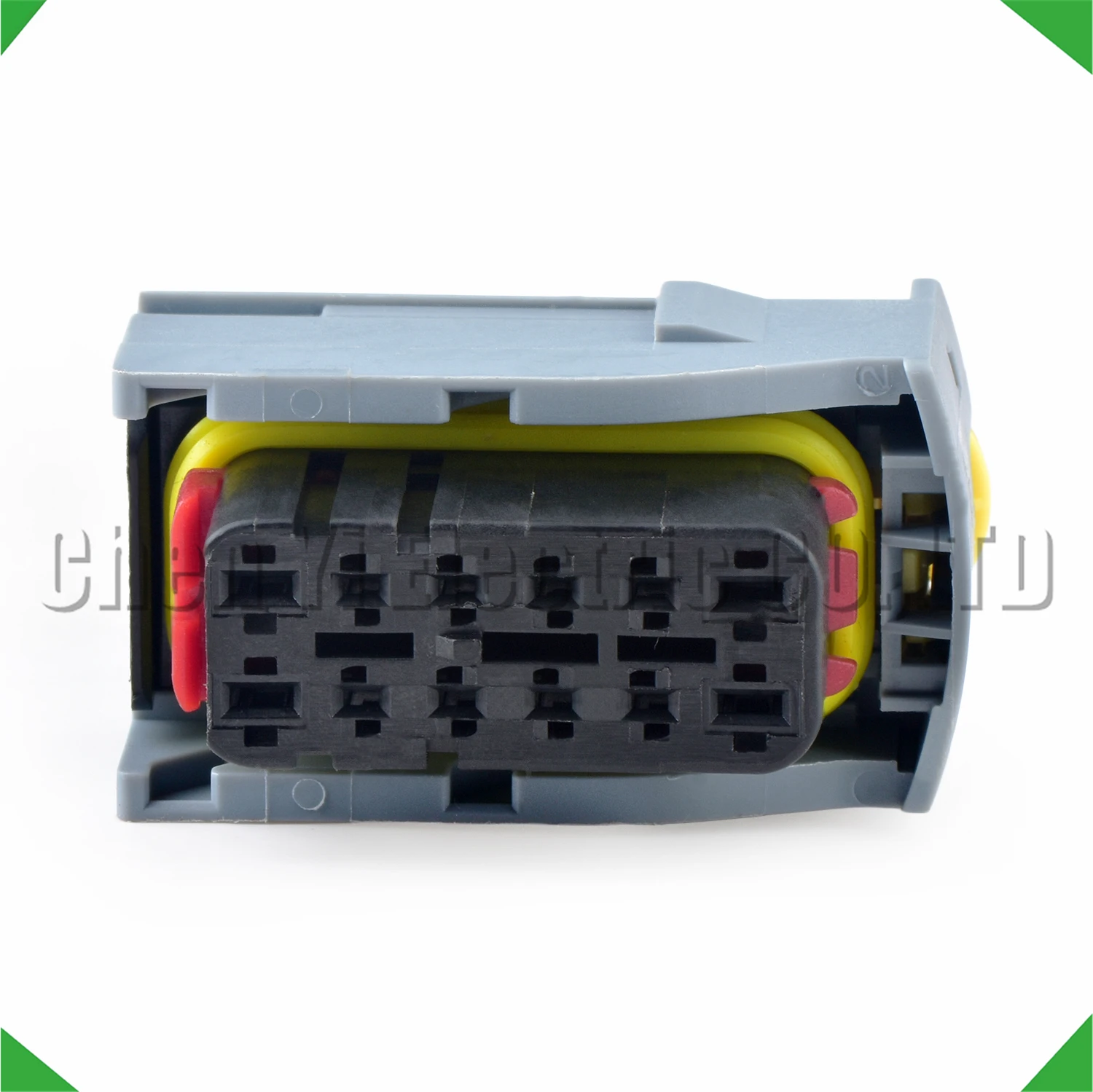

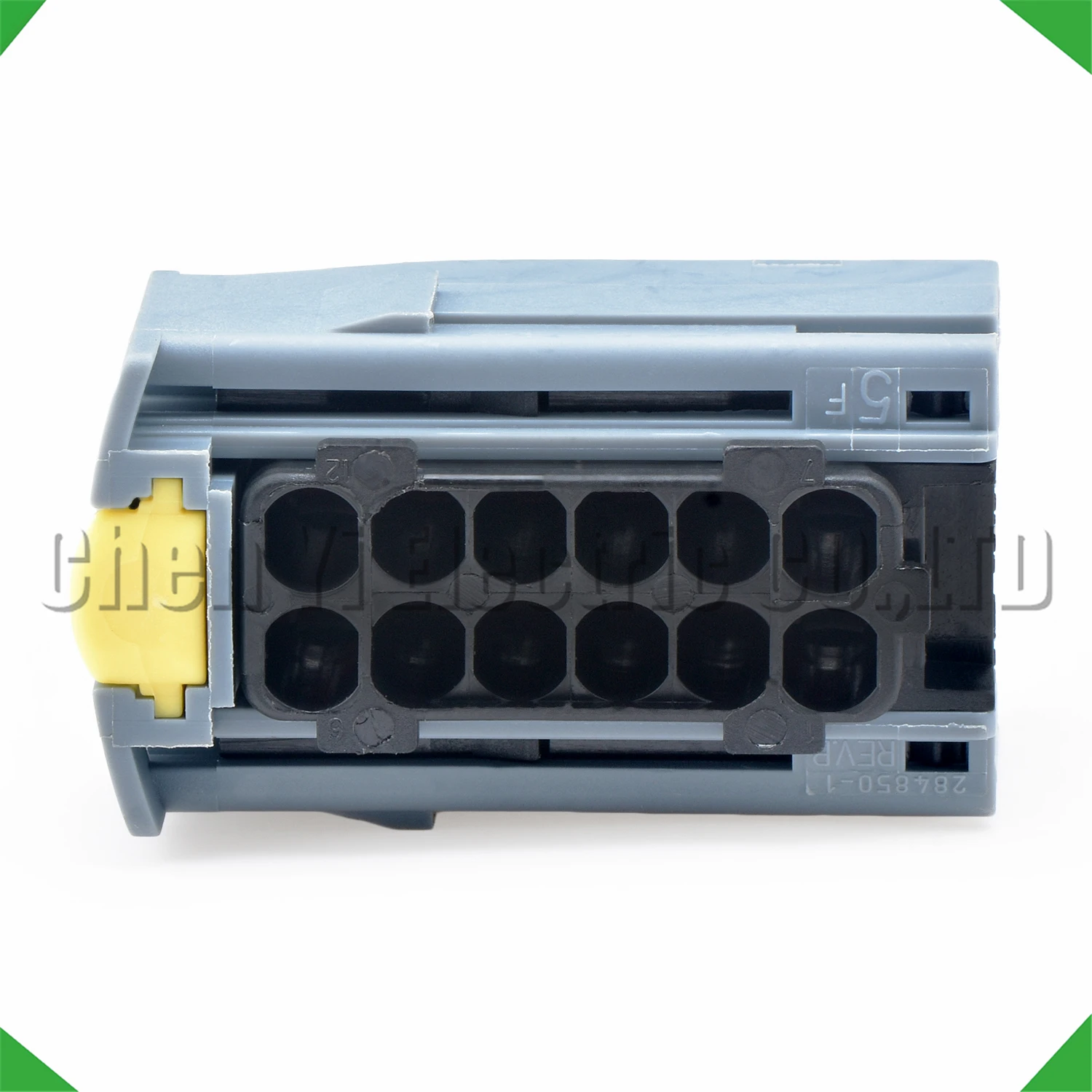

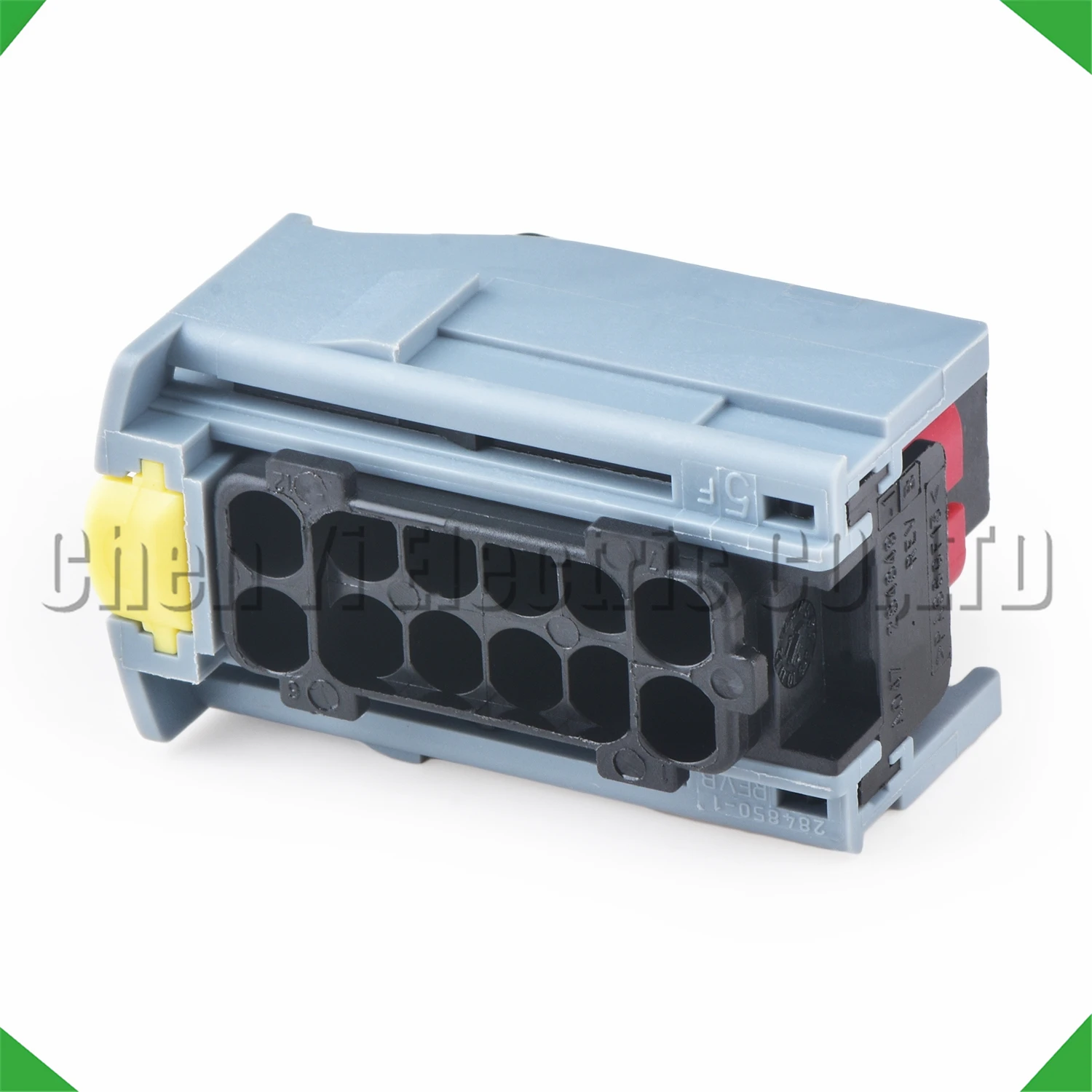

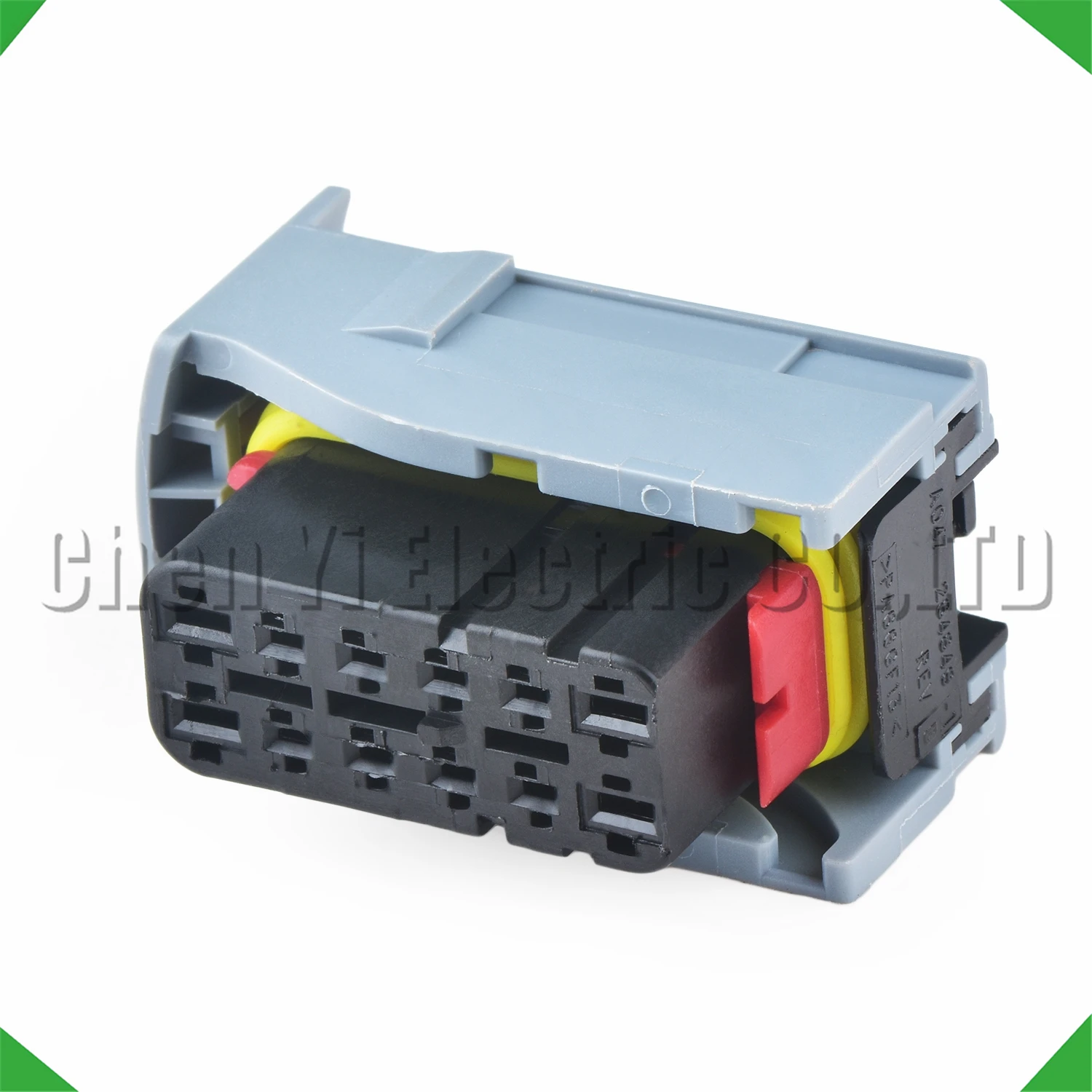

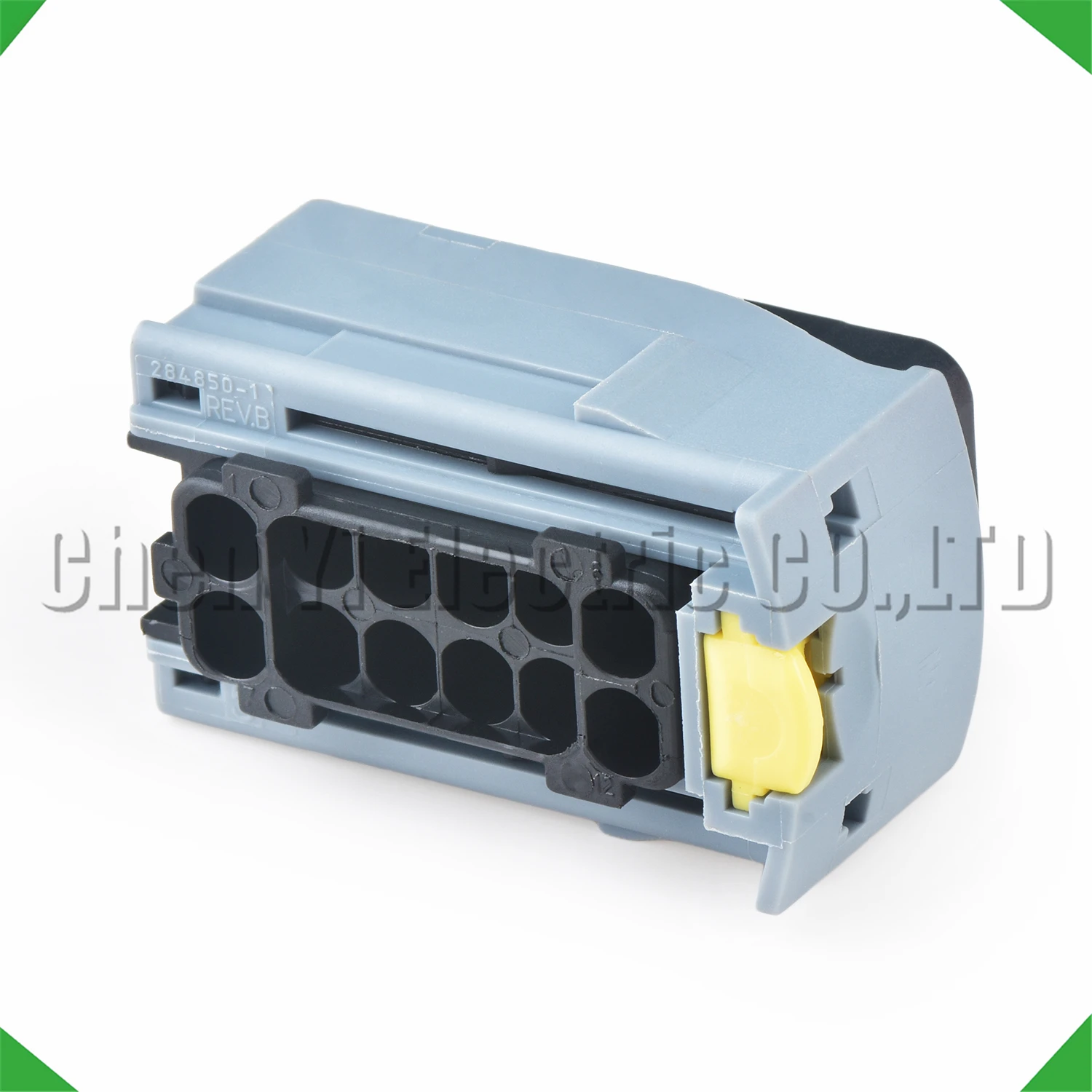

12-Pin Front Bumper Electric Harness Connector – OEM 284848-1

The OEM 284848-1 is a 12-pin female connector used in front bumper electrical harnesses, integrating circuits for parking sensors, radar modules, DRL, and fog lights. Designed for precision-fit replacement on vehicles using the 284848-1 connector standard. Available bare or with 15cm pre-wired leads.

Key Specifications

Why Front Bumper Connectors Fail

Front bumper connectors are exposed to road debris, water spray, and physical impact. Terminal corrosion or housing damage causes parking sensor failures (PDC faults), radar module communication errors, DRL malfunctions, or fog light circuit faults. Replacing the connector restores full front bumper electrical function.

Variant Guide

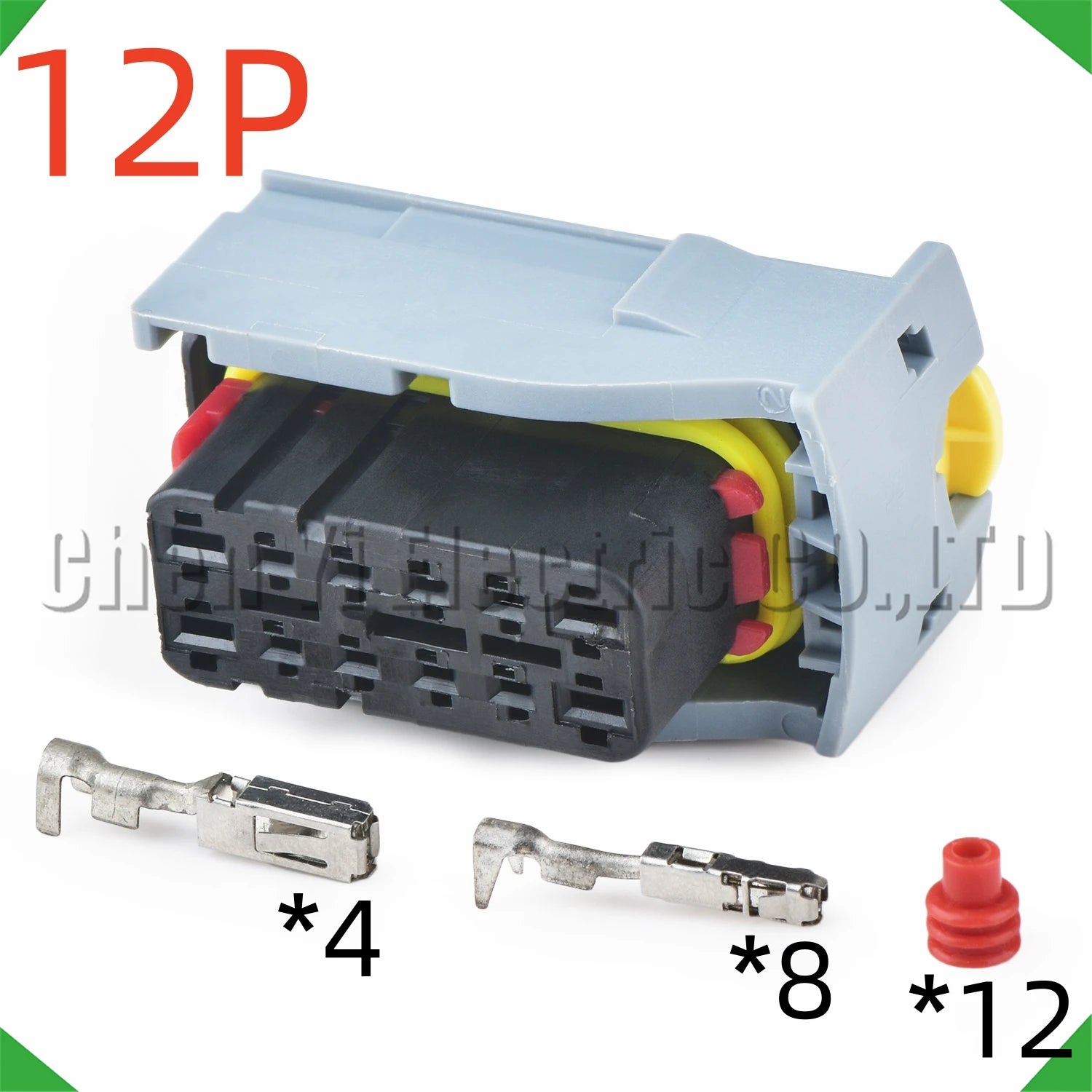

• Female – Bare 12-pin housing with terminals for custom wiring repair

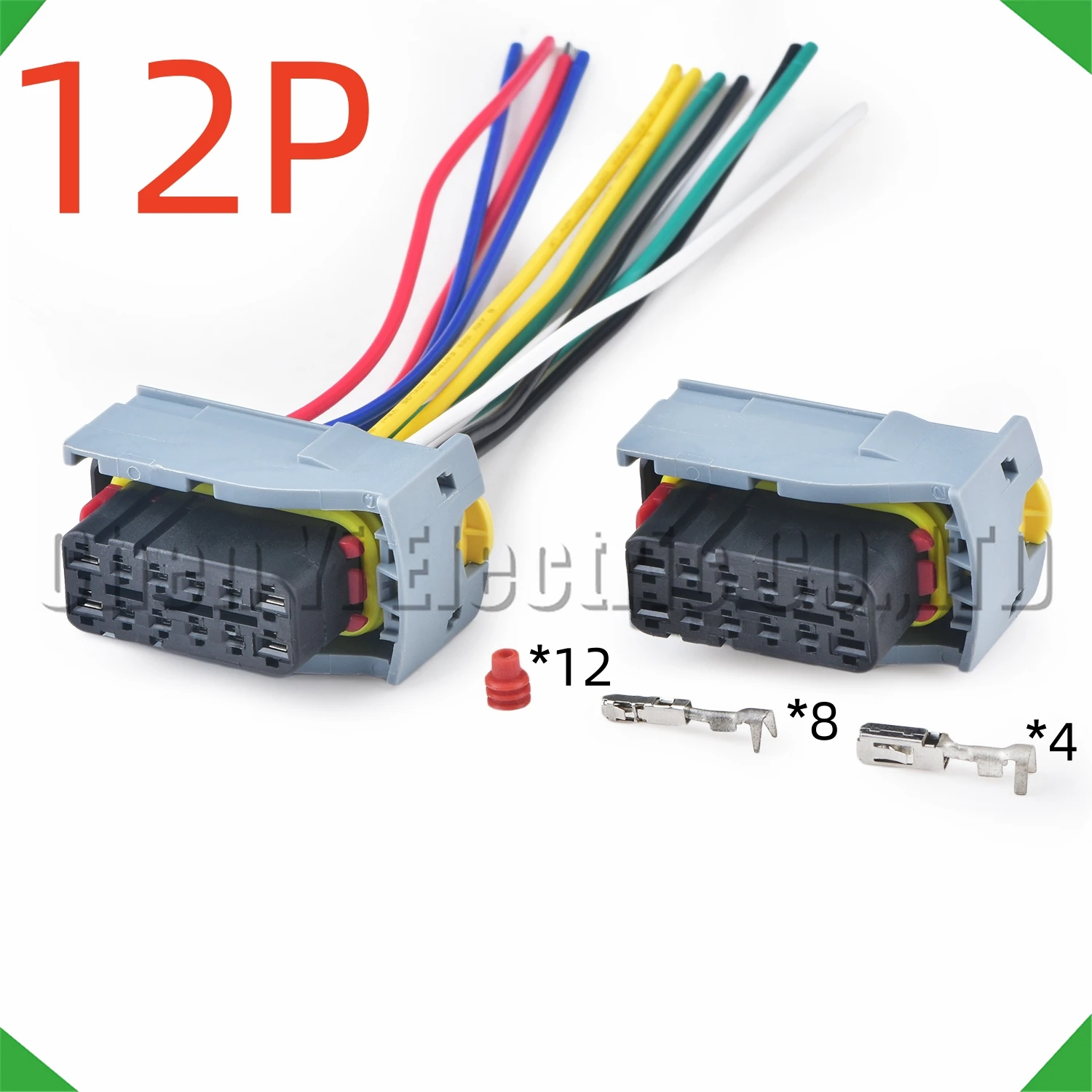

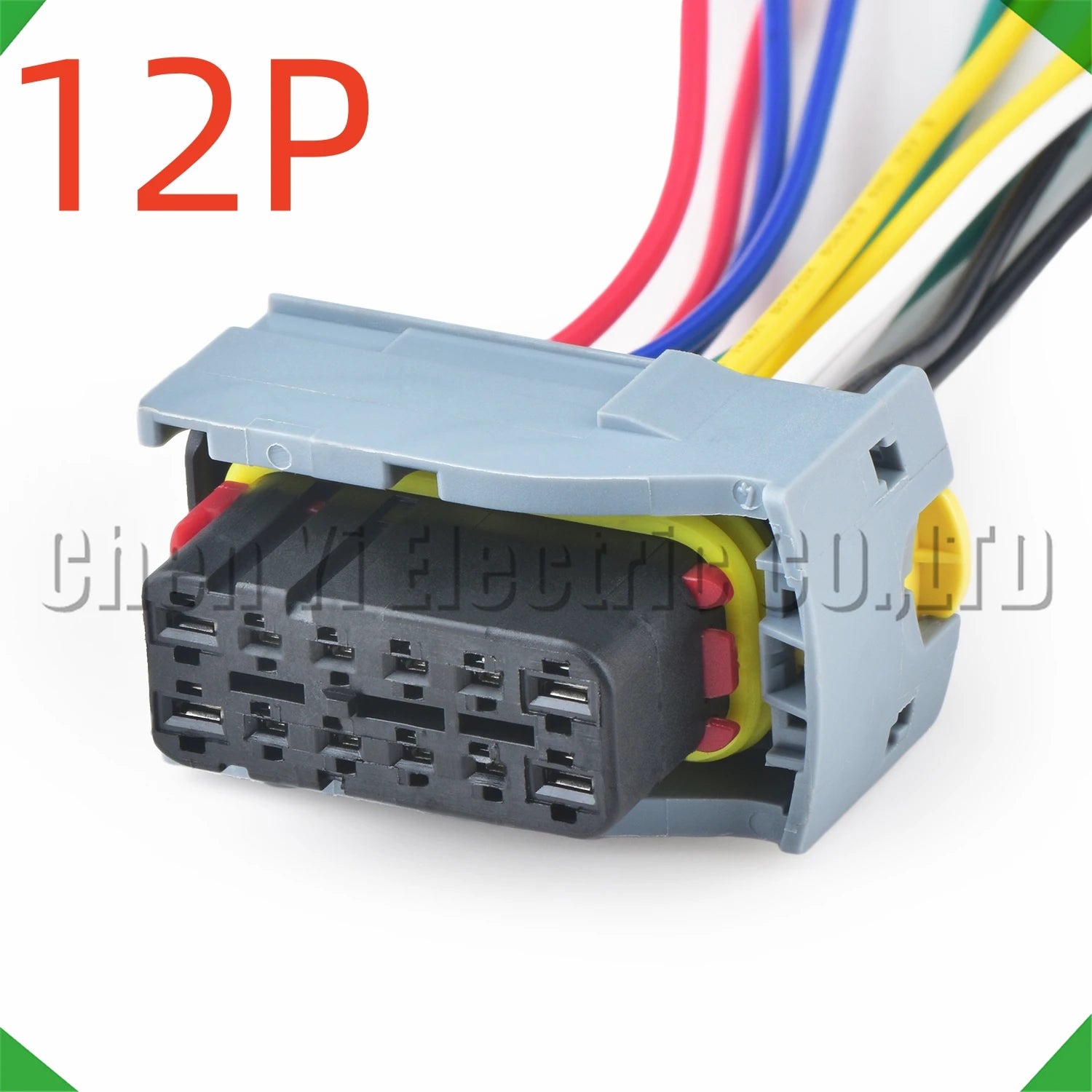

• Female 15CM – Pre-wired with 15cm leads for direct splice-in installation

Installation Steps

1. Disconnect the vehicle battery
2. Remove the front bumper cover to access the harness connector
3. Release the locking tab and unplug the original 12-pin connector
4. Transfer terminals to the new housing or splice in the pre-wired variant
5. Reinstall the bumper and verify parking sensor, radar, DRL, and fog light function

Frequently Asked Questions

Q: What systems does this connector serve?
A: The 12-pin front bumper connector integrates parking distance control (PDC) sensors, front radar module, DRL circuits, and fog light wiring in a single harness connection point.

Q: What fault codes indicate a failed front bumper connector?
A: Common codes include PDC sensor faults, radar module communication errors (U-codes), DRL circuit open, and fog light relay faults.

Q: Is the 15CM variant ready to splice?
A: Yes. The pre-wired variant has 15cm leads pre-crimped into the connector housing for direct splice-in installation.

Q: Are terminals included?
A: Yes, terminals are included with all variants.

Compatible Applications

• Front bumper PDC / parking sensor harness
• Front radar module connector (ACC, AEB systems)
• DRL and fog light circuit integration
• Universal 12-pin front bumper harness applications using OEM 284848-1
