BMW 10-Pin Tail Light & Reverse Camera Wire Harness Connector – OEM 9132571-02 | Black & White Female

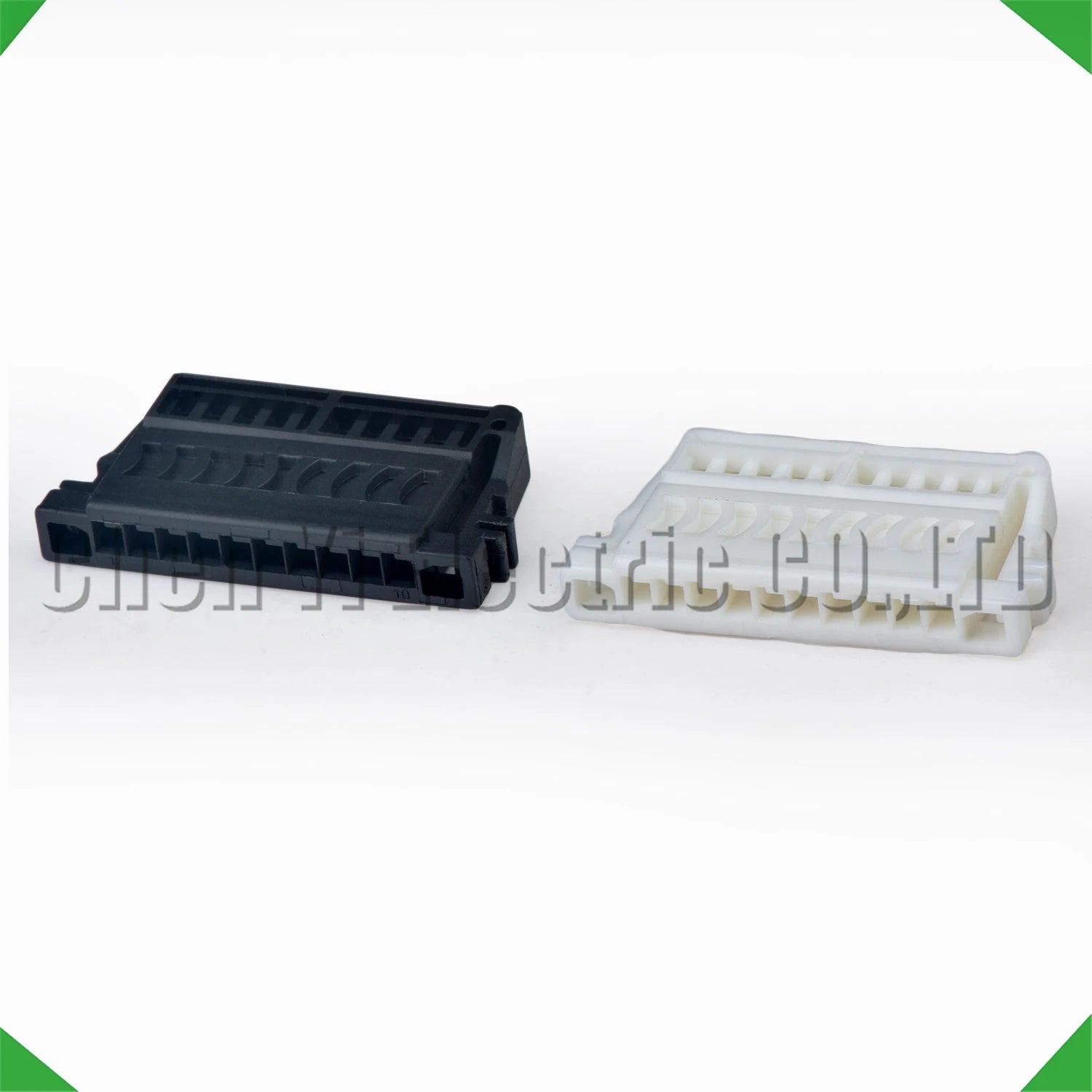

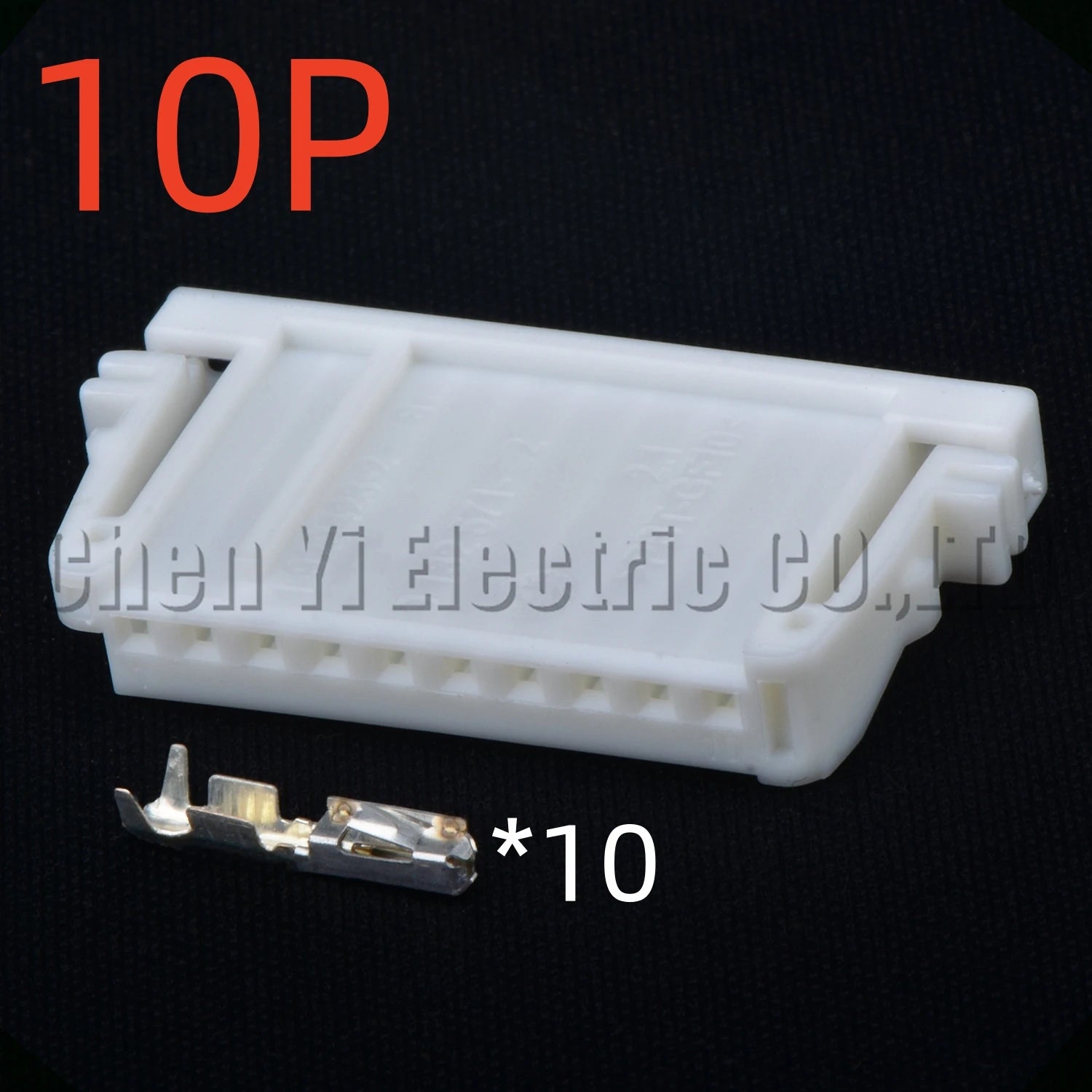

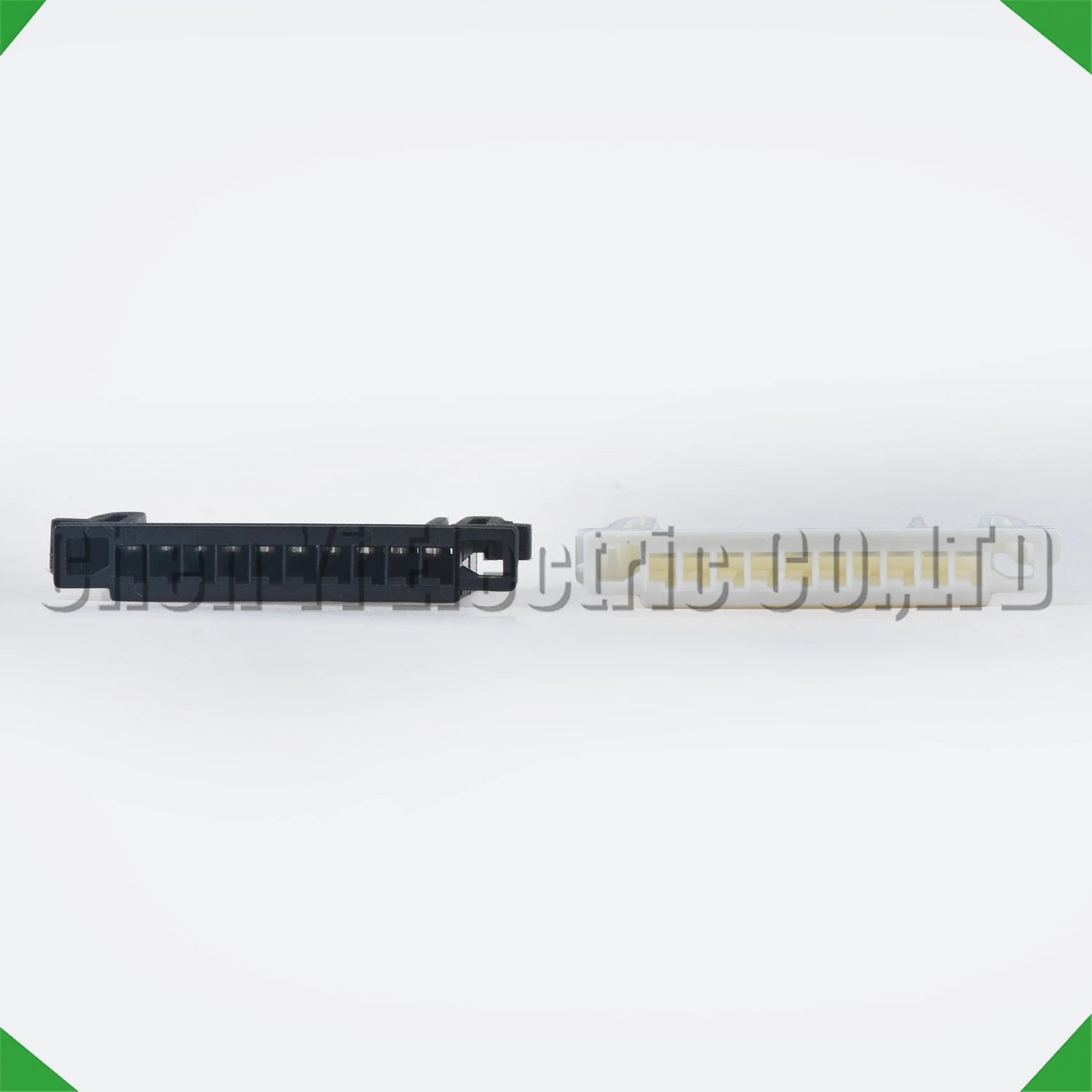

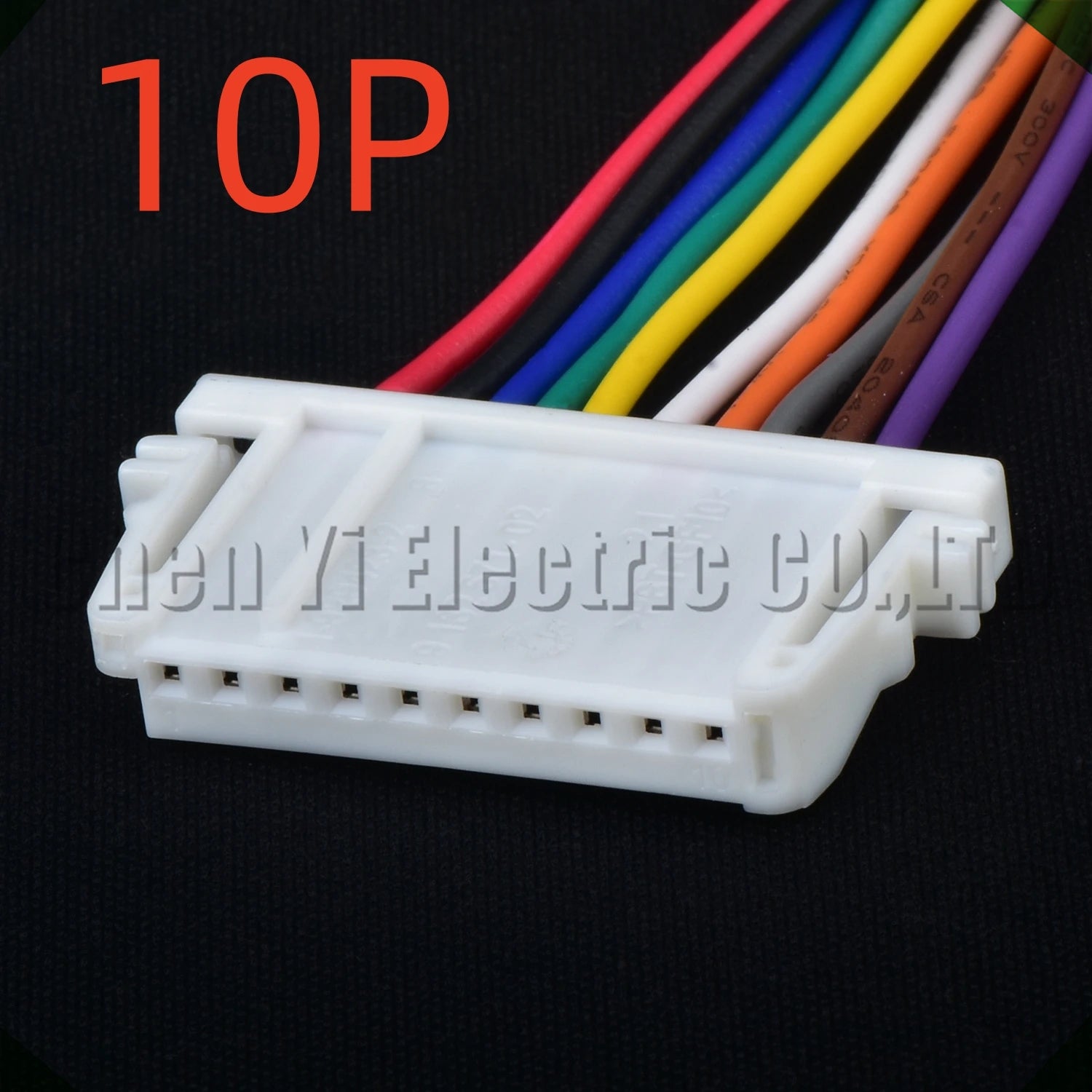

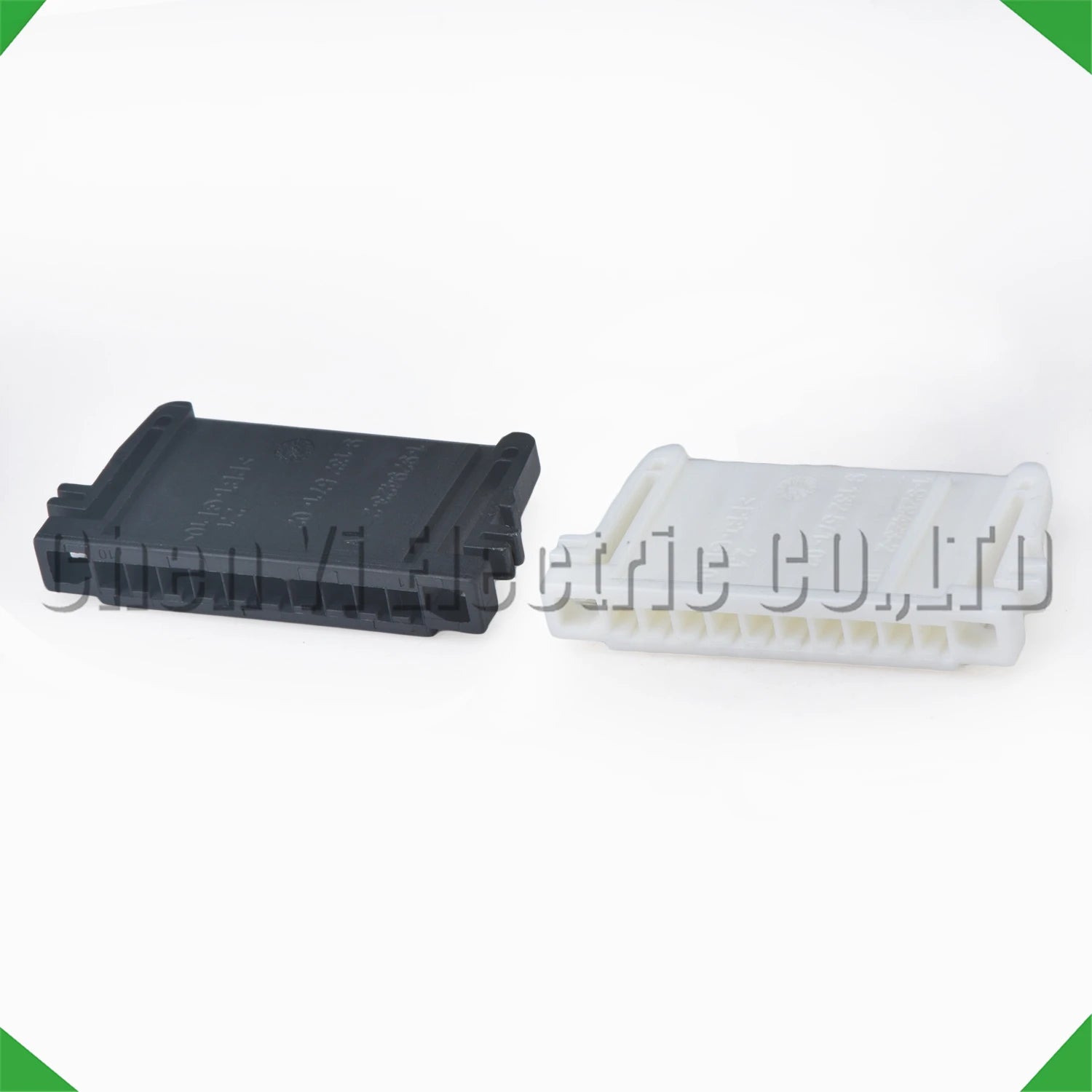

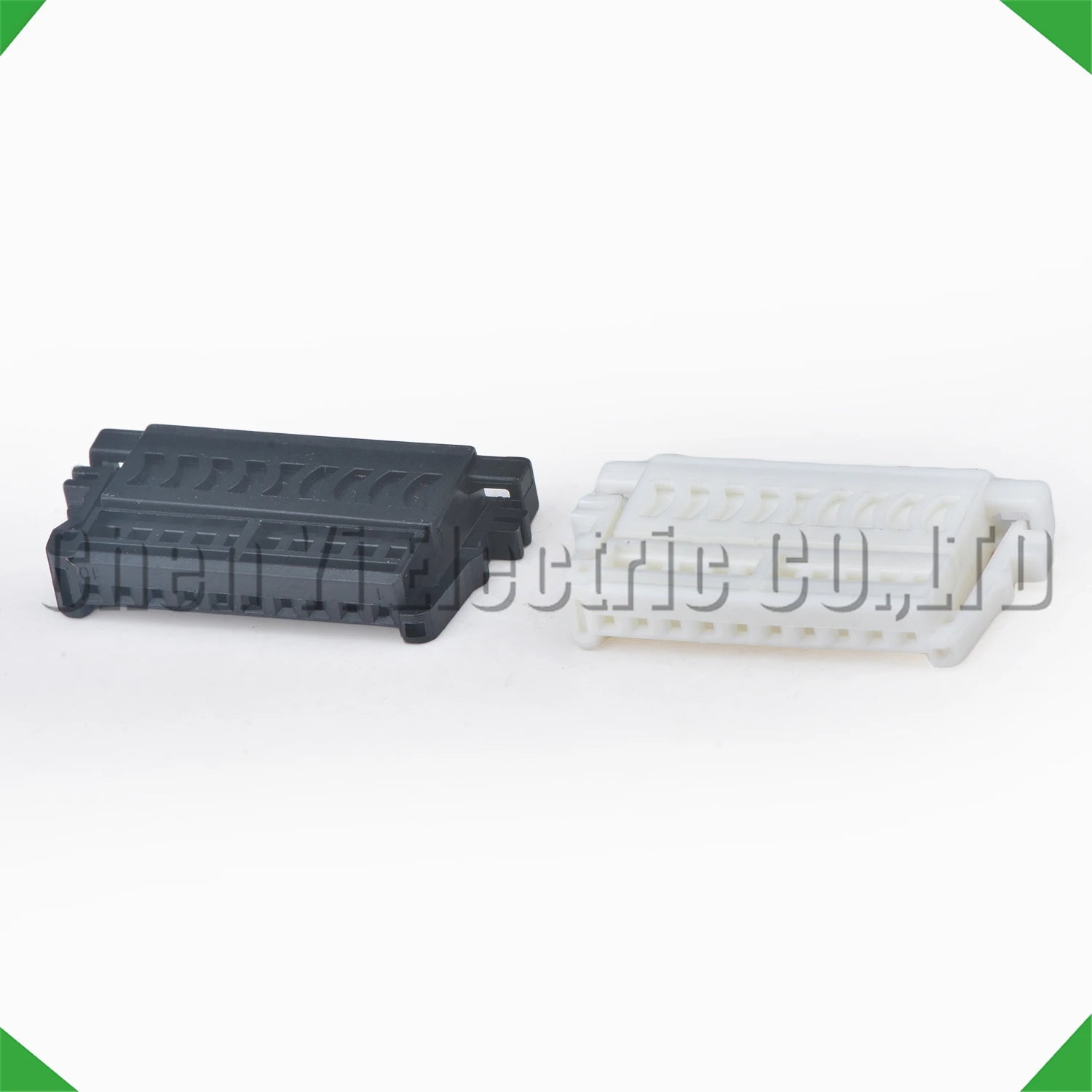

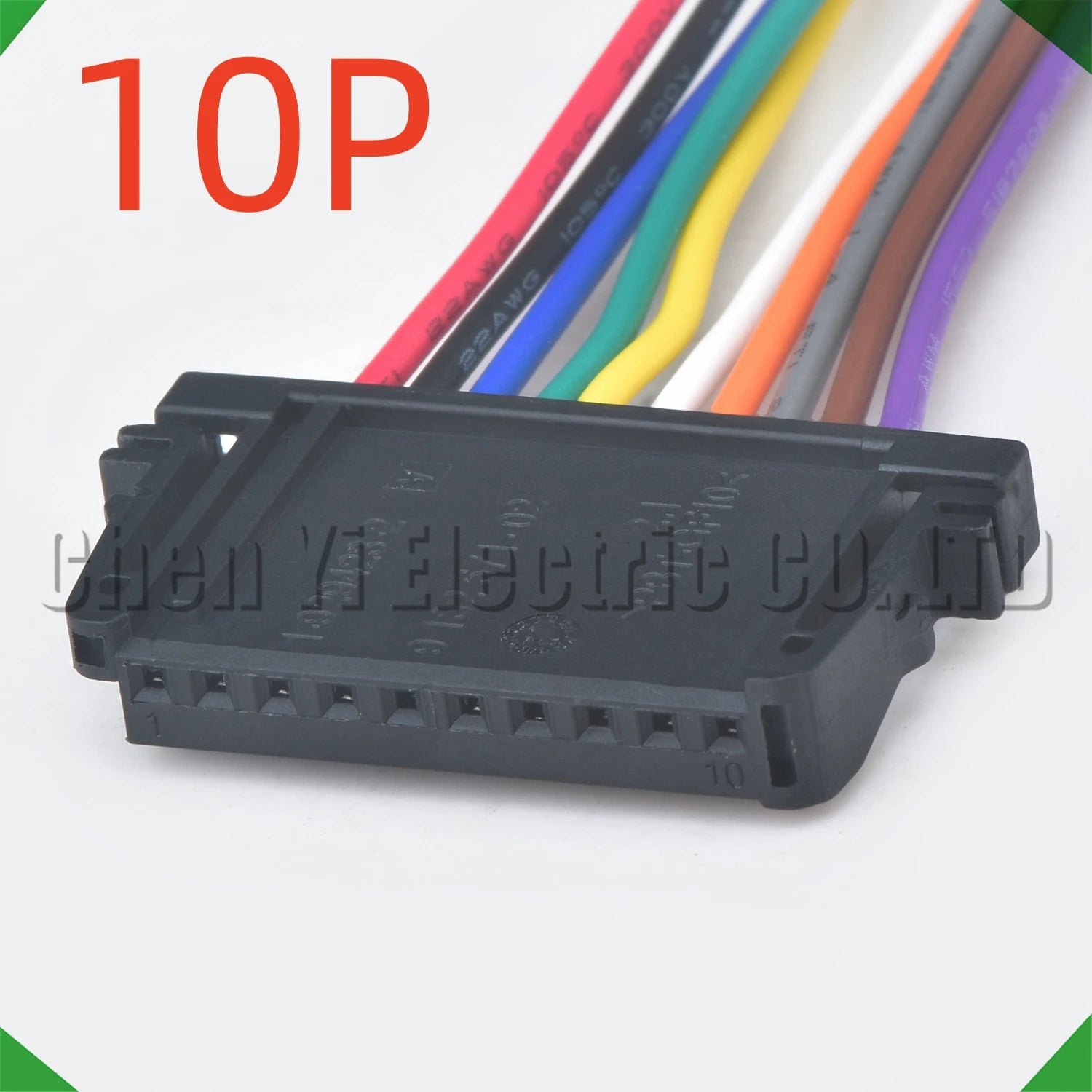

The OEM 9132571-02 is a 10-pin female connector used in BMW tail light assembly and reverse camera harnesses. Available in Black and White housing colors to match different OEM tail light harness positions. The 10-pin configuration integrates stop light, turn signal, reverse light, tail/position light, LED driver, reverse camera trigger, and module communication circuits. Available bare or with 15cm pre-wired leads.

Key Specifications

Why BMW Tail Light Connectors Fail

BMW tail light connectors are exposed to road spray, moisture, vibration, and thermal cycling from LED light assemblies. Terminal corrosion or housing damage causes brake light failures, turn signal faults, reverse light malfunctions, or reverse camera trigger signal loss. These are safety-critical faults that trigger B-code fault codes on BMW ISTA diagnostic systems. Replacing the connector restores full tail light and reverse camera circuit integrity.

Variant Guide

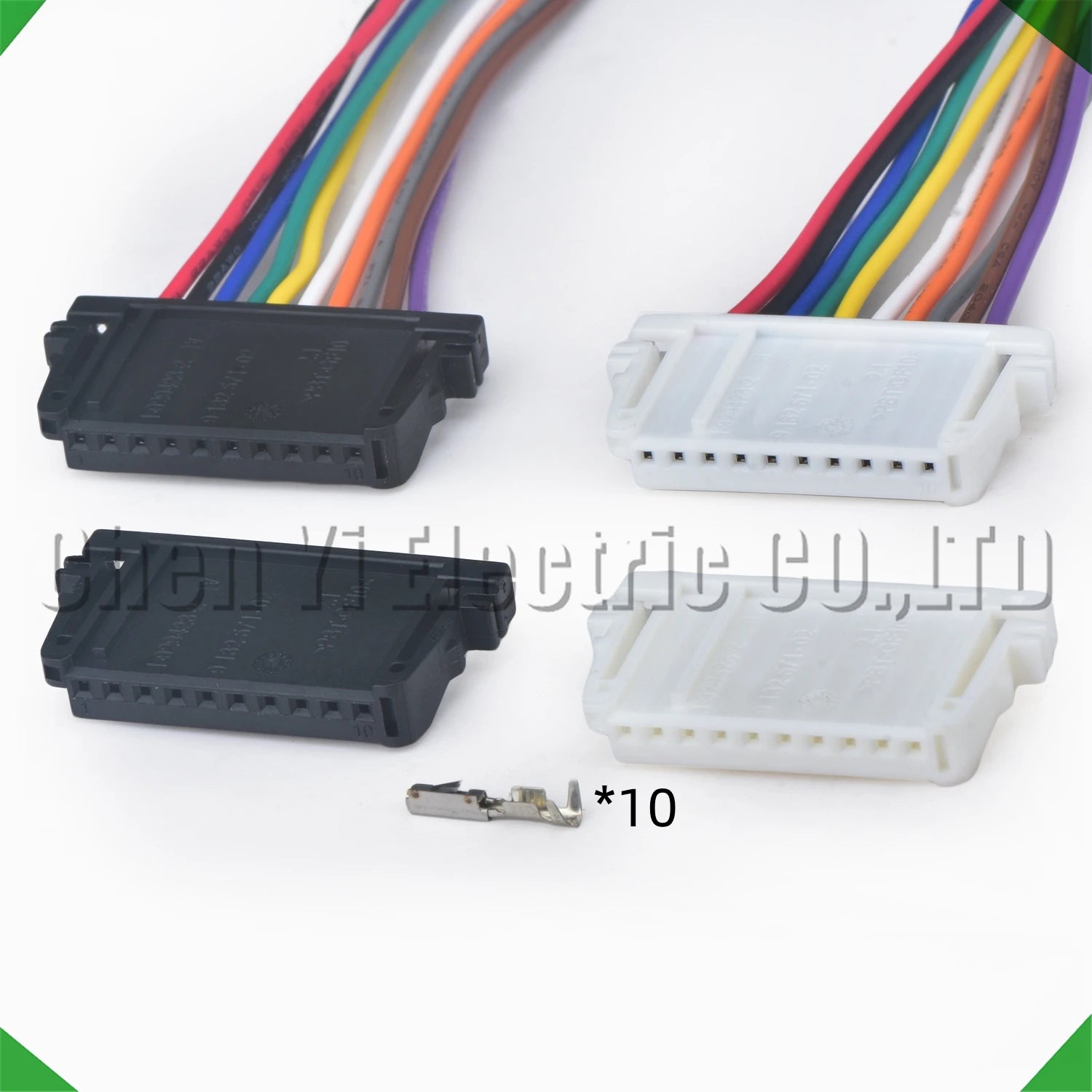

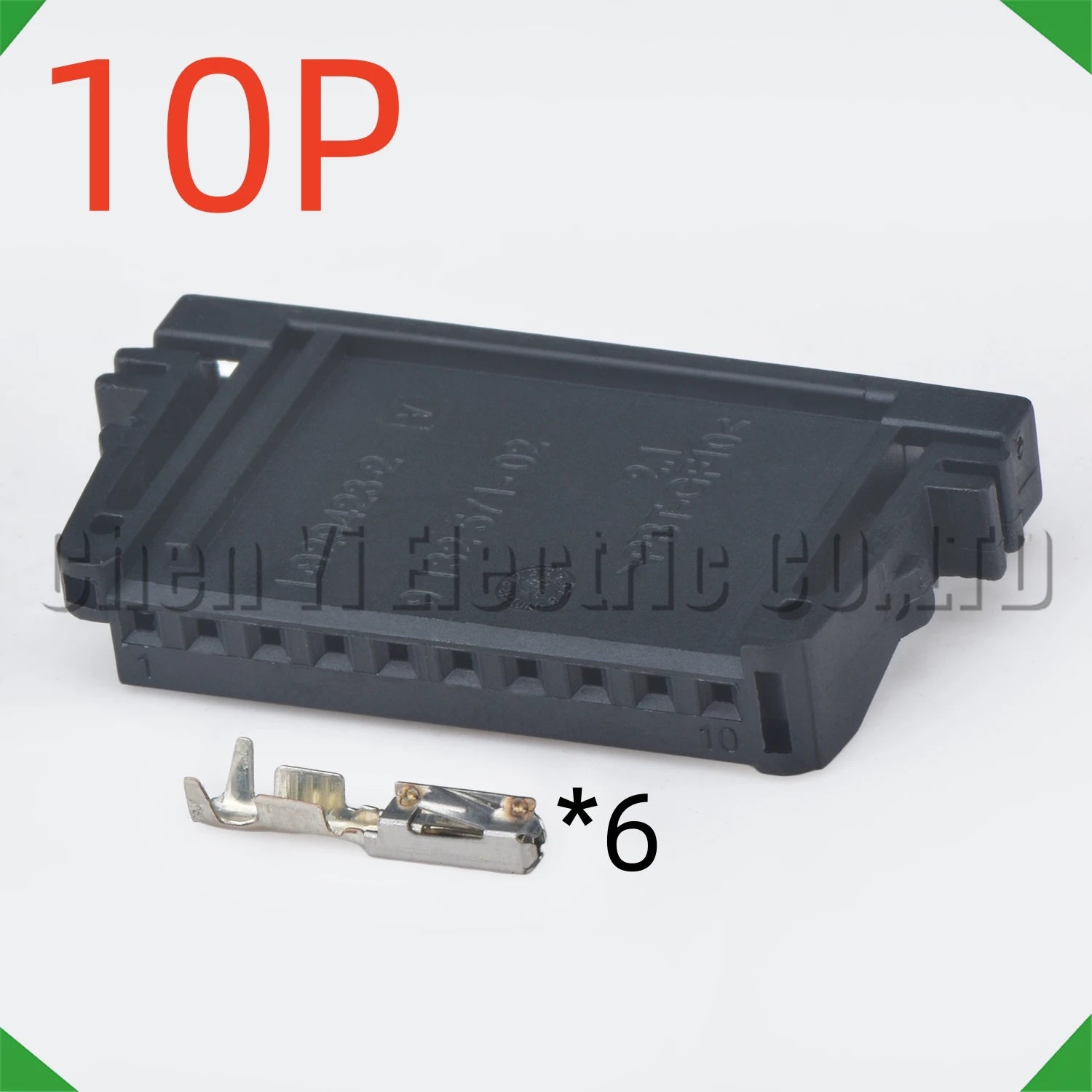

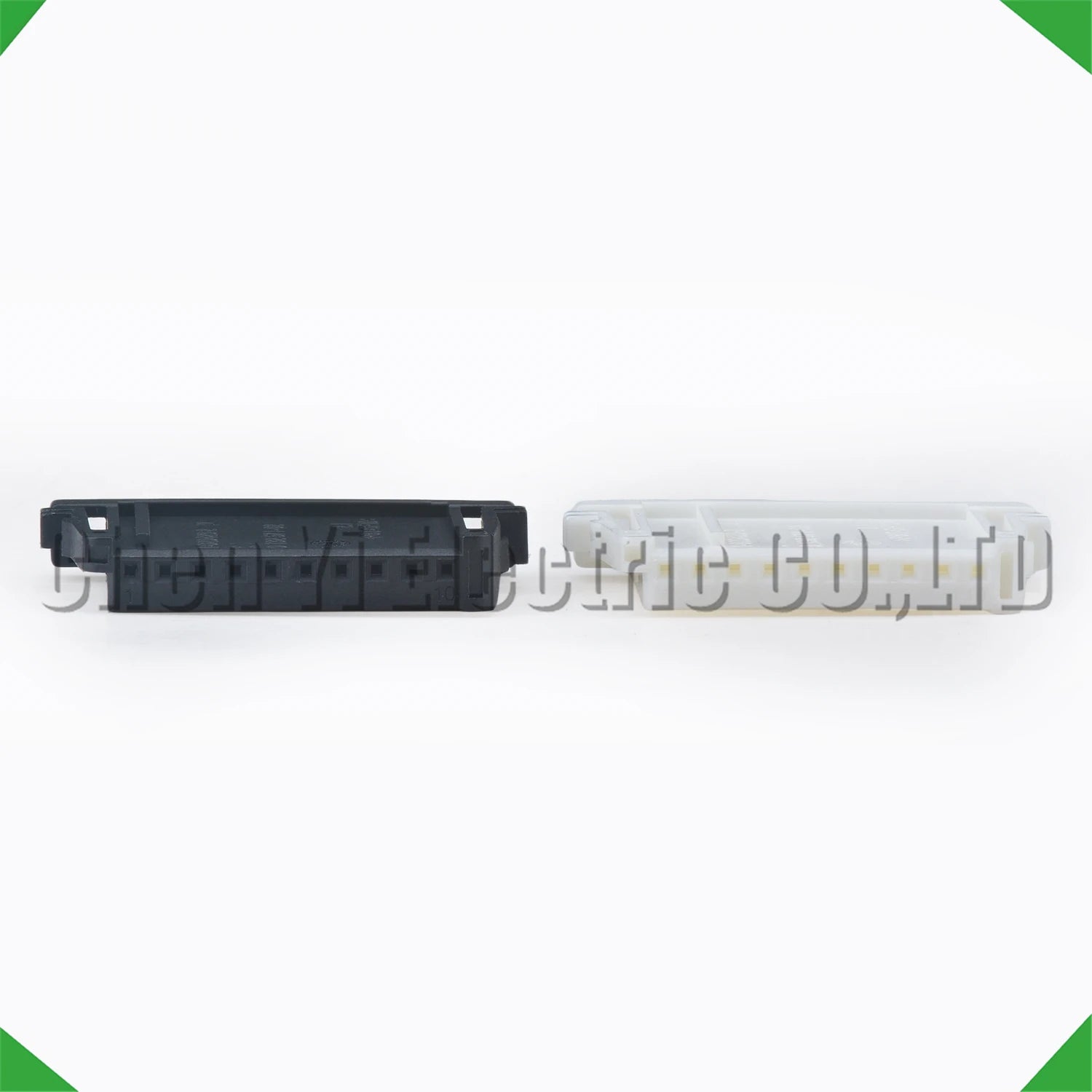

• Black Female / Black Female 15CM – Black housing for specific tail light harness position
• White Female / White Female 15CM – White housing for alternate tail light harness position

Select the color matching your OEM BMW tail light harness connector.

Installation Steps

1. Disconnect the vehicle battery
2. Remove the tail light assembly to access the harness connector
3. Release the locking tab and unplug the original 10-pin connector
4. Transfer terminals to the new housing or splice in the pre-wired variant
5. Reinstall the tail light and verify all functions (brake, turn, reverse, position, camera)

Frequently Asked Questions

Q: What BMW models use OEM 9132571-02?
A: This connector is used on BMW 3 Series (G20), 5 Series (G30), X3 (G01), X5 (G05), and 7 Series (G11/G12) tail light and reverse camera harnesses. Cross-reference your vehicle’s wiring diagram to confirm fitment.

Q: What fault codes indicate a tail light connector issue?
A: Common codes include B-codes for brake light circuit faults, turn signal open circuit, LED module communication errors, and reverse camera trigger faults on BMW ISTA diagnostic systems.

Q: Are terminals included?
A: Yes, terminals are included with all variants.

Compatible Applications

• BMW 3 Series G20 / 5 Series G30 – Tail light harness (OEM 9132571-02)
• BMW X3 G01 / X5 G05 – Tail light and reverse camera connector
• BMW 7 Series G11 / G12 – Rear light assembly harness
