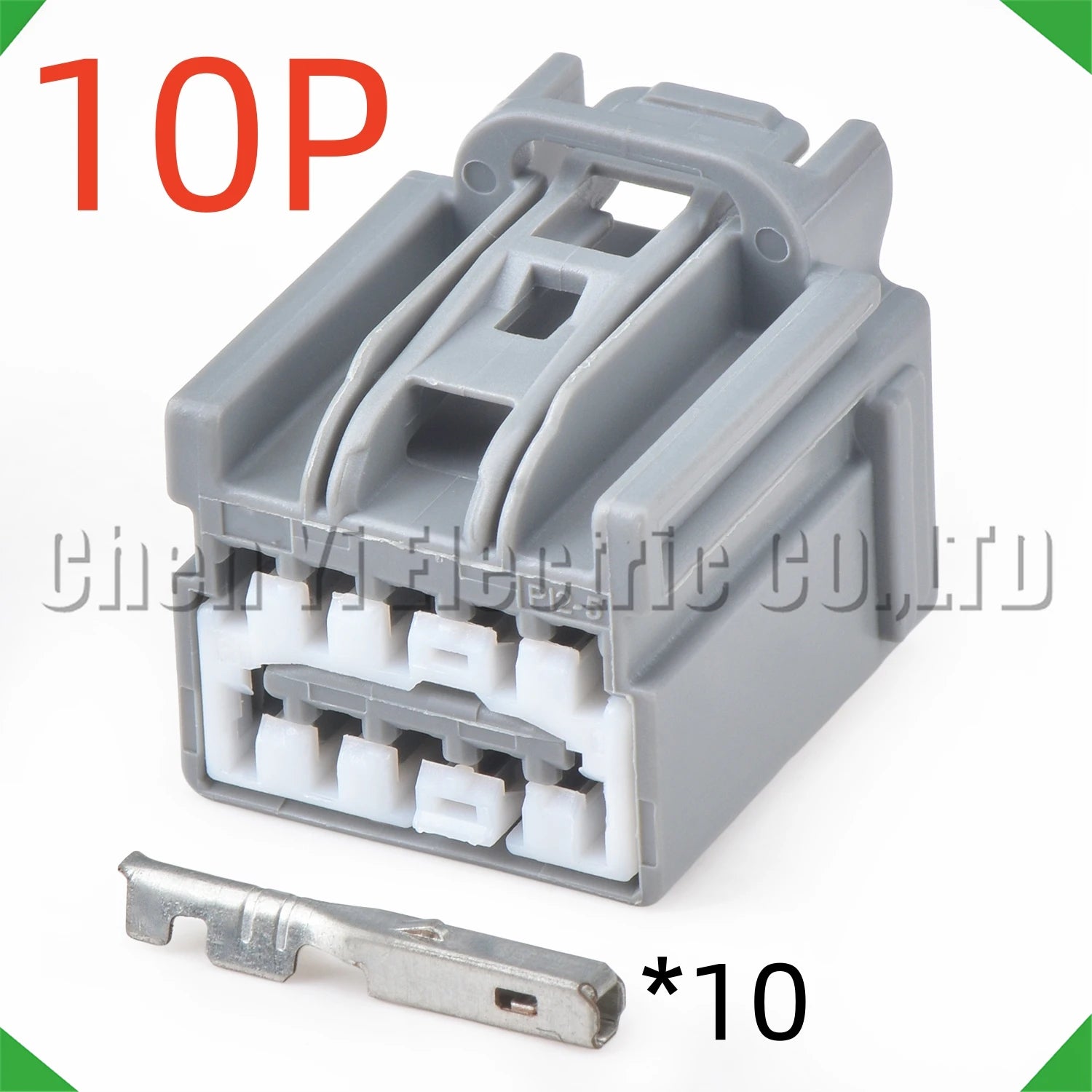

10-Pin Dash Cam & Rearview Mirror Connector | Male & Female OEM
Integrated dash cameras and smart rearview mirrors are increasingly factory-fitted on modern vehicles, requiring dedicated multi-pin connectors to carry video signal, power, GPS, microphone, and CAN bus circuits. This 10-pin connector is used in factory-integrated dash cam and smart rearview mirror harnesses, integrating all camera and mirror circuits through a single connection. Available in Male and Female variants, bare or with 15cm pre-wired leads.
| Attribute | Detail |
|---|---|
| Pin Count | 10-Pin |
| Gender Options | Male / Female |
| Housing Material | Nylon (PA66) |

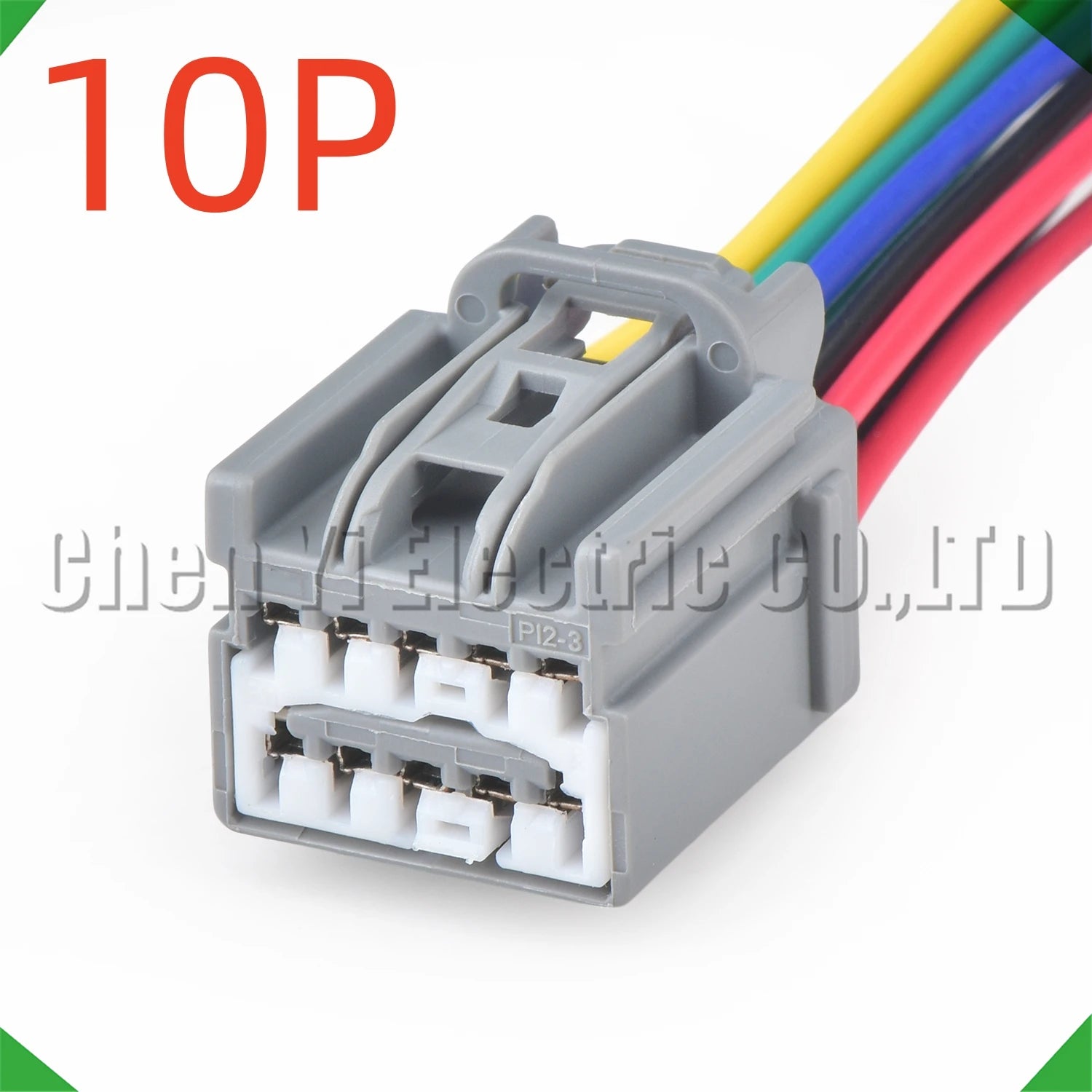

| Wire Option | Bare connector / 15cm pre-wired leads |
| Application | Factory dash cam, smart rearview mirror harness |
A factory-integrated dash cam or smart rearview mirror requires significantly more circuits than a simple camera – hence the 10-pin connector. Typical circuit allocation includes: front camera video signal, rear camera video signal, GPS antenna, microphone, speaker, ACC power (+12V ignition-switched), constant power (+12V for parking mode recording), ground, CAN bus high, and CAN bus low. The CAN bus circuits allow the dash cam or mirror to receive vehicle speed, turn signal, and reverse gear signals for automatic recording triggers and display overlays.
Q: What fault codes indicate a failed dash cam or mirror connector?
A: Common symptoms include dash cam not recording, GPS signal loss, rearview mirror display blackout, and U-codes for camera module communication faults on compatible diagnostic systems.
Q: Can this connector be used for aftermarket dash cam installation?
A: This connector is designed for factory-integrated dash cam and mirror harnesses. For aftermarket installations, verify the pin layout matches your specific harness before use.
Q: Are terminals included?
A: Yes, terminals are included with all variants.
