10-Pin Automatic Transmission Gearbox Wiring Connector – Female OEM

This 10-pin female connector is used in automatic transmission gearbox wiring harnesses. The 10-pin configuration integrates TCM power, ground, CAN bus, solenoid control, and speed sensor circuits for the automatic transmission control system. Available bare or with 15cm pre-wired leads.

Key Specifications

Why Transmission Connectors Fail

Automatic transmission harness connectors are exposed to ATF contamination, thermal cycling, and vibration from the gearbox. Terminal corrosion or fluid ingress causes harsh shifting, transmission slipping, limp mode, or P0700-series fault codes. Replacing the connector restores clean TCM signal paths and eliminates phantom transmission faults.

Variant Guide

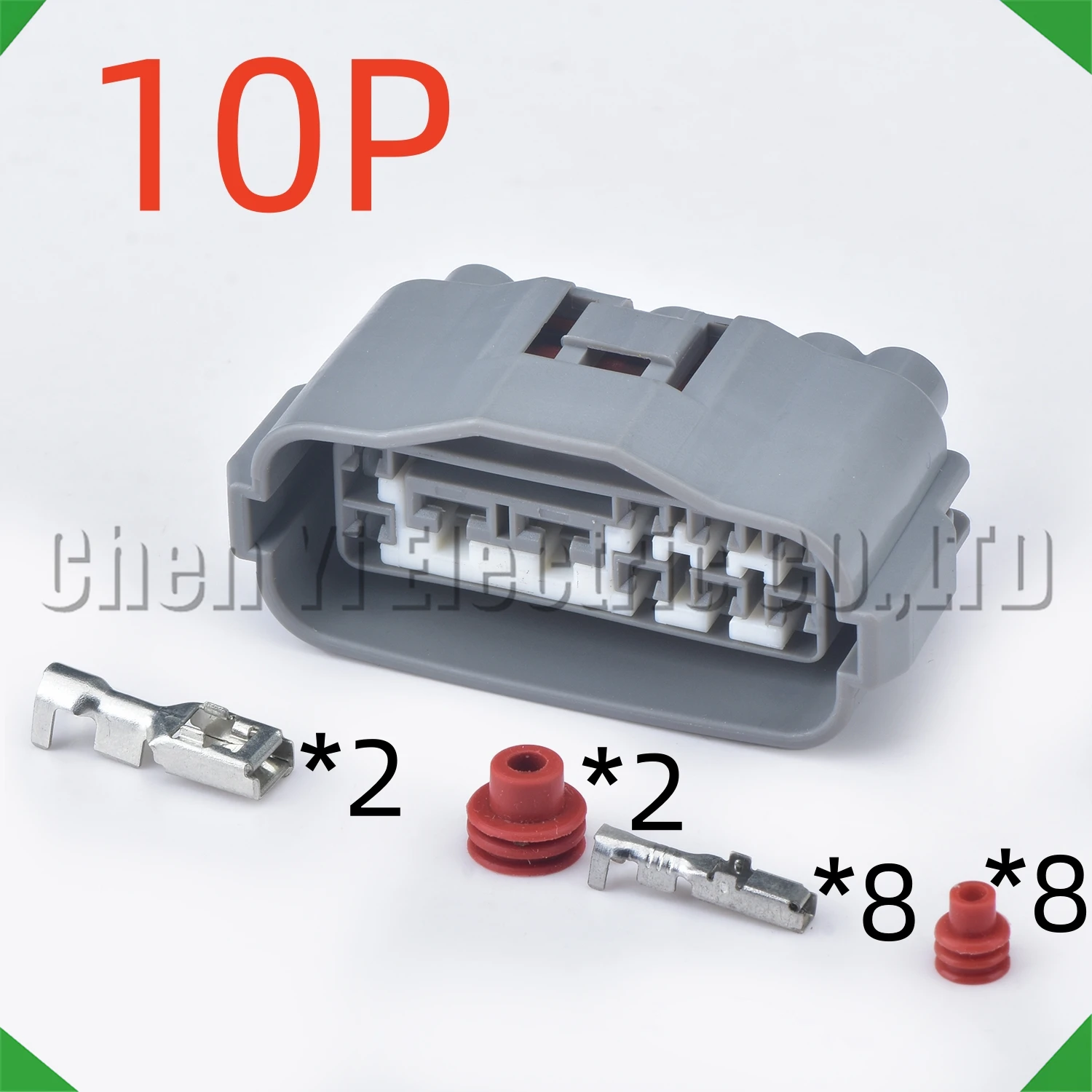

• Female – Bare 10-pin housing with terminals

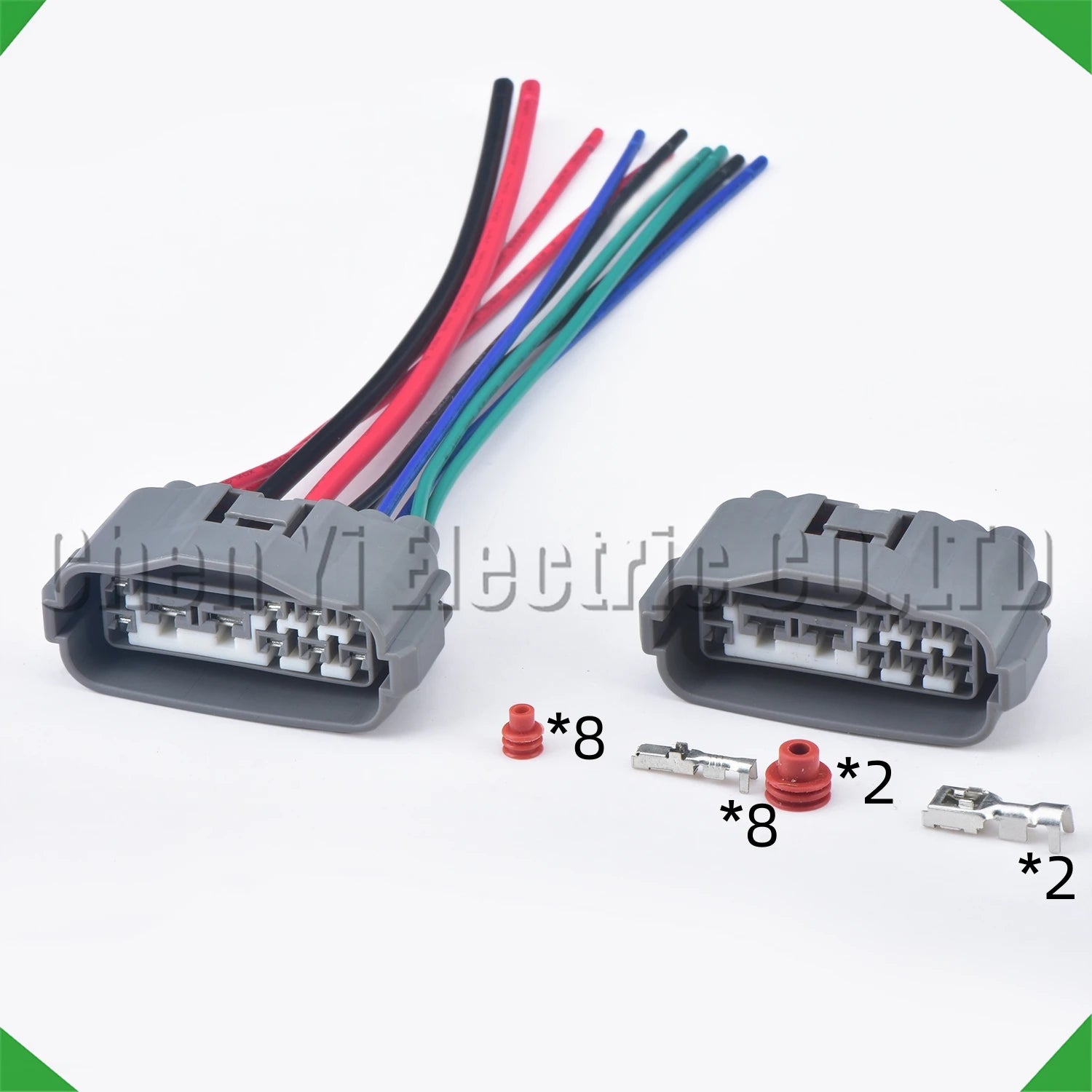

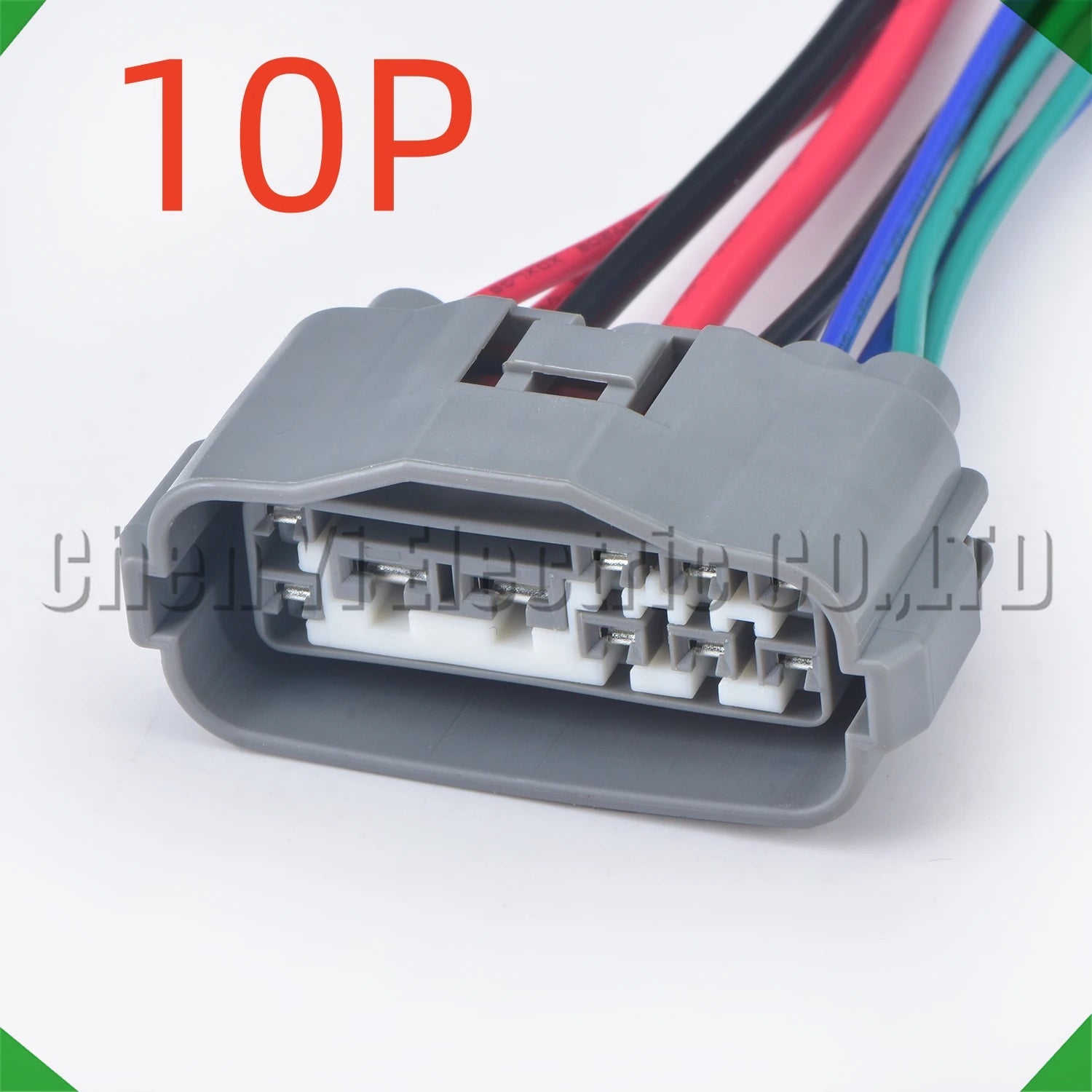

• Female 15CM – Pre-wired with 15cm leads for direct splice-in installation

Installation Steps

1. Disconnect the vehicle battery
2. Access the transmission connector (may require partial transmission removal)
3. Use a terminal extraction tool to remove terminals from the original housing
4. Transfer terminals to the new housing maintaining exact pin positions
5. Reconnect and clear transmission fault codes with a compatible scan tool
6. Perform a transmission adaptation reset if required

Frequently Asked Questions

Q: What fault codes indicate a failed transmission connector?
A: Common codes include P0700 (TCM malfunction), P0715–P0720 (speed sensor faults), P0730–P0736 (incorrect gear ratio), and U0101 (lost communication with TCM).

Q: Are terminals included?
A: Yes, terminals are included with all variants.

Compatible Applications

• Automatic transmission gearbox wiring harness repair
• TCM and solenoid circuit connector replacement
• Universal 10-pin automatic transmission harness applications
