SPECIFICATIONS

Note:
Color maybe slightly different due to different monitor.

The above size is measured by hand, please allow slightly difference. Thanks !

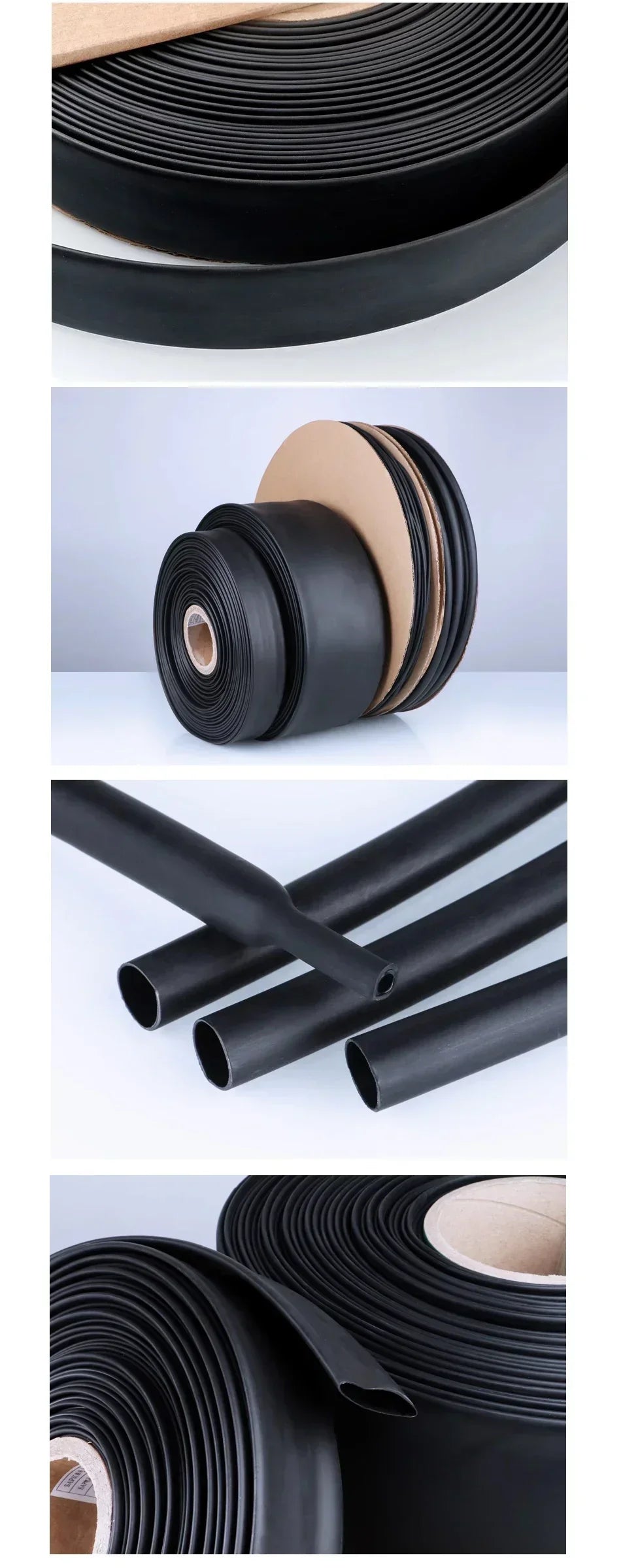

Product:Heat Shrink Tube With Glue

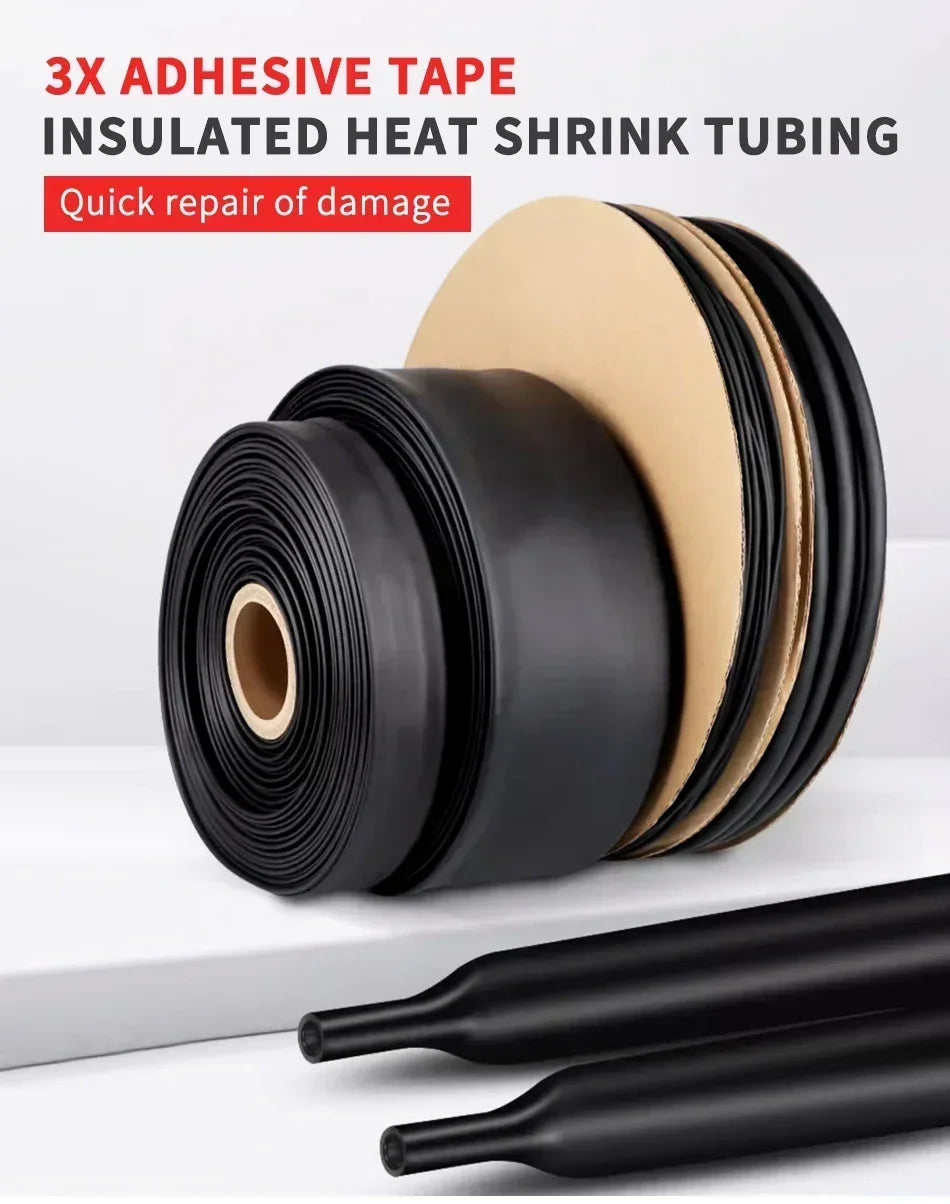

HEAT ACTIVATED ADHESIVE

Features:
* Creates a waterproof seal

* Greater tensile strength

* Resistant to stretch and vibration

* Zero halogen, polyolefin cross linking

*Flame retardant

*Low smoke generation if burning

Sealed waterproof, strain buffer, outer layer self-extinguishing,

excellent flame retardanteffect (except transparent color),

comply with European rohs and other environmentarequirements.

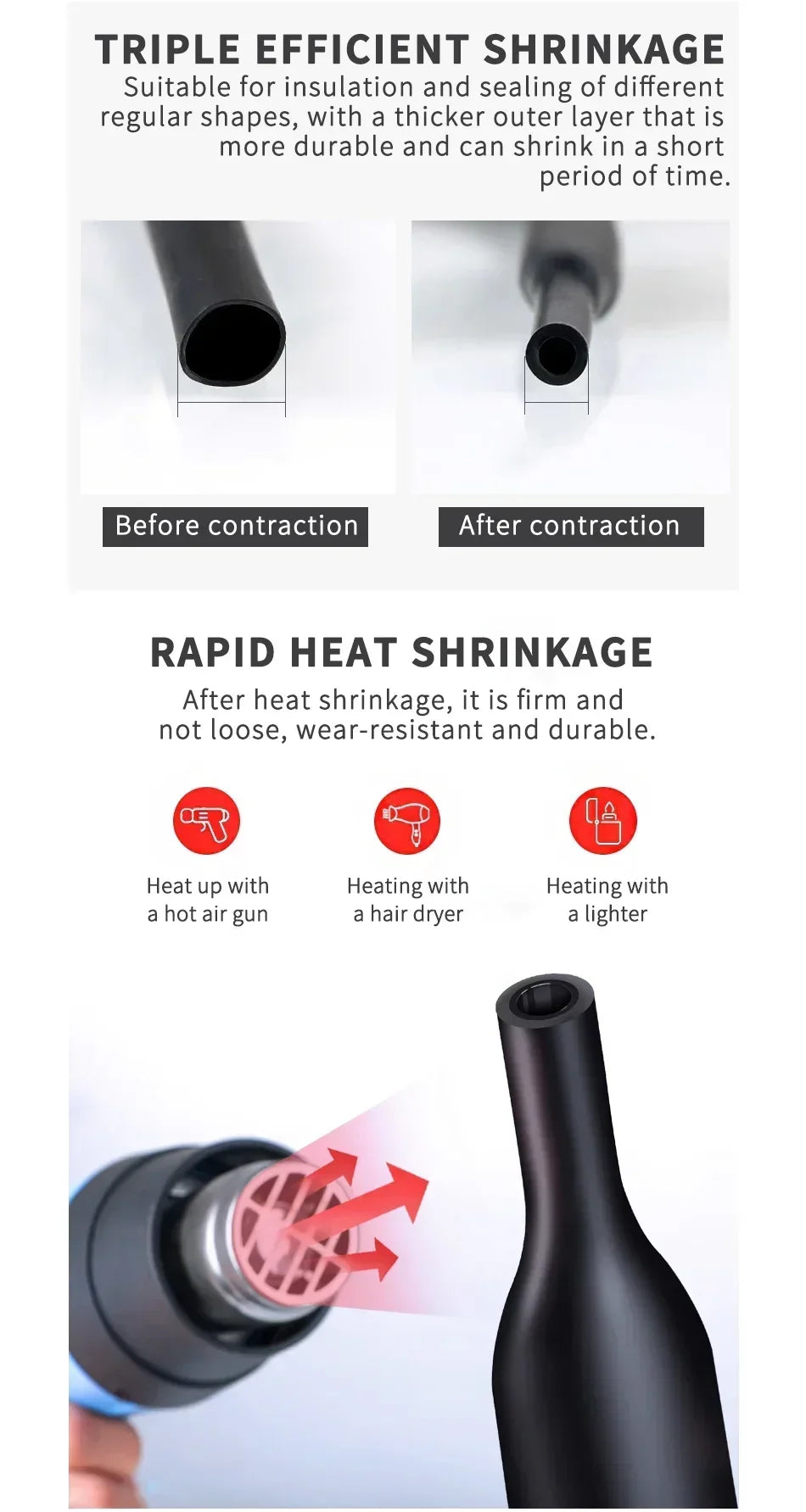

3:1 SHRINK RATIO
* Recovers to 1/3 of its original diameter

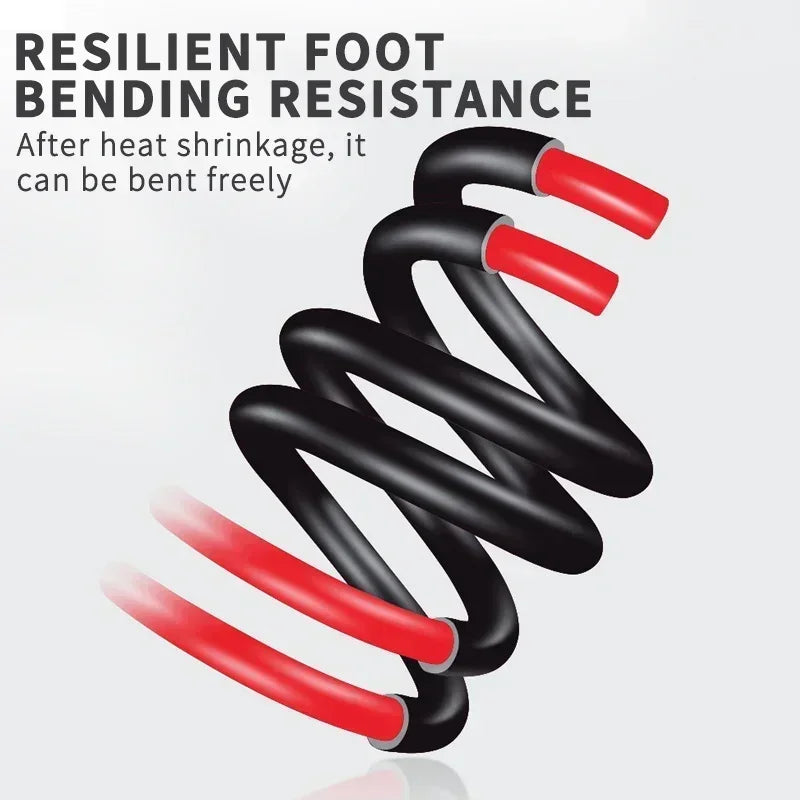

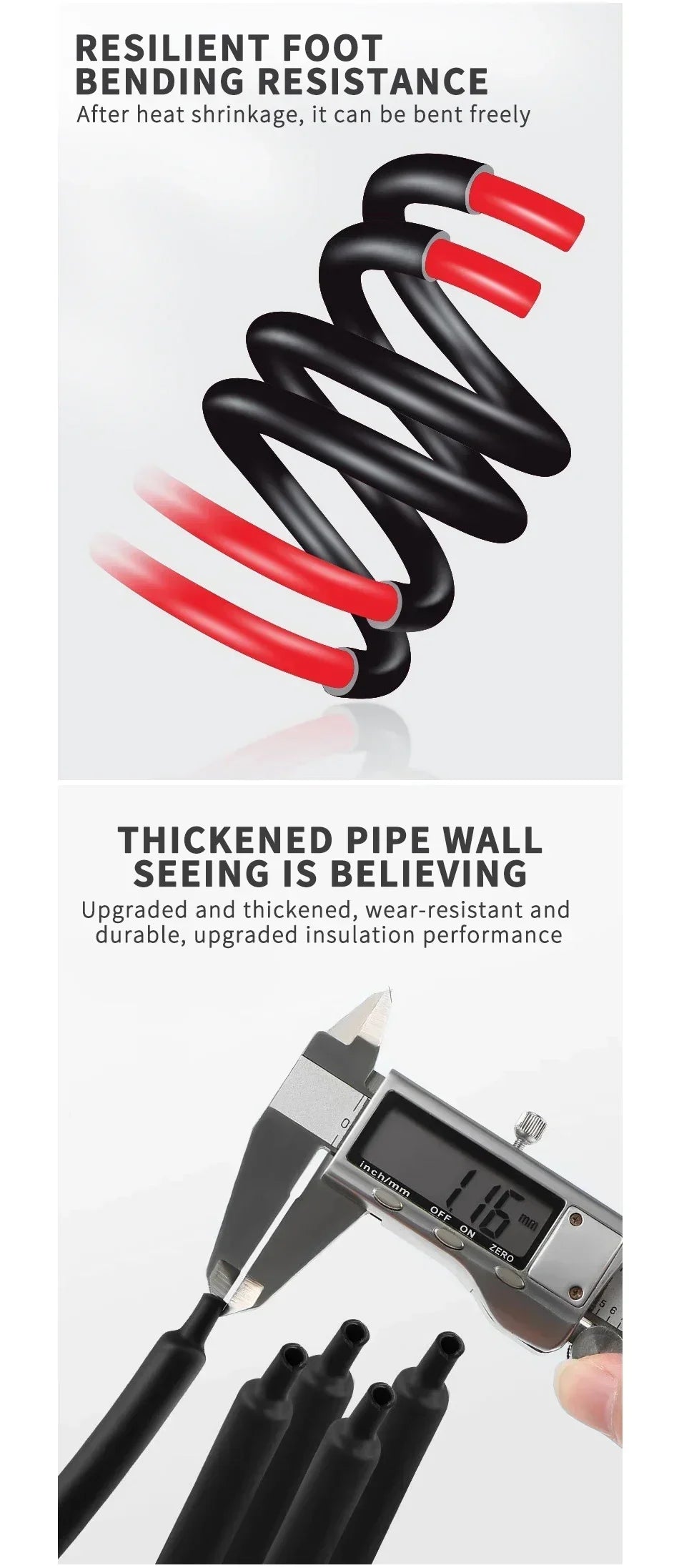

* Stays flexible

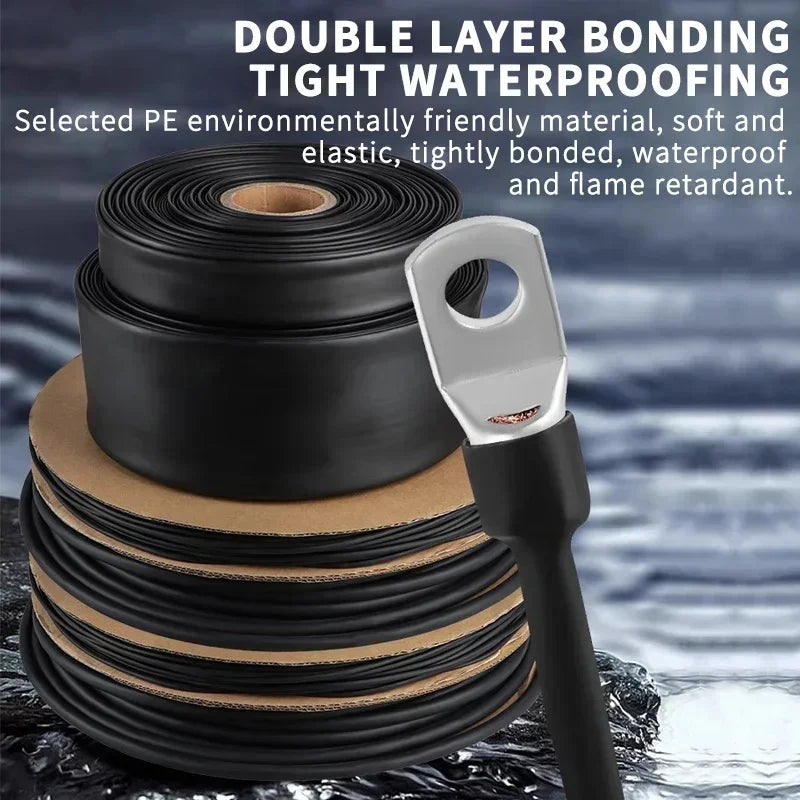

WATERPROOF

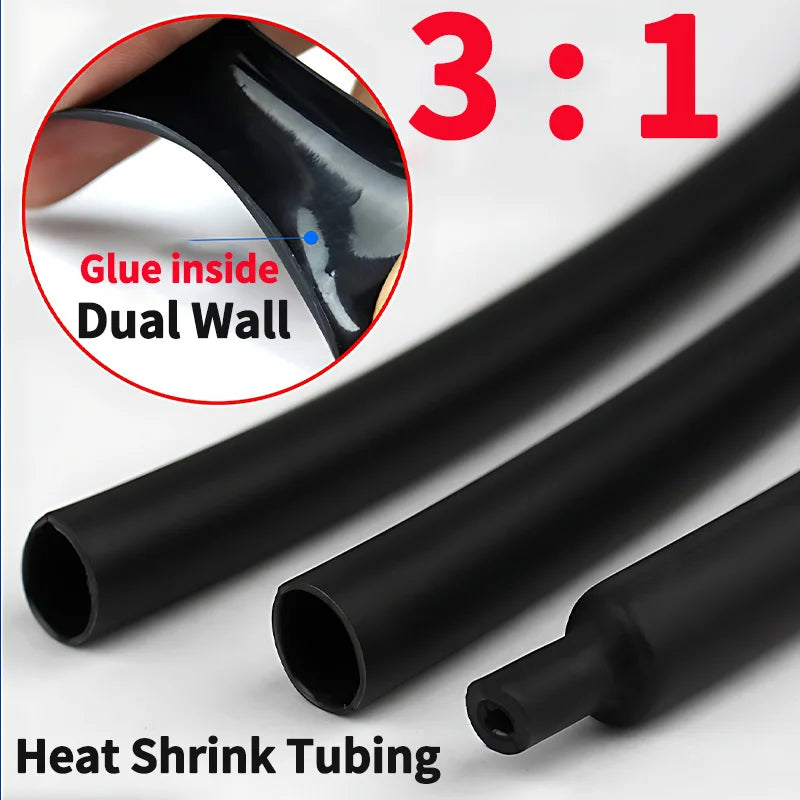

*Double wall IP68

* Connection is sealed from the elements

* Protection against wire corrosion

* Can be submerged under water

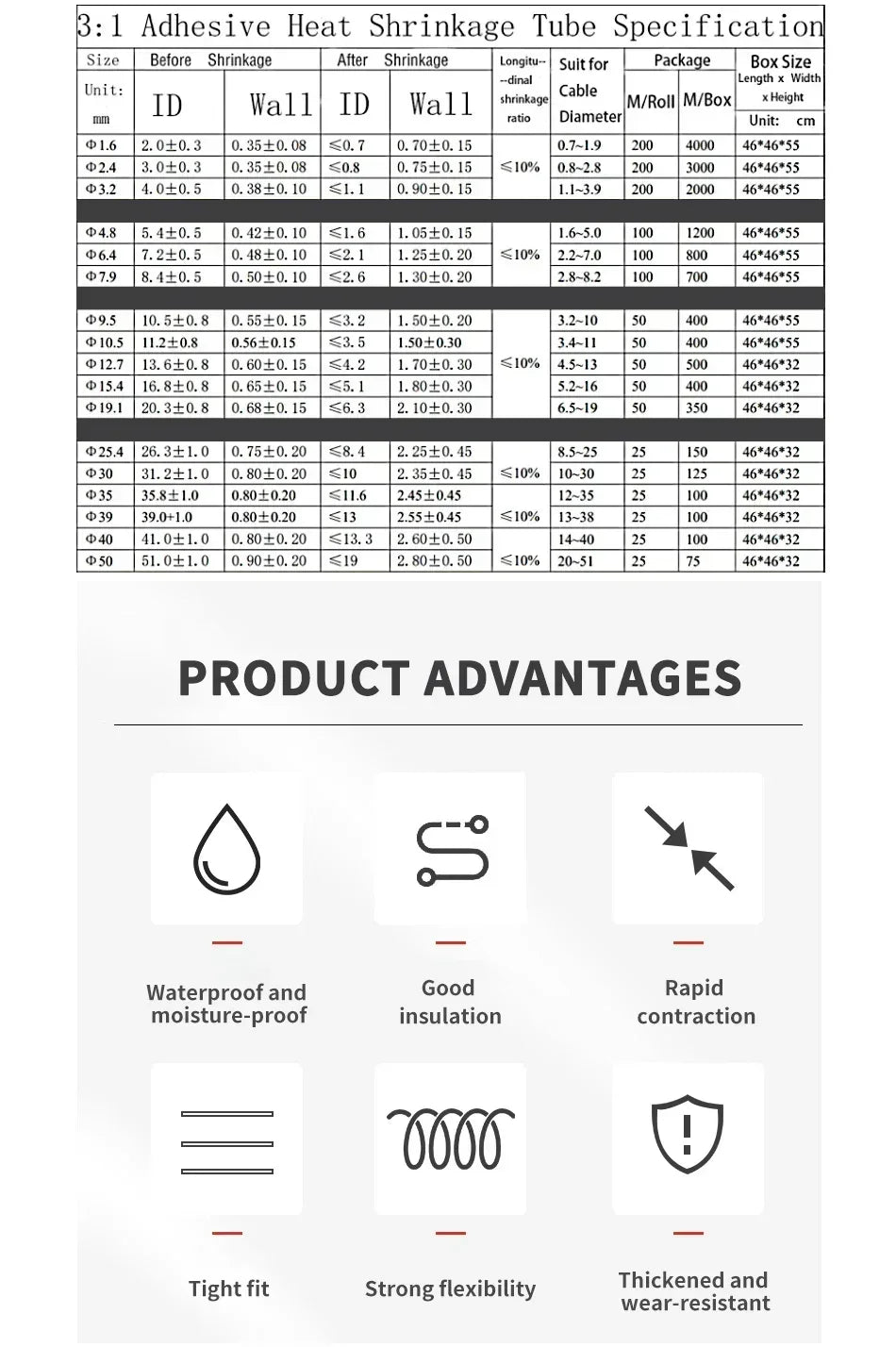

Specification:
Product Name: Heat Shrinkable Sleeve

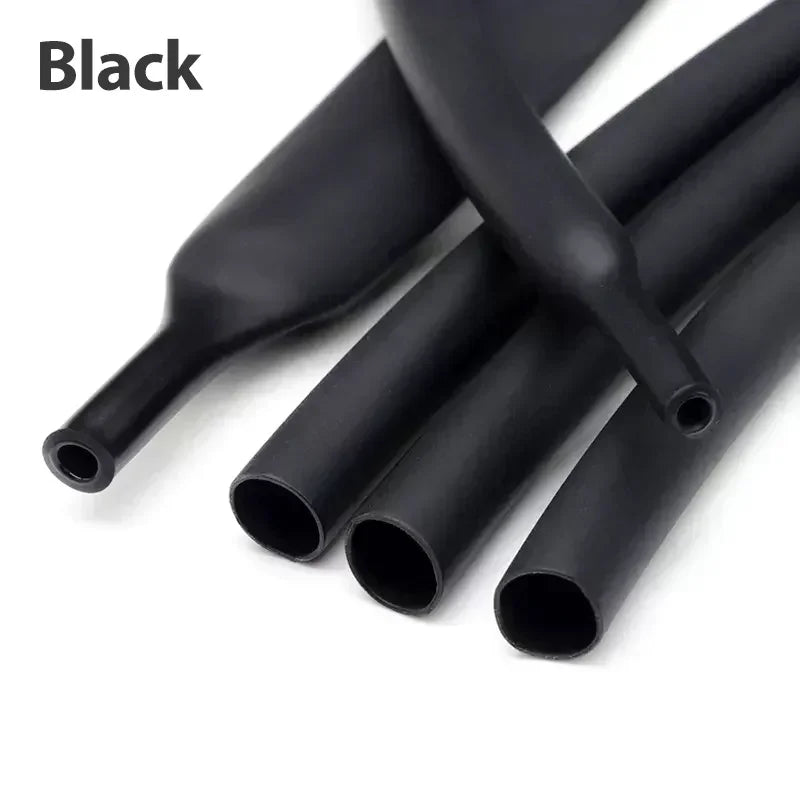

Color: Black

Length:10/50/100/200meters

Heat shrink ratio: 3:1(will maximum shrink to 1/3 its supplied diameter)

Material: Polyolefin

Operation Temperation: -55℃ to +125℃

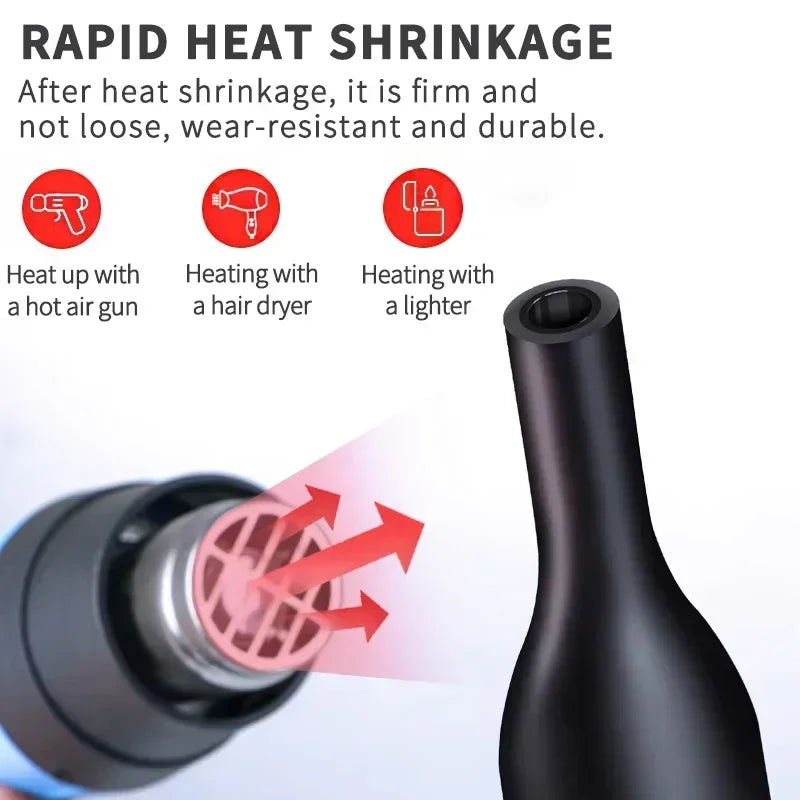

Minimum shrink temperature: 70°C

Minimum fully recovery temperature: 125°C

Cadmium content: < 5 ppm

Lead content: < 10 ppm

Full Shrinkage Temp:230℉ maximum

Tensil strength: 10.4Mpa

Dielectric strength: 15 kV/mm

Rated Voltage: 600V

Pressure: 1(KV)

Flammability : VW-1

Feature:Durable/ Flexible

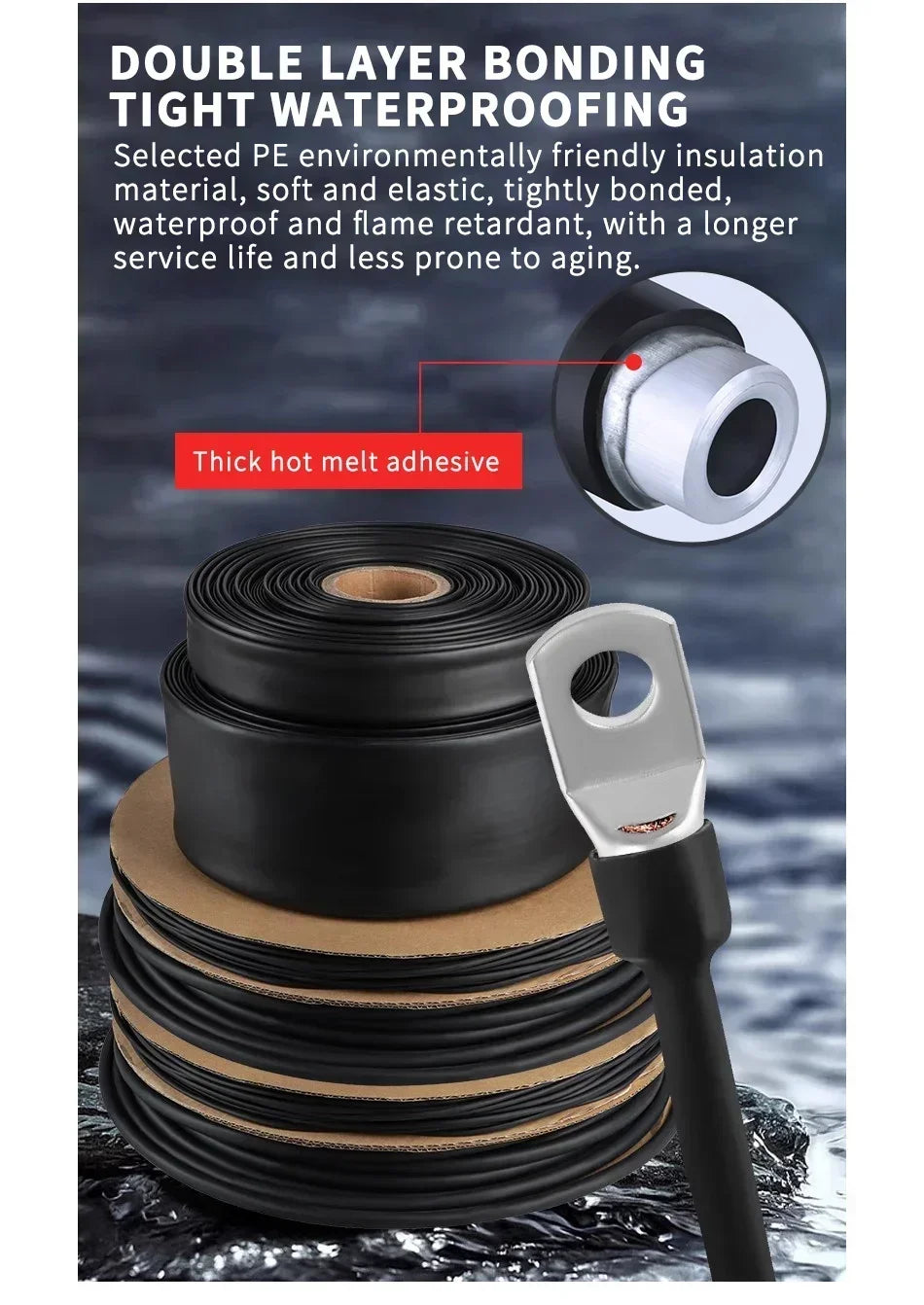

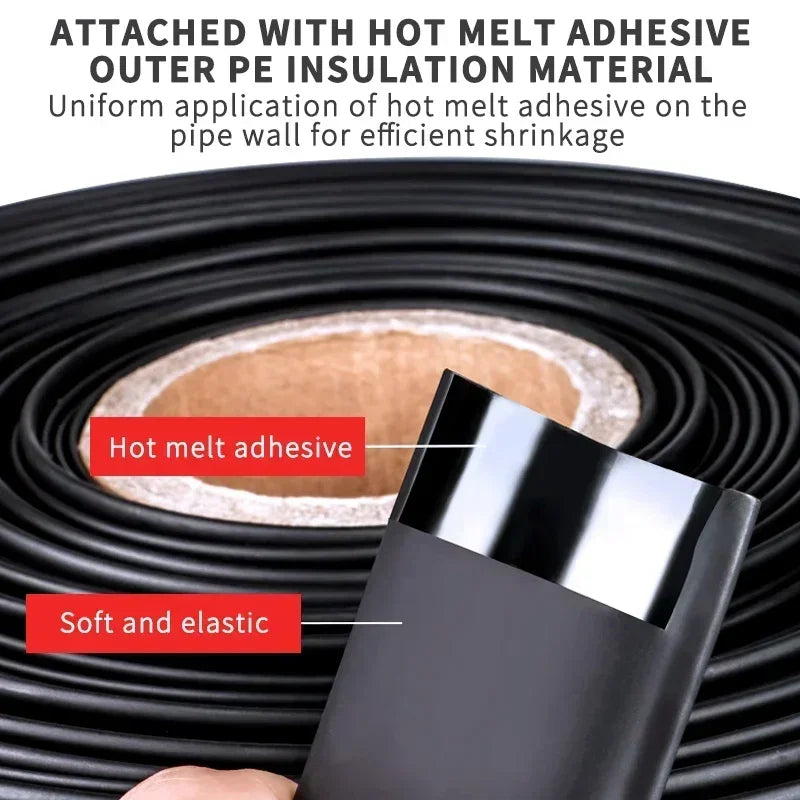

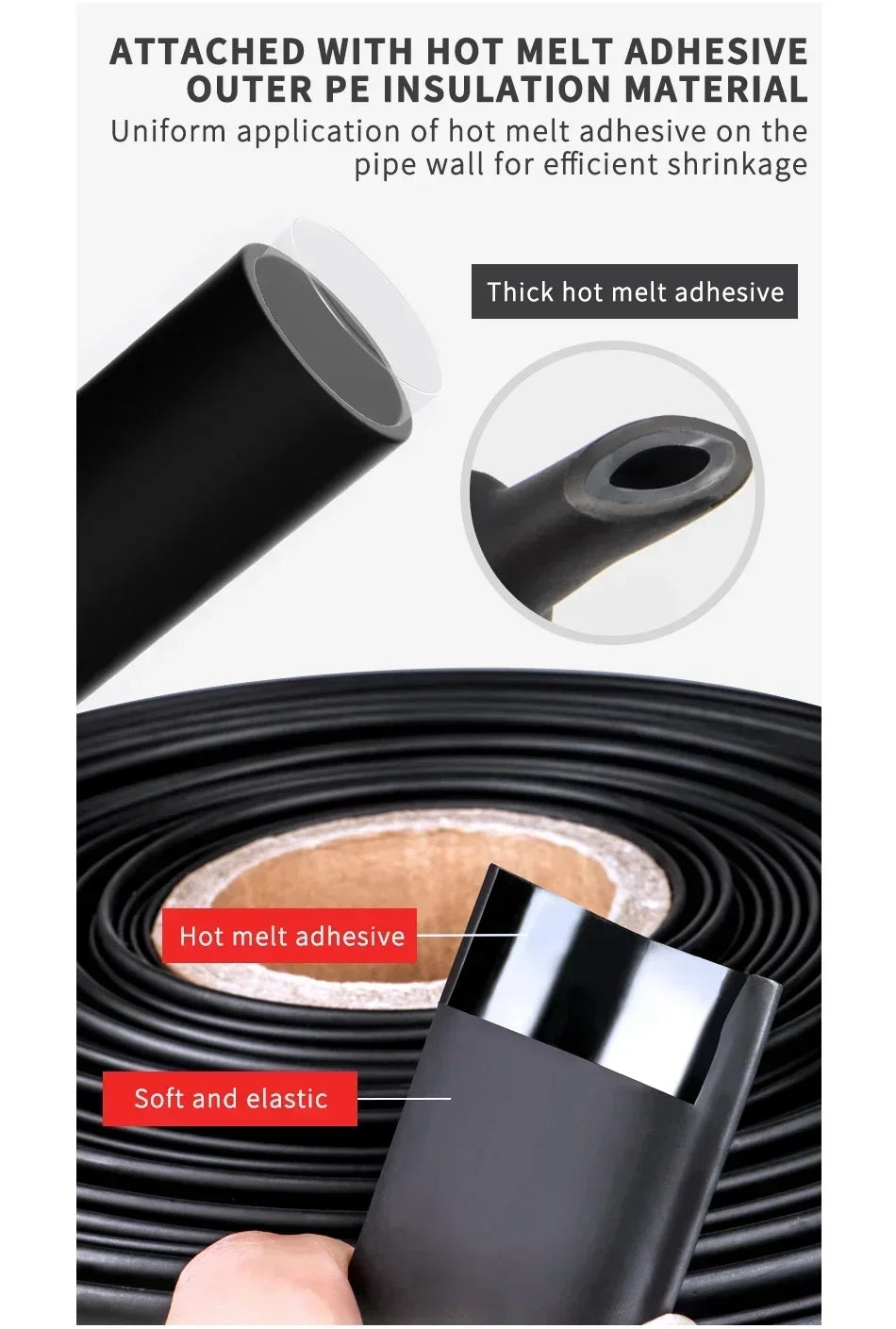

Adhesive: Hot Melt Adhesive Coated

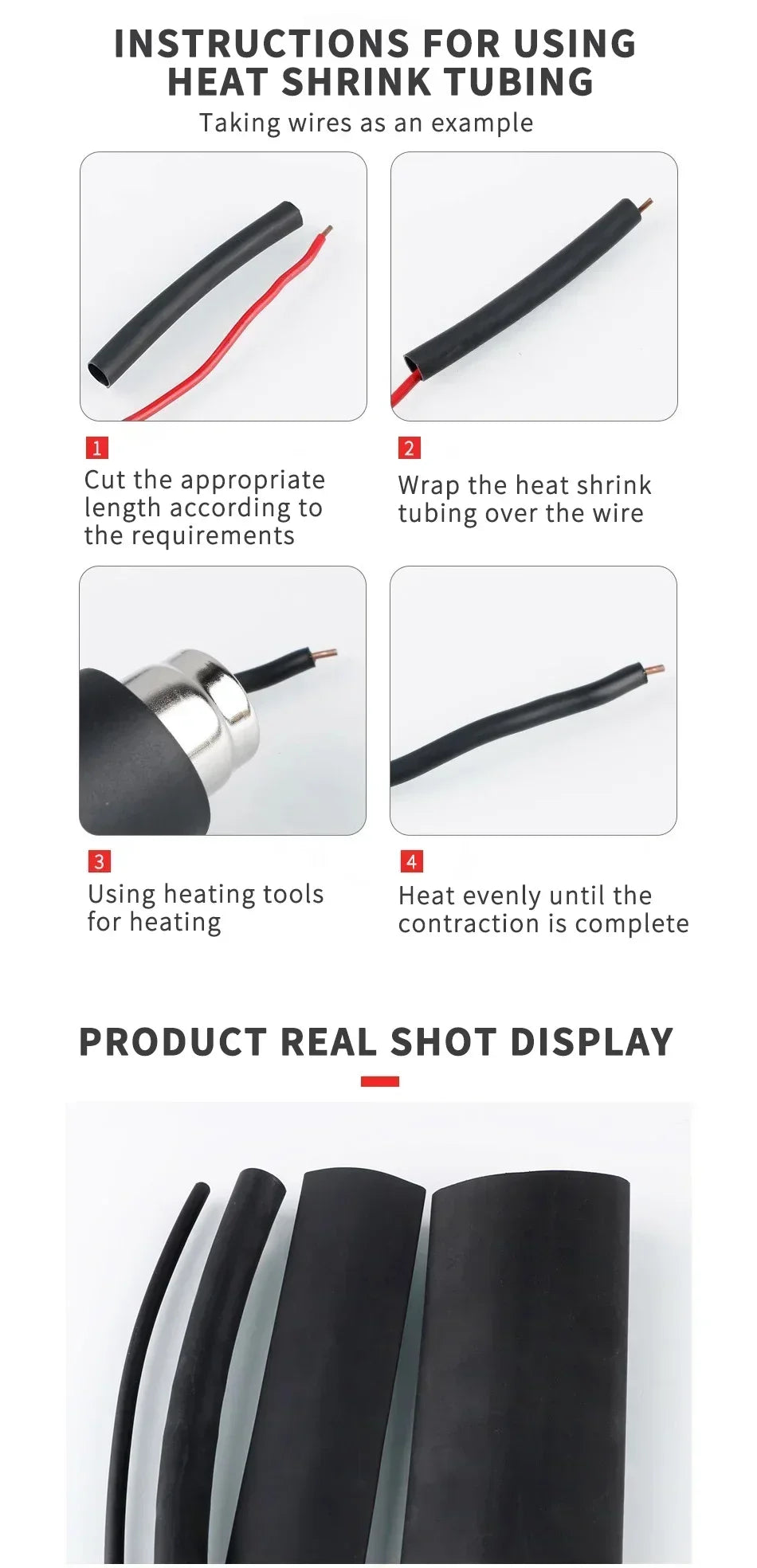

Cutting method: Scissors or sharp knife

Usage: Insulating and protecting for components,interconnections,terminals,wire harness,Machine tool,machine building,electric control system etc.

Area: Electronic equipment,Household appliances,machine building,communication
